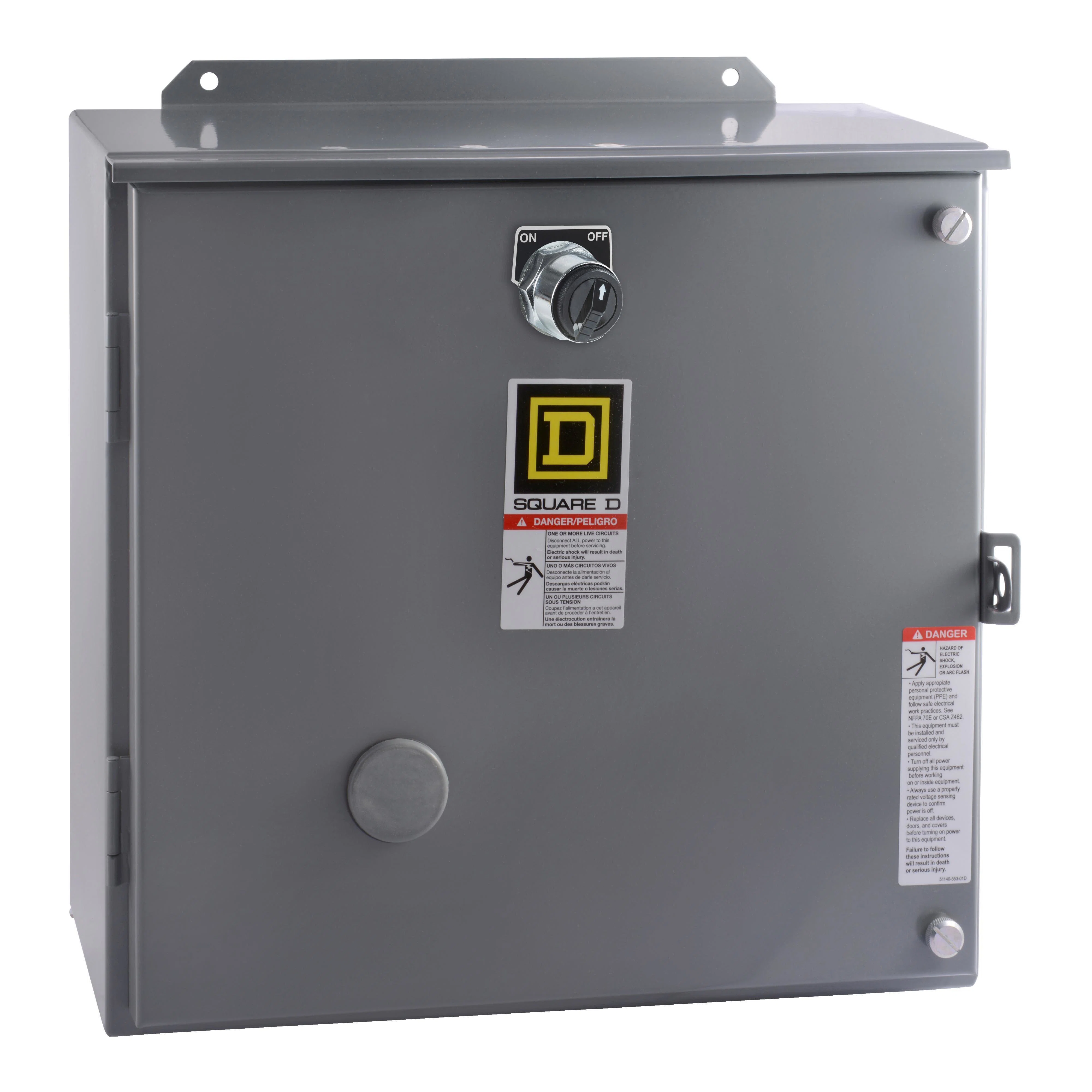

8903LA1000V81CFF4T Electrically Held Lighting Contactor, 120,480 V AC v coil, 10 poles
- MFR:
- Schneider Electric
- MFR #:
- 8903LA1000V81CFF4T
- Item #:
- 1441587
8903LA1000V81CFF4T Electrically Held Lighting Contactor, 120,480 V AC v coil, 10 poles
- MFR #:
- 8903LA1000V81CFF4T
- Item #:
- 1441587
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Square D™ 8903LA1000V81CFF4T, Electrically Held Lighting Contactor, 120,480 V AC Coil, 10 Pole, 60 Hz Frequency, 20 A Contact, Power Factor: 180 , No Indicator, Screw clamp Connection, 13.50 in H x 11.89 in W x 7.76 in D Size, Screw Clamp Terminal, NEMA 12 Enclosure, Steel, Painted, 13.50 in H x 11.89 in W x 7.76 in D Dimensions
Manuals and Documentation
Features
- 30 Amp ballast lighting rating, 20 Amp tungsten lighting rating
- Electrically and mechanically held
- 50-60 Hz rated
- 2 -12 pole versions
- Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
- Silver-Cadmium-Oxide double break contacts
- NEMA Type 1 General Purpose
- NEMA Type 1 Flush Mounting General Purpose with Plaster Adjustment
- NEMA Type 3R Rainproof Enclosure
- NEMA Type 4 & 4X Watertight Dust tight and Corrosion Resistant Glass-Polyester
- NEMA Type 4 & 4X Watertight, Dust-tight Brushed Stainless Steel
- NEMA Type 12 Dust-tight and Drip-tight for Industrial use
- Kits provided to add 30A power poles conveniently to existing Type L contactors when additional circuits are required
- Type L contactors are supplied with mounting bracket, so adder poles may be conveniently mounted from the front by a single captive screw
- Adder poles supplied with standard N.O. contacts which are convertible to N.C. for flexibility
- With toxic heavy metal free
- With pvc free
- Halogen free plastic parts product halogen content performance
| Manufacturer Part Number | 8903LA1000V81CFF4T |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Country Of Origin | MX |
| Dimensions | 13.50 in H x 11.89 in W x 7.76 in D |
| Enclosure Type | NEMA 12 |
| Finish | Painted |
| Material | Steel |
| Type | Electrically Held Lighting Contactor |
| Size | 13.50 in H x 11.89 in W x 7.76 in D |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | UL Listed | CSA | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Coil Voltage | 120,480 V AC |
| Connection Type | Screw clamp |
| Contact Rating | 20 A |
| Frequency Rating | 60 Hz |
| Indicator Type | No |
| Number Of Poles | 10 |
| Power Factor | 180 VA |
| Terminal Type | Screw Clamp |
