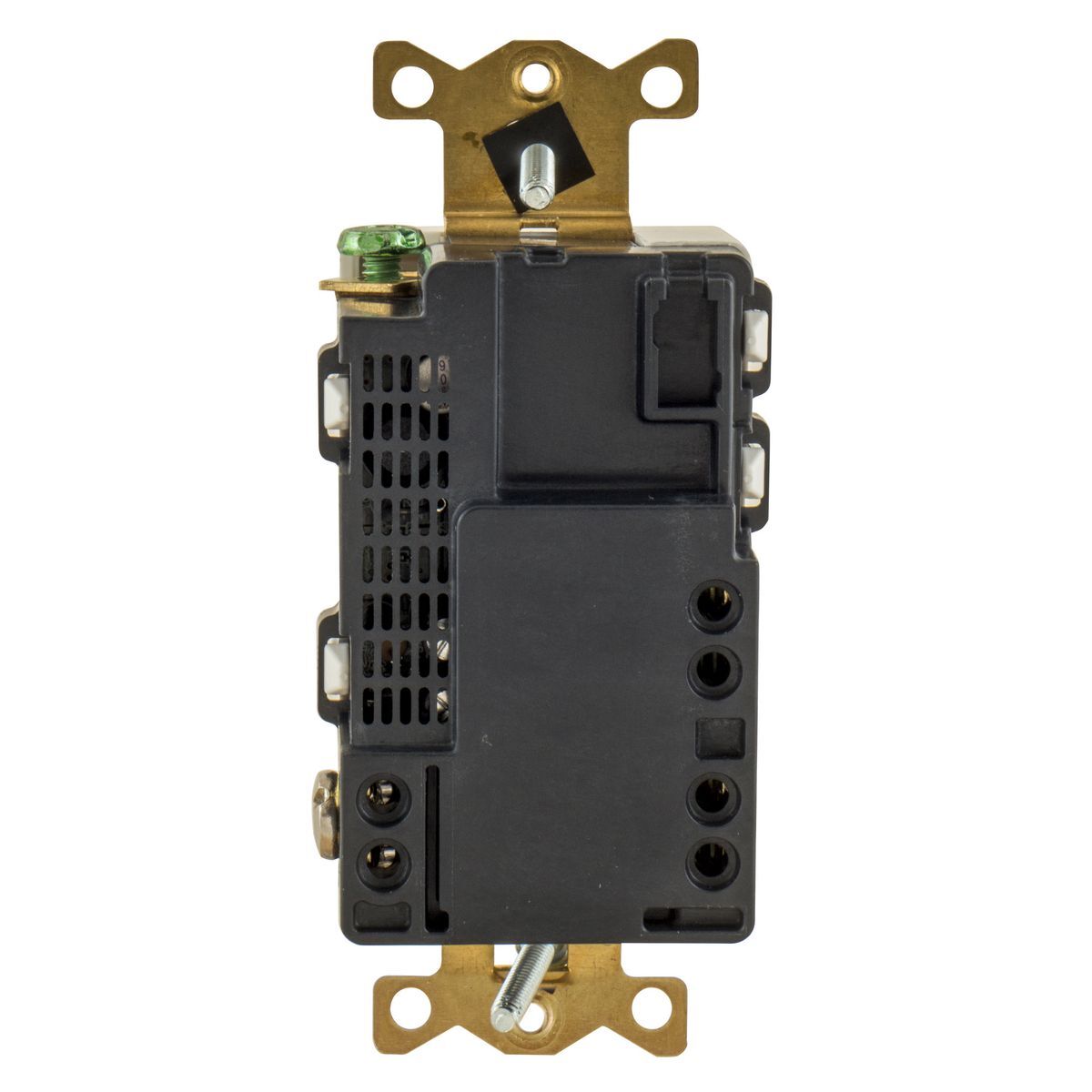

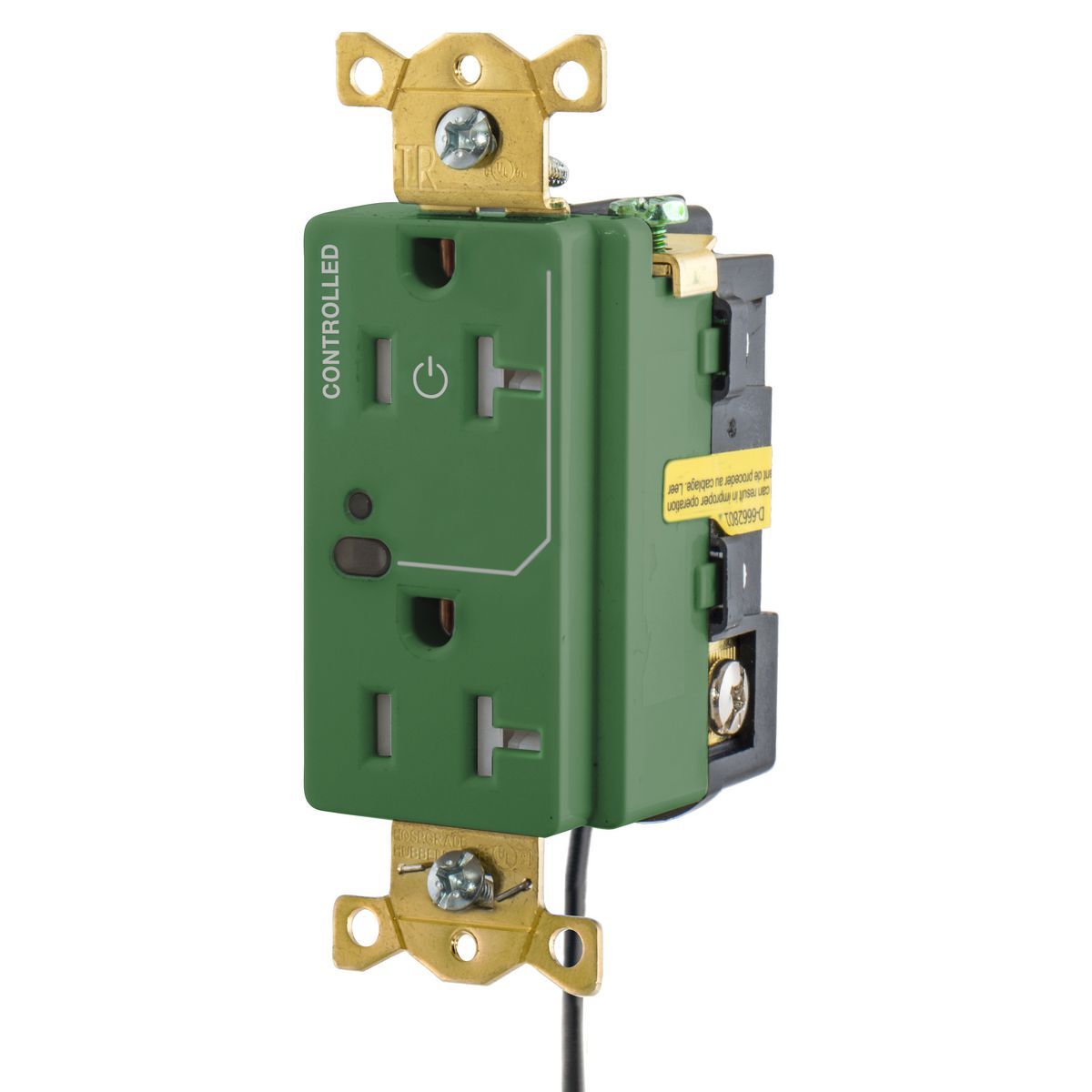

HBL5362LC1GN 1-Phase Duplex Grounding Split Circuit Standard Switched Wired Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Green
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5362LC1GN
- UPC:
- 783585428437
- Item #:
- 1440828
HBL5362LC1GN 1-Phase Duplex Grounding Split Circuit Standard Switched Wired Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Green
- MFR #:
- HBL5362LC1GN
- UPC:
- 783585428437
- Item #:
- 1440828
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$136.61
each
Switched Receptacles for Automatic Receptacle Control - to Hubbell Wiring Device-Kellems comprehensive offering for automatic receptacle control requirements. Featuring Hubbells exclusive and patented tamper-resistant mechanism as standard, the unit is capable of controlling other receptacles downstream in the branch circuit. Hubbell offers this innovative device in wired and wireless options, which are both fully compatible with existing systems. This allows for easy additions and changes to meet current energy codes and standards in current facilities.
Manuals and Documentation
| Catalog Number | HBL5362LC1GN |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Logic Load Control Receptacles |
| Color | Green |
| Connection | Terminal Screws |
| Material | Thermoplastic/Composite |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Special Features | Load Controlled, DR, Split Circuit |
| Standard | cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24;Artcile 130.5(d);NEMA WD-6 Compliant |
| UPC | 783585428437 |
| GTIN | 00783585428437 |
| Item Type | Split Circuit |
| Size | Standard Product |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Voltage Rating | 125 |
| Wattage | 2500 |
| Wire Size | #14 AWG to #10 AWG |
