Telemecanique

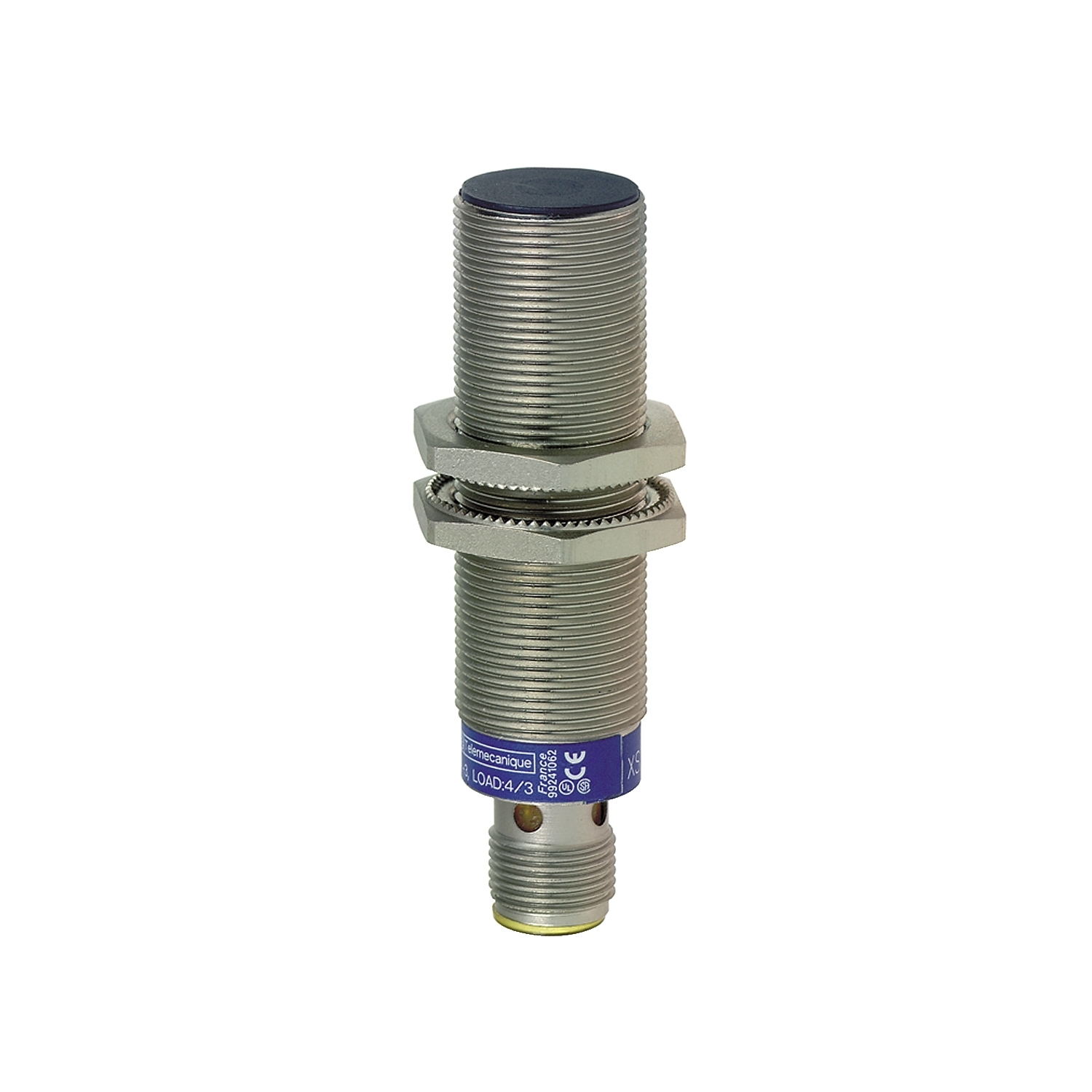

XS1M18MB250K OsiSense XS1 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Discrete Output, 1NC Contact, 24 to 240 V AC/24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M18MB250K
UPC:
785901147916
Item #:
144013

Availability

Location Available Qty
Available Available to Order
$395.93 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a multivoltage, cylindrical, flush mountable sensor. Diamter 18mm, threaded M18 x 1. It features a nickel plated brass case and a 1/2-20UNF connector. It has a sensing distance of 5mm Two-wire, AC or DC supply, 24V to 240V, NO output, with short-circuit protection.

Manuals and Documentation
Catalog Number XS1M18MB250K
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application 2-wire DC short-circuit protection
Connector Male connector 1/2"20 UNF, 3 pins
Control Output 1 NC
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow);supply on 1 LED green)
Material Metal
Mounting Flush
Sensing Range > 0.16...0.31 IN (> 4...8 MM)
Sensor XS 1
Special Features SHORT-CIRCUIT PROTECTION
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866704&lang=en-us
UPC 785901147916
GTIN 03389110915785
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -13...158 Degrees F (-25...70 Degrees C)
