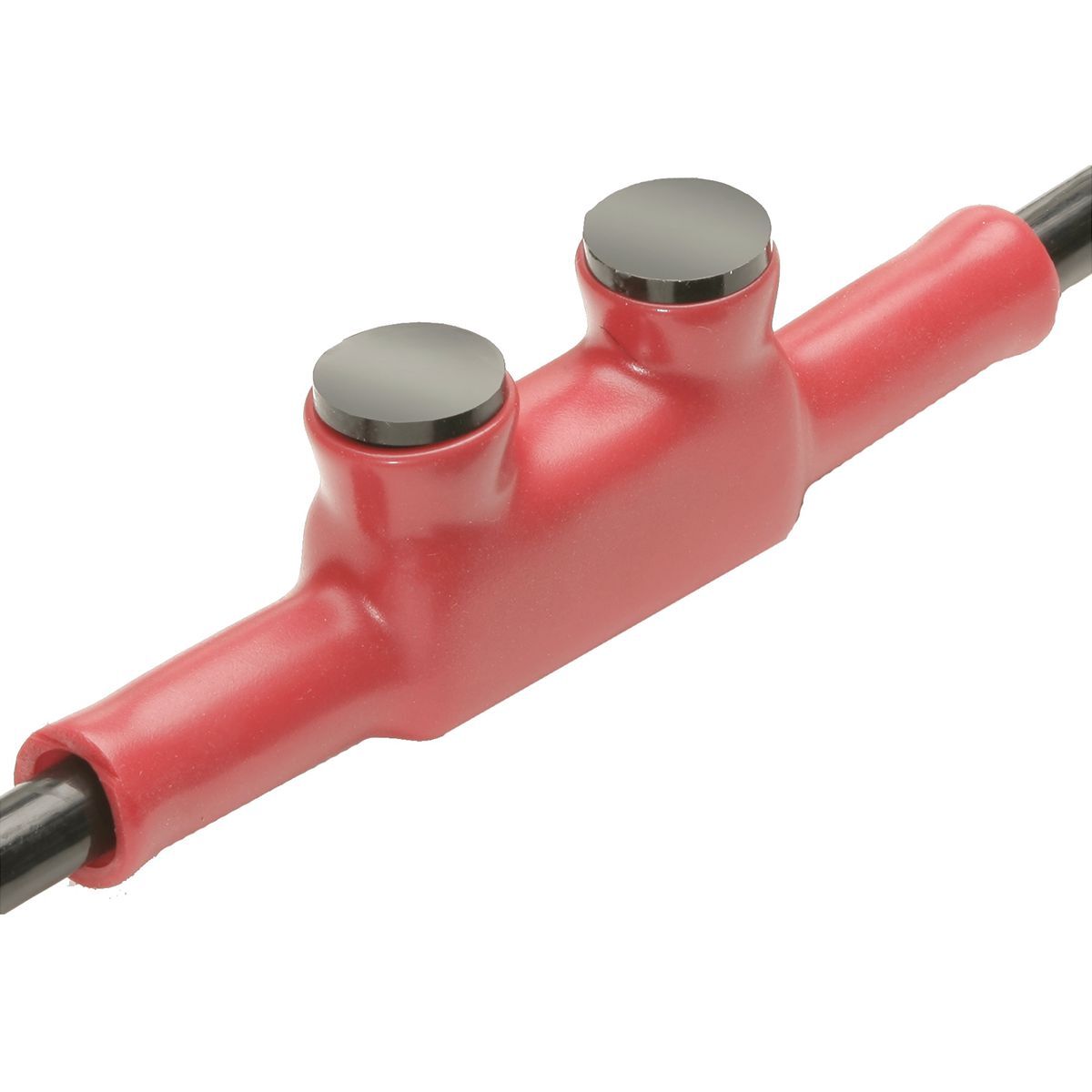

BISR3/0DB 2-Port Type BISR In-Line Splice/Reducer, 1/0 to 3/0 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BISR3/0DB
- UPC:
- 781810288030
- Item #:
- 143572
BISR3/0DB 2-Port Type BISR In-Line Splice/Reducer, 1/0 to 3/0 AWG Aluminum/Copper/Stranded Conductor, Aluminum
- MFR #:
- BISR3/0DB
- UPC:
- 781810288030
- Item #:
- 143572
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$139.33
each
Manuals and Documentation
| Catalog Number | BISR3/0DB |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial |
| Material | Aluminum |
| Special Features | Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90 Degrees C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Strip Length: 1-3/32 IN, Hex Size (key): 3/16 IN, Number Of Ports: 2, Type Of Insulation: Plastisol |
| Standard | UL 486A-486B |
| UPC | 781810288030 |
| GTIN | 00781810288030 |
| Item Type | BISR |
| Temperature Rating | 90 Degrees C |
