2304-60-00 Type MC Jacketed Armored Cable, Reel Packaging, 600 V, (2) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- Atkore
- MFR #:
- 2304-60-00
- UPC:
- 077680115232
- Item #:
- 1434288
2304-60-00 Type MC Jacketed Armored Cable, Reel Packaging, 600 V, (2) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 2304-60-00
- UPC:
- 077680115232
- Item #:
- 1434288
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

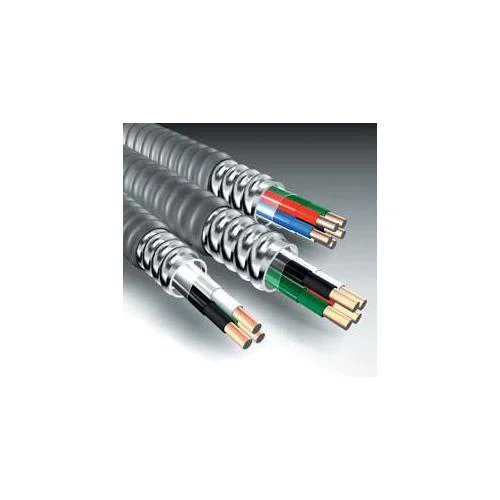

The Parking Deck/Lot Cable™ has often replaced Schedule 40 and/or Schedule 80 PVC conduits, EMT, and rigid conduit for its flexibility, durability, and labor savings. Parking Deck/Lot Cable™ has a 50-mils PVC jacket over a galvanized steel armor. This is 10 mils thicker than Schedule 40 PVC conduit. The cable offers the same mechanical protection and performance of traditional raceway methods, with the ease of installation of a cable assembly.
Manuals and Documentation
Features
- Cable System
- Technically equivalent and economically superior to traditional raceway and wire installations
- Buries 24 in deep by Code
- 50 Mil PVC Jacket over a galvanized steel armor
- 10 mils thicker than Schedule 40 PVC conduit
- Versatile
- Listed for -40 deg C low temperature use, sunlight, and oil resistant
| Manufacturer Part Number | 2304-60-00 |
| Brand | Kaf-Tech |
| Manufacturer | Atkore |
| UPC | 077680115232 |
| Country Of Origin | US |
| Conductor Size | 12 AWG |
| Conductor Type | Solid Copper |
| Insulation Material | THHN/THWN |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Length | 1000 ft |
| Number Of Conductors | 2 |
| Outside Diameter | 0.614 in |
| Temperature Rating | 90 deg C |
| Type | Type MC Jacketed |
| Voltage Rating | 600 V |
| Alternative Part Number | 14173627 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Cable Tray Rated Install per NEC® | Federal Specification A-A-59544 | NEC® 230.43/300.5/392/396.10(A)/330/501/502/503/530/504/505/511.7/513.7(A)/514.7/515.7(A)/516.7(A)/680.21(A) | UL 83/1479/1569/1581/2556/E80042 | Vertical Tray Flame Tests IEEE 1202 | Wet Locations per NEC® 330.10(11)(C) |
| Application | Branch Circuit and Feeder Wiring, Control and Signal Circuits, Direct Burial in Concrete Encasement and Wet Locations, Parking Deck/Parking Lot, Golf Courses, Sky Mountains, Docks, Marinas, Pumping Stations and Stadium Lighting |
| Packaging Type | Reel |
