Telemecanique

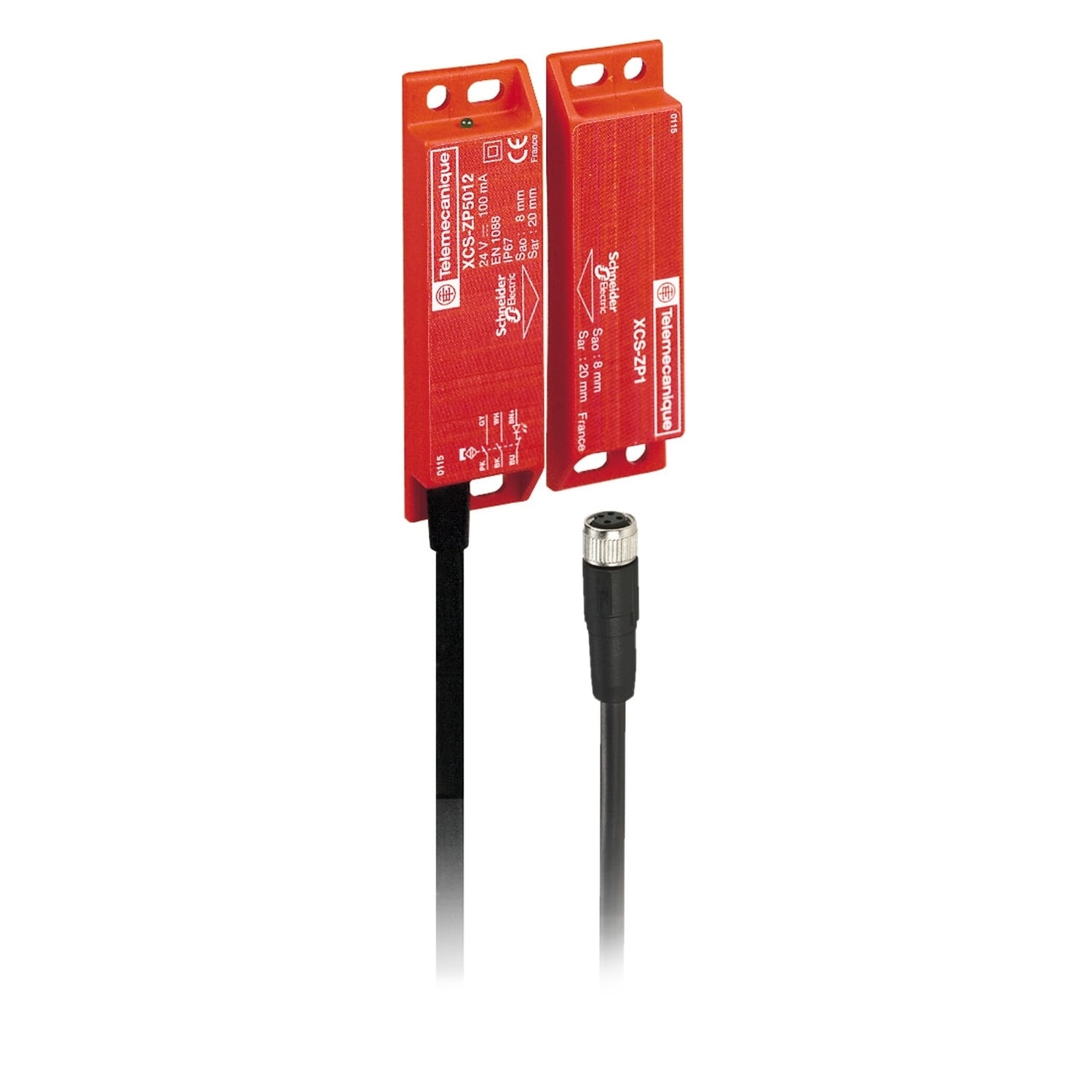

XCSDMP790L01M12 Preventa 3-Direction 2-Pole Standard Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 2NC Contact, Rhodium Contact

MFR:
Telemecanique Sensors
MFR #:
XCSDMP790L01M12
UPC:
785901913443
Item #:
143270

Availability

Location Available Qty
Available Available to Order
$163.36 each

This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet. It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSDMP790L01M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Morocco
Made in USA No
Action Staggered
Amperage Rating 100
Connection M12;Connector on flying lead
Contact Configuration 2 NC
Enclosure Thermoplastic PBT
Special Features PLASTIC
Standard EN/ISO 12100
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859080&lang=en-us
UPC 785901913443
GTIN 03389119012393
Item Type Coded magnetic switch
Size 88 x 25 x 13 mm
Operating Temperature -25-85 A Degrees C
Voltage Rating 24 V DC
