Mersen

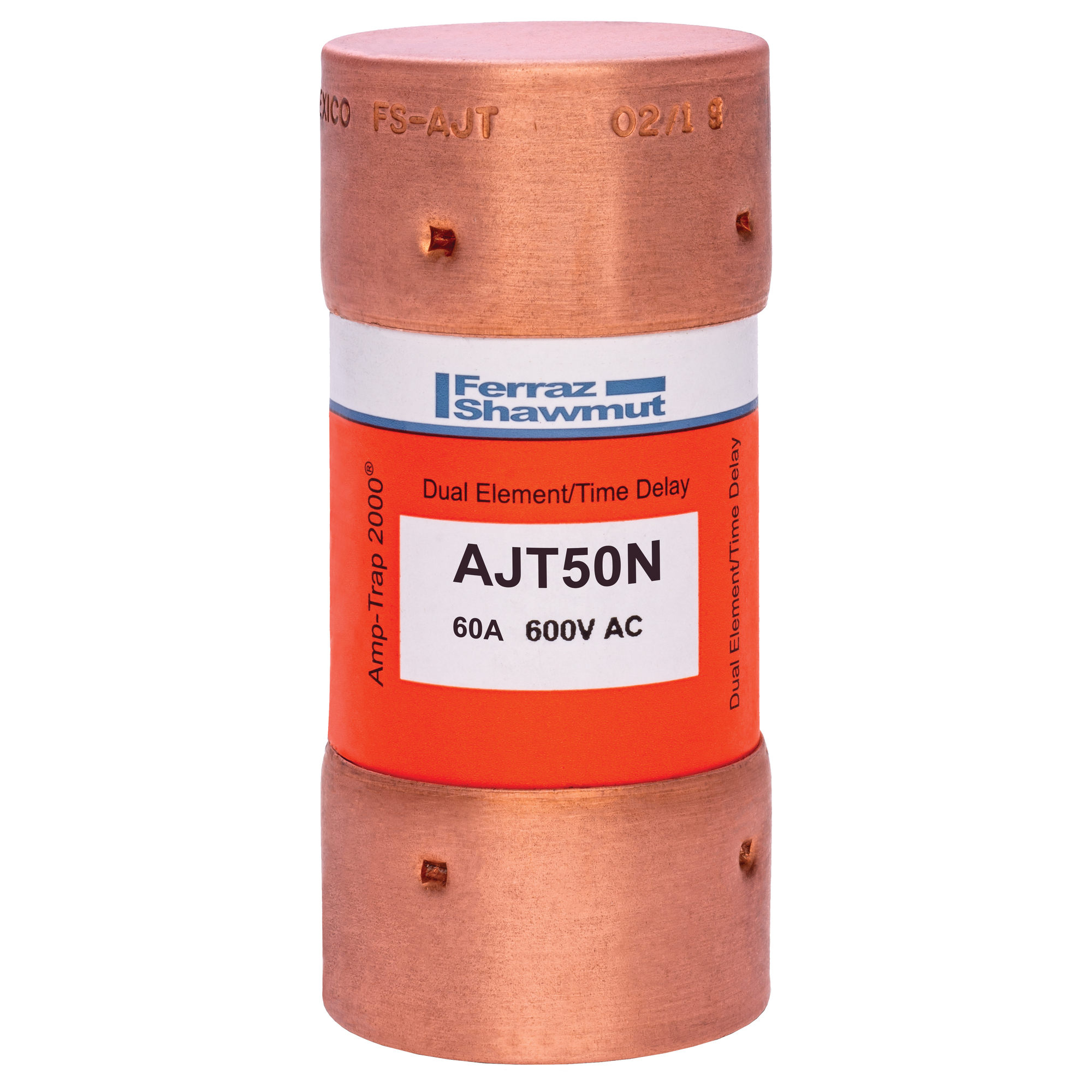

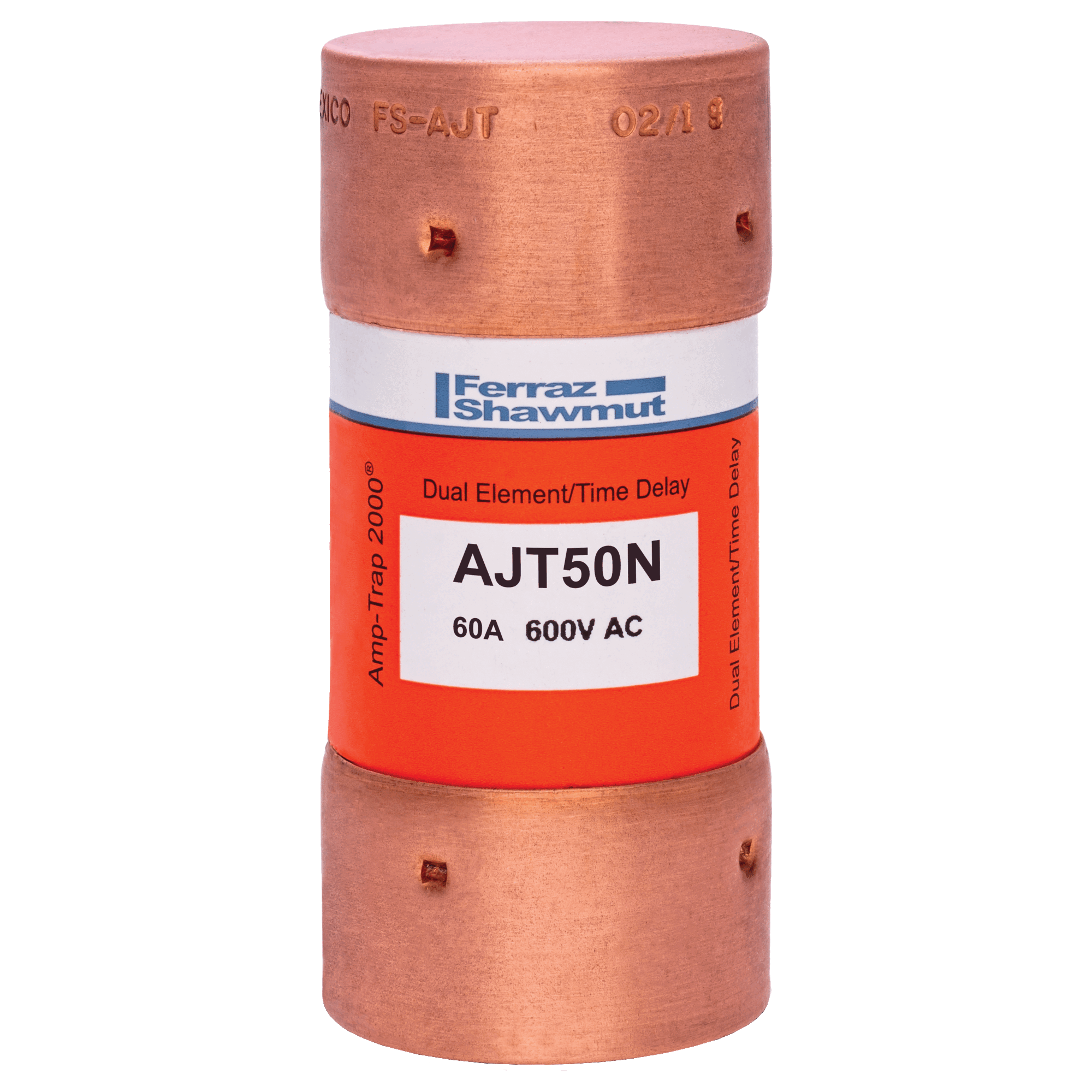

AJT50N Amp-Trap 2000 Low Voltage Time Delay Power Fuse, 50 A, 600 V AC/500 V DC, 200 kA AC/100 kA DC Interrupt, J Class

MFR:
Mersen
MFR #:
AJT50N
UPC:
782001497774
Item #:
1430369

Availability

Location Available Qty
Available Available to Order
$127.82 each

Fuse AJT - Class J - Time-delay 600VAC 400VDC 50A Ferrule Amp-Trap 2000

Manuals and Documentation
Catalog Number AJT50N
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 50
Application Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers
Connection Ferrule
Interrupt Rating 200 KA
Mounting Clip
Special Features Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Standard AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248
UPC 782001497774
GTIN 00782001497774
Item Type Class J
Size 2.38 x 1.06
