Telemecanique

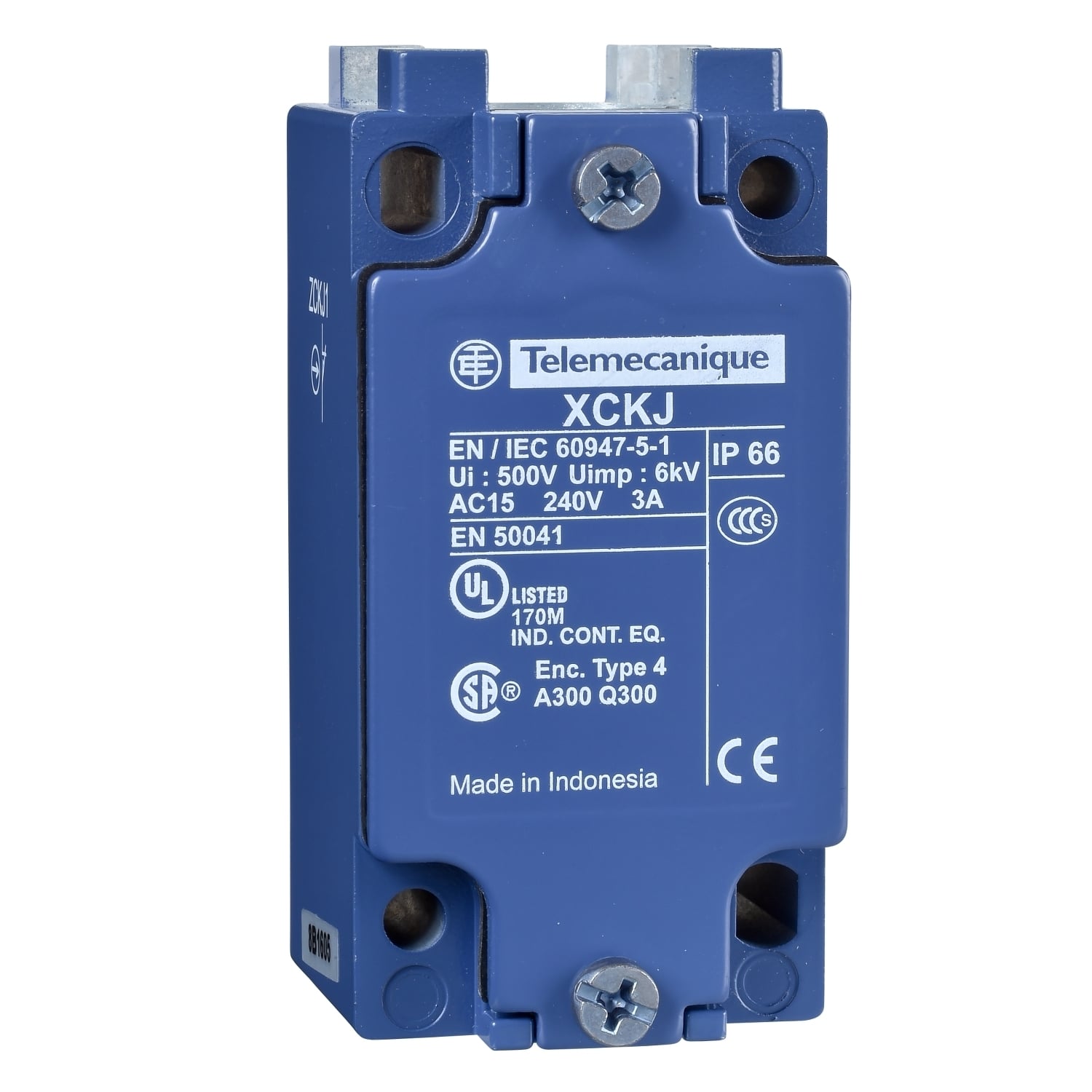

ZCKJ2H29 OsiSense 2-Pole Fixed Limit Switch Body, 2CO Contact, For Use With XCKJ Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP66/IK07 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ2H29
UPC:
785901796824
Item #:
1428800

Availability

Location Available Qty
Available Available to Order
$147.50 each

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 2 x co snap action (simultaneous) contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKJ2H29
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879636&lang=en-us
UPC 785901796824
GTIN 03389110825718
Item Type Limit switch body
Size 102-102 MM,40 MM,60 MM
Environmental Conditions LOW TEMPERATURE
Operating Temperature -40-70 A Degrees C LOW TEMPERATURE
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
