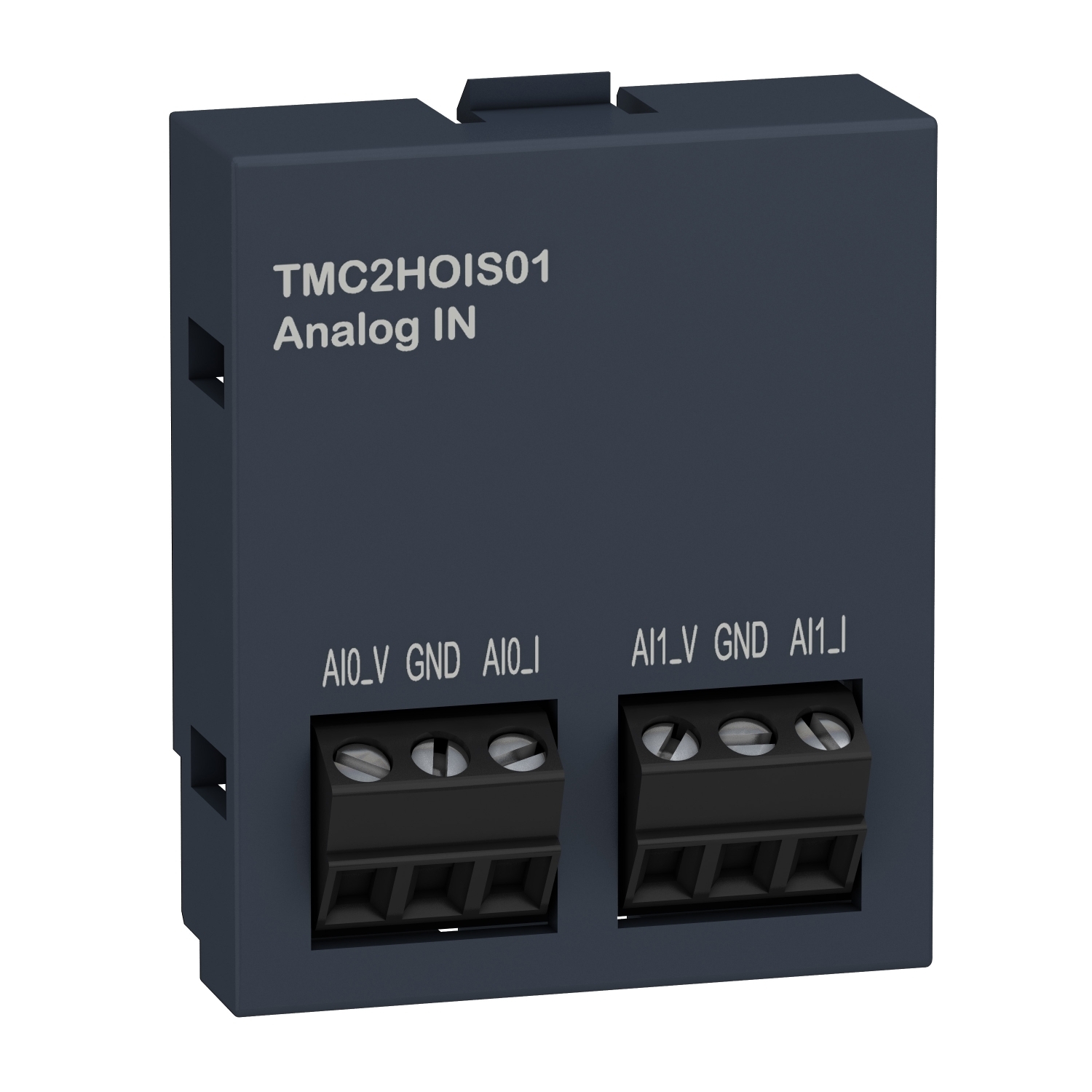

TMC2HOIS01 M Series Analogue input cartridge, 2 inputs, 12 bit resolution
- MFR:
- Schneider Electric
- MFR #:
- TMC2HOIS01
- Item #:
- 1428335
TMC2HOIS01 M Series Analogue input cartridge, 2 inputs, 12 bit resolution
- MFR #:
- TMC2HOIS01
- Item #:
- 1428335
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
cartridge M221 - hoisting 2 analog input - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling a load cell in hoisting application. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Manuals and Documentation
| Catalog Number | TMC2HOIS01 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Japan |
| Made in USA | No |
| Insulation | Non-insulated between analogue input and internal logic |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=351707668&lang=en-us |
| GTIN | 03606480649127 |
