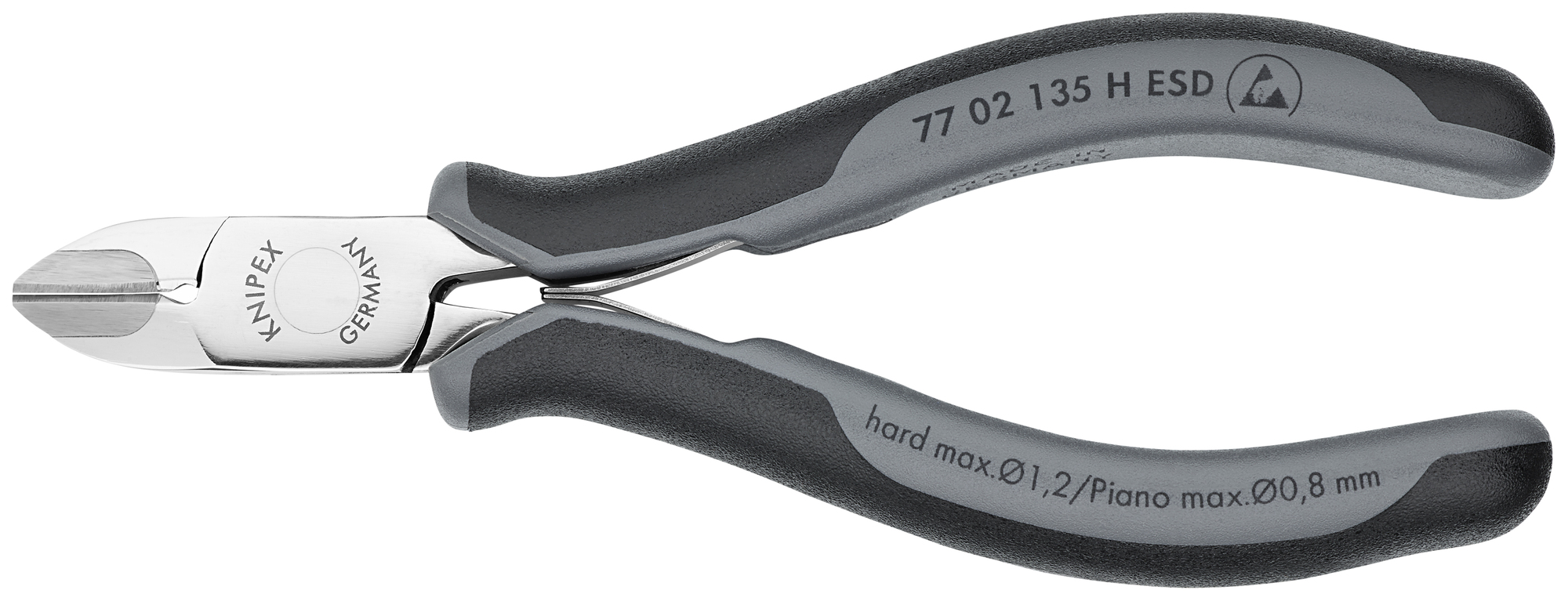

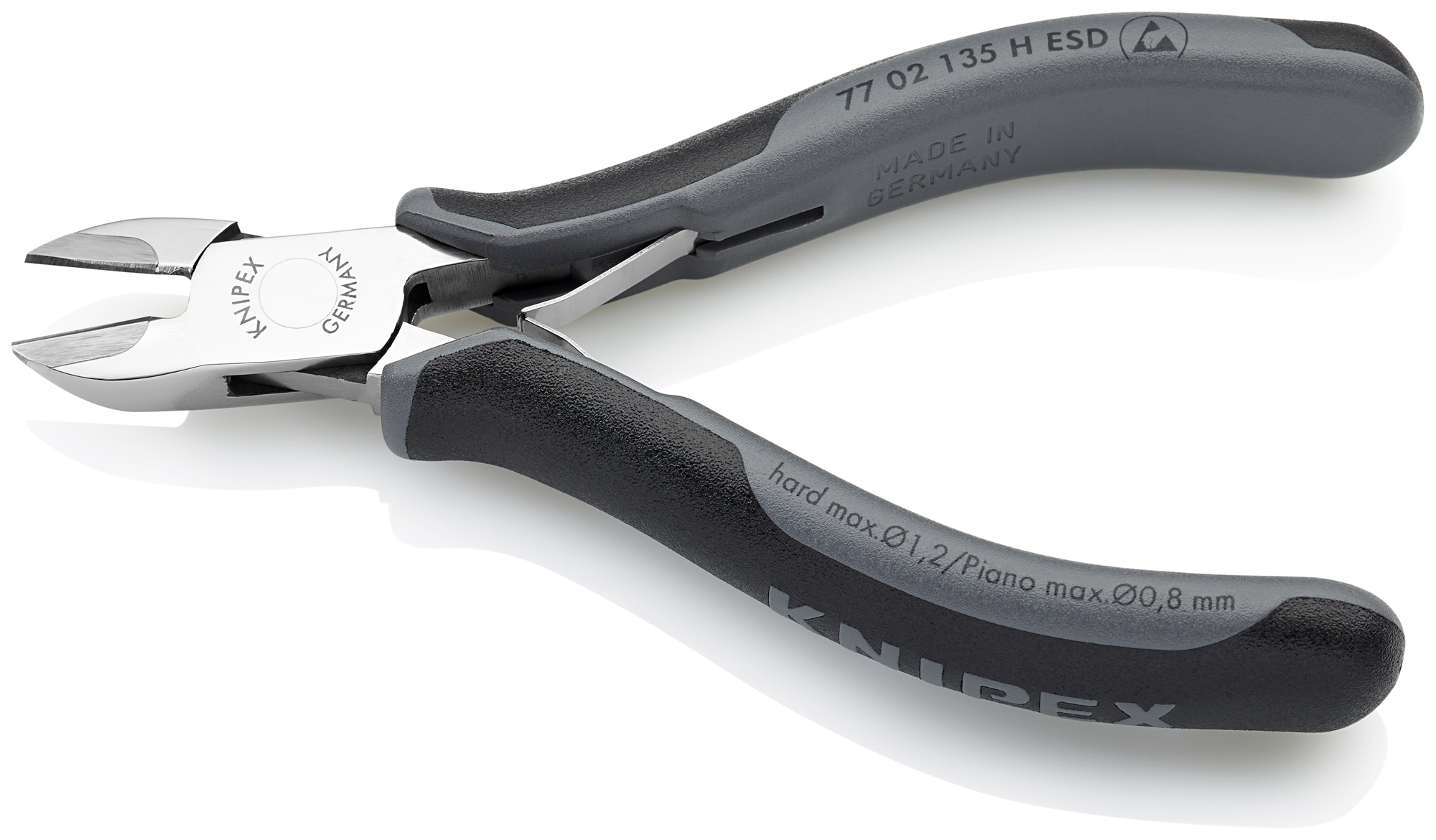

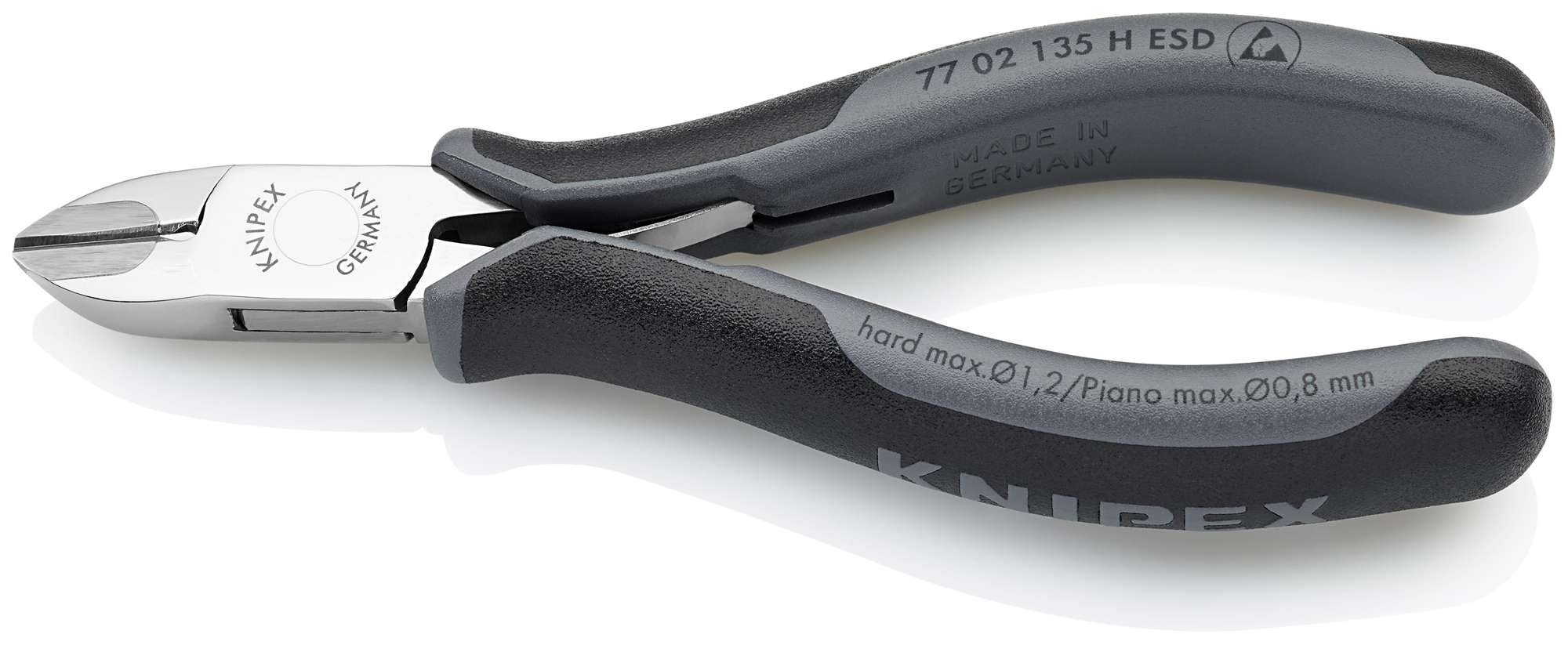

Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles, 5 1/4 in., Multi-component, Polished, Semi-flush with Bevel Cut, Oval Head, Up to 1/32 in. Piano Wire

MFR:
KNIPEX Tools
MFR #:
77 02 135 H ESD
UPC:
843221020613
Item #:
1423678

Availability

Location Available Qty
Available Available to Order
$196.35 each

For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, which are used more frequently in the electronics and aerospace industries. Precision carbide metal cutting edges soldered into forged blanks. Sturdy, zero backlash box-joint. Hardness of the carbide cutting edges (approx. 80 – 83 HRC). Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges. Constantly reliable cutting results due to the avoidance of cutter deformations. High cost savings due to longer service life of the pliers. Semi-flush with bevel. ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge. Hardness of the carbide cutting edges 80 – 83 HRC. Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges. High cost saving due to longer service life of the pliers. Head mirror polished. Round head.

Manuals and Documentation

Features

  • For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, which are used more frequently in the electronics and aerospace industries
  • Precision carbide metal cutting edges soldered into forged blanks
  • Sturdy, zero backlash box-joint
  • Hardness of the carbide cutting edges (approx. 80 – 83 HRC)
  • Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges
  • Constantly reliable cutting results due to the avoidance of cutter deformations
  • High cost savings due to longer service life of the pliers
  • Semi-flush with bevel
Catalog Number 77 02 135 H ESD
Manufacturer KNIPEX Tools
Brand KNIPEX
Country of Origin Germany
Finish Polished
Material Ball Bearing Steel
UPC 843221020613
Item Type Electronics Pliers > Diagonal Cutters with Carbide Cutting Edges ESD
Length 5.25
Length UOM Inch
Width 2.05
Width UOM Inch
Height 0.85
Height UOM Inch
Weight 0.255
Weight UOM Pounds
