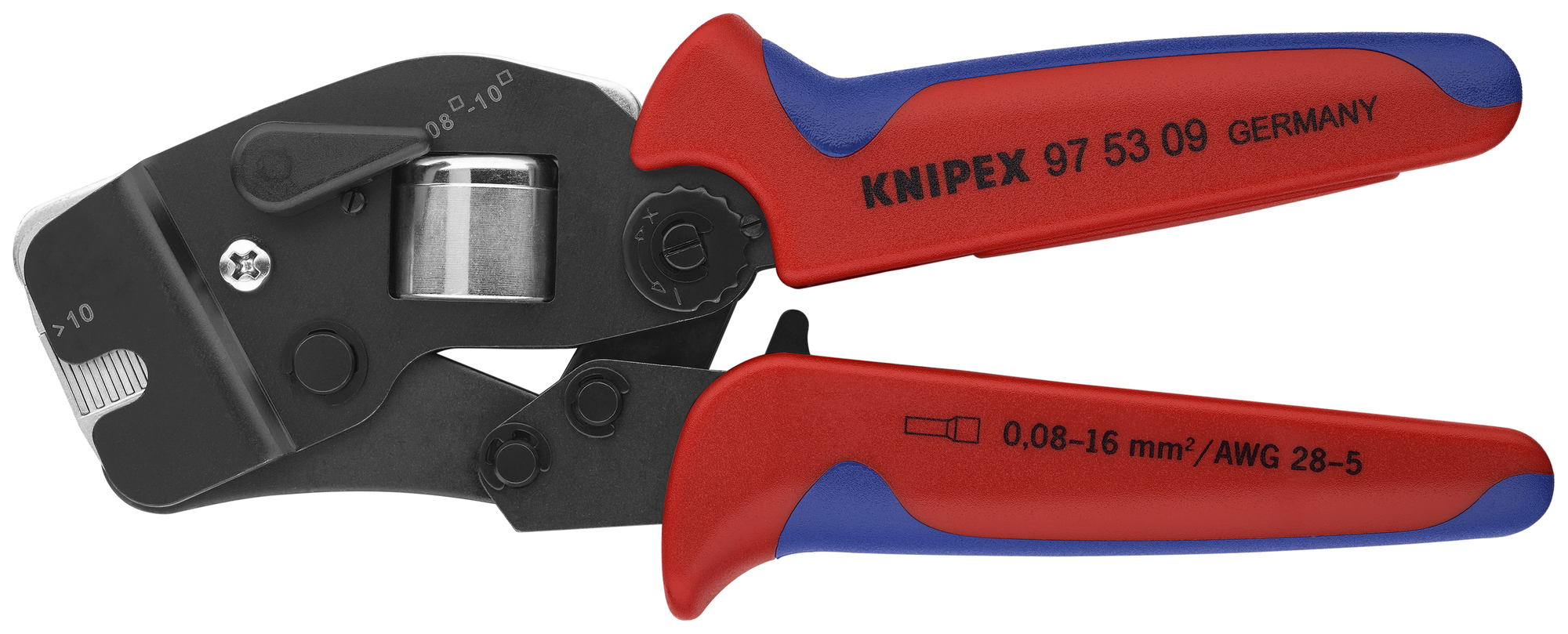

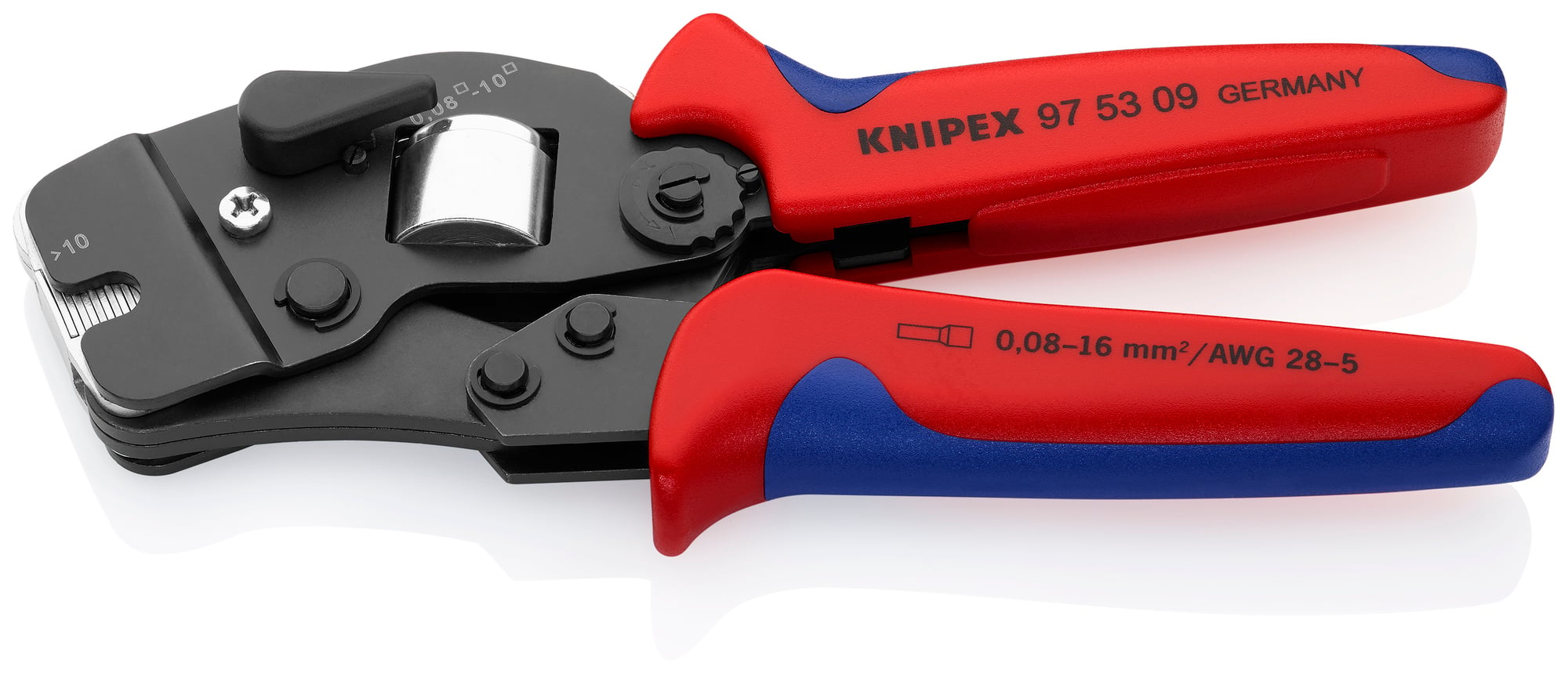

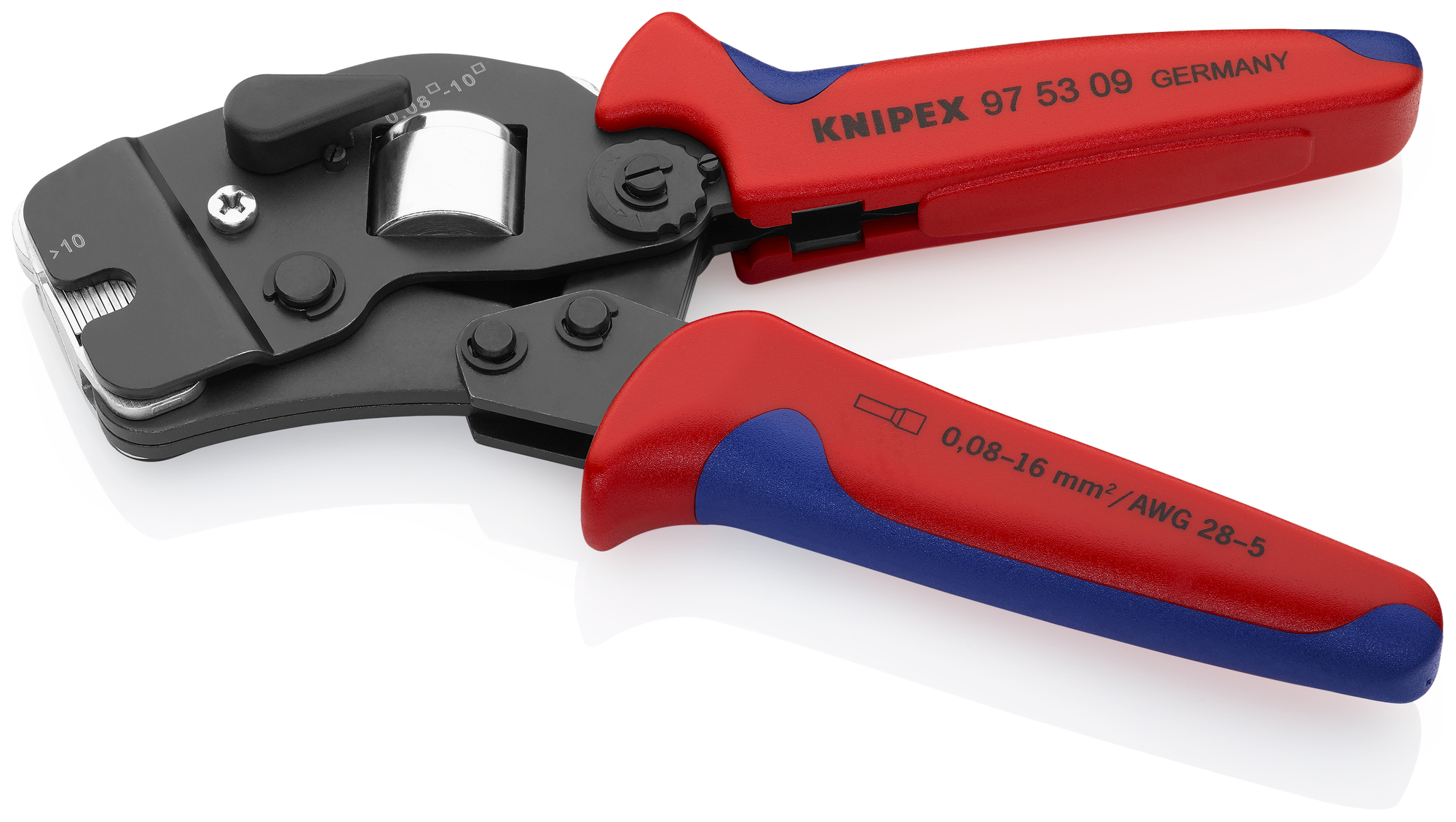

Self-Adjusting Crimping Pliers For Wire Ferrules, 7 1/2 in., Multi-Component, Automatic Square Crimp, 1 Crimp Position
- MFR:
- KNIPEX Tools
- MFR #:
- 97 53 09
- UPC:
- 843221006204
- Item #:
- 1423514
Self-Adjusting Crimping Pliers For Wire Ferrules, 7 1/2 in., Multi-Component, Automatic Square Crimp, 1 Crimp Position
- MFR #:
- 97 53 09
- UPC:
- 843221006204
- Item #:
- 1423514
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

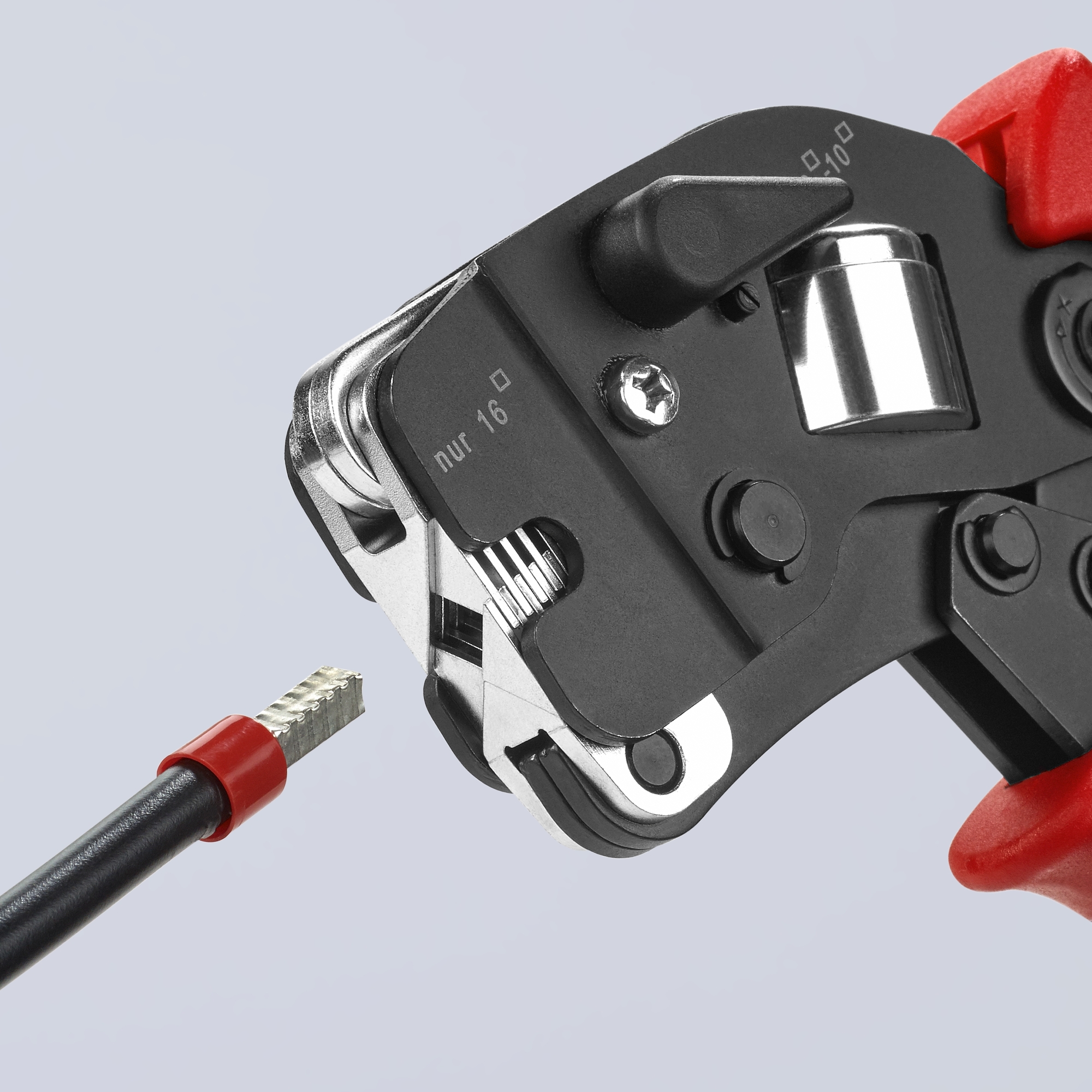

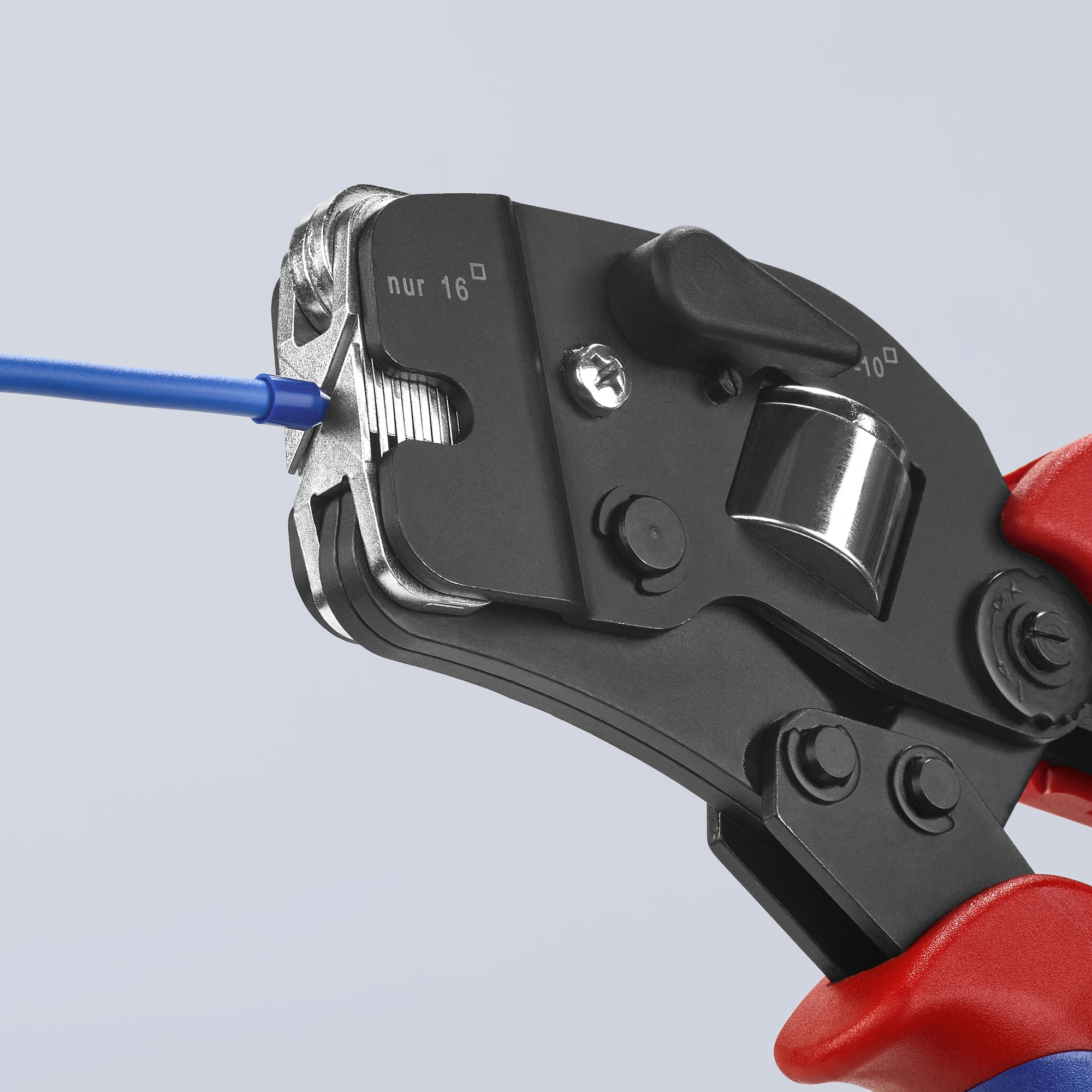

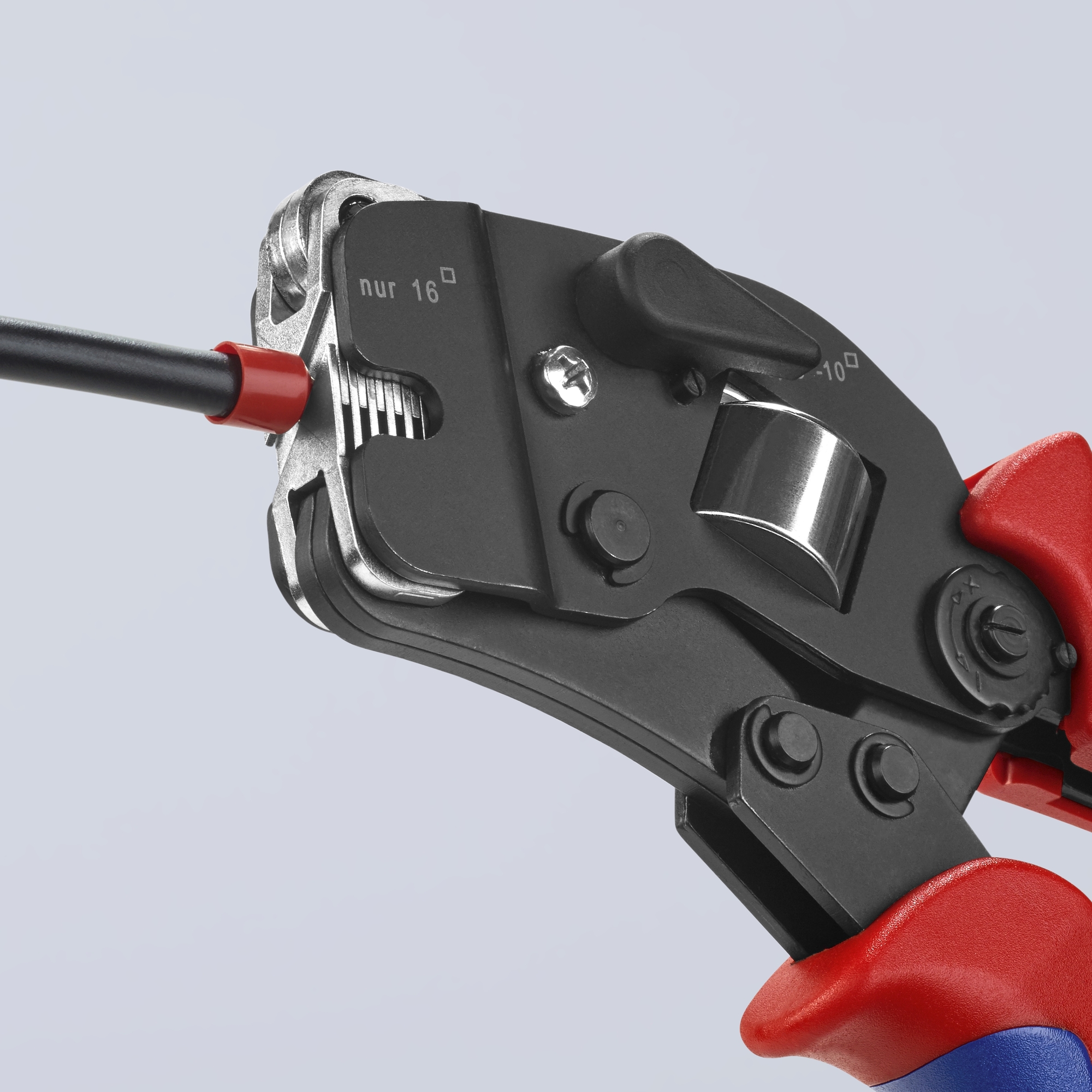

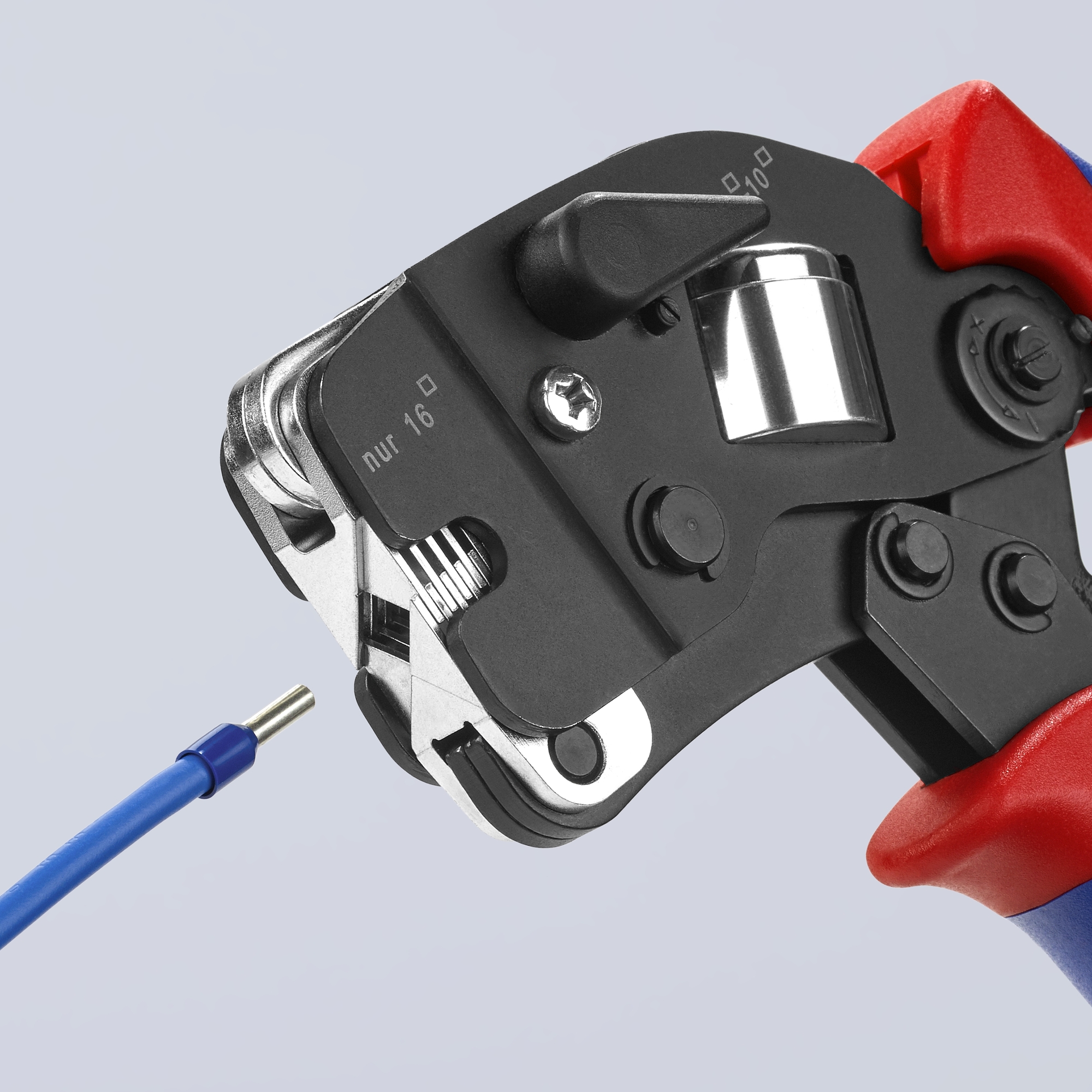

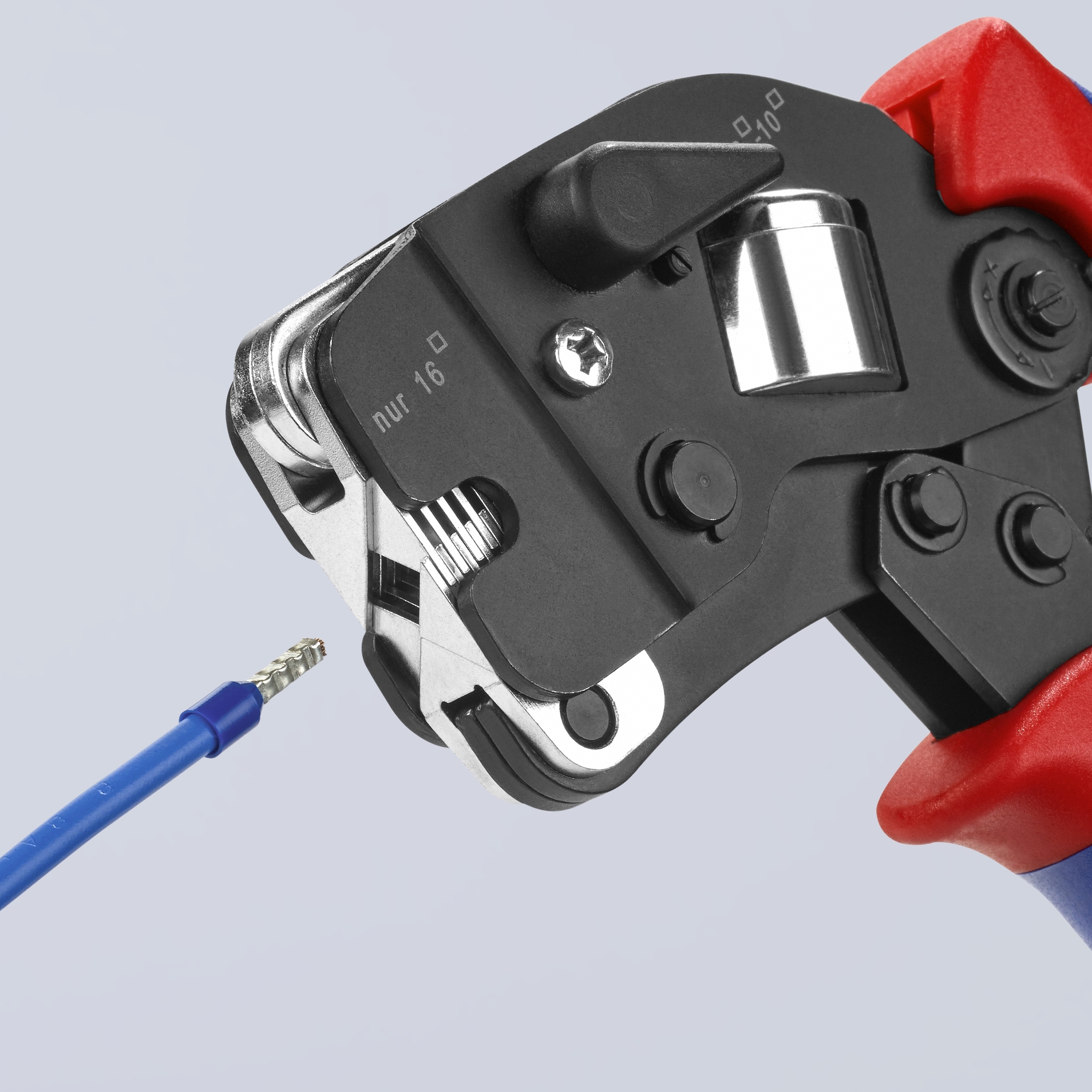

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading. For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4. Crimping from 28 to 8 and 6 AWG (0.08 - 10.0 and 16.0 mm²) in one profile; with selector lever for setting the crimping area either to 28 - 8 and 6 AWG (0.08 - 10 mm² or 16 mm²); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm² or 2 x AWG 8. Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory. Optimum transmission of force due to toggle lever for fatigue-reduced operation. High operation comfort thanks to handy shape and low weight. Chrome vanadium electric steel in special quality, oil-hardened. With selector lever for setting the crimping area either to 7 to 28 or 5 AWG (0.08 - 10 mm² or 16 mm²). Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8. Pliers burnished. Handles with multi-component covers.
Manuals and Documentation
Features
- Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
- For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4

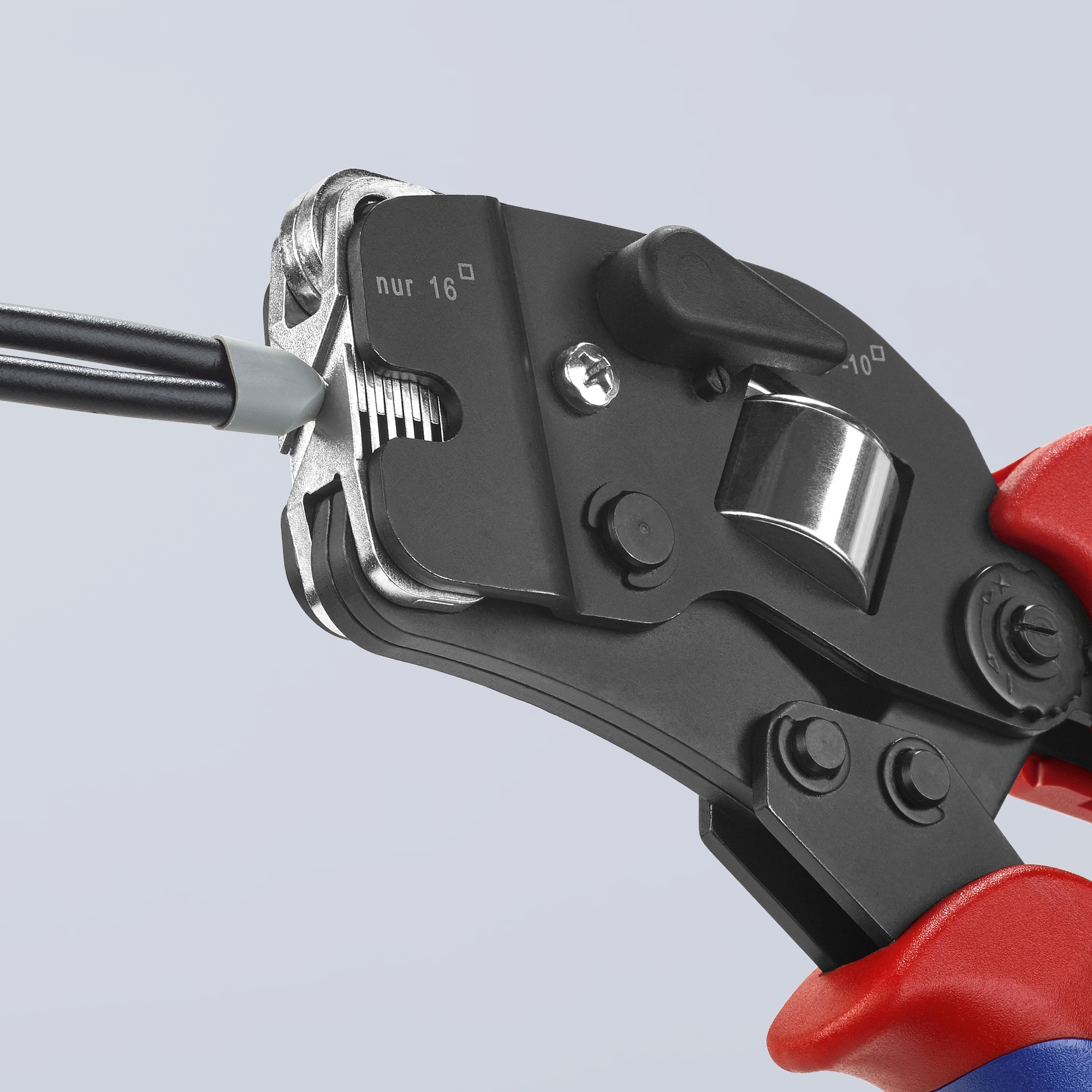

- Crimping from 28 to 8 and 6 AWG (0.08 - 10.0 and 16.0 mm²) in one profile; with selector lever for setting the crimping area either to 28 - 8 and 6 AWG (0.08 - 10 mm² or 16 mm²); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm² or 2 x AWG 8
- Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Crimping pressure has been set precisely (calibrated) in the factory
- Optimum transmission of force due to toggle lever for fatigue-reduced operation
- High operation comfort thanks to handy shape and low weight
| Catalog Number | 97 53 09 |
| Manufacturer | KNIPEX Tools |
| Brand | KNIPEX |
| Country of Origin | Germany |
| Finish | Black-oxide |
| Material | Chrome vanadium electric steel, oil-hardened |
| UPC | 843221006204 |
| Item Type | Crimping Pliers > Self-Adjusting |
| Length | 7.5 |
| Length UOM | Inch |
| Width | 2.85 |
| Width UOM | Inch |
| Height | 1.05 |
| Height UOM | Inch |
| Weight | 1.075 |
| Weight UOM | Pounds |
