Polaris

IPL250-3 Polaris IPL Single Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol

MFR:
NSi Industries
MFR #:
IPL250-3
UPC:
662381913012
Item #:
142288

Availability

Location Available Qty
Available Available to Order
$105.15 each

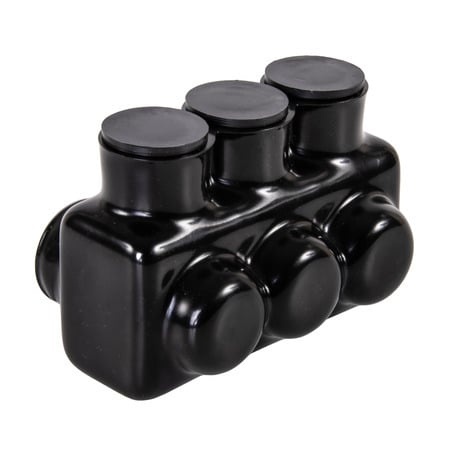

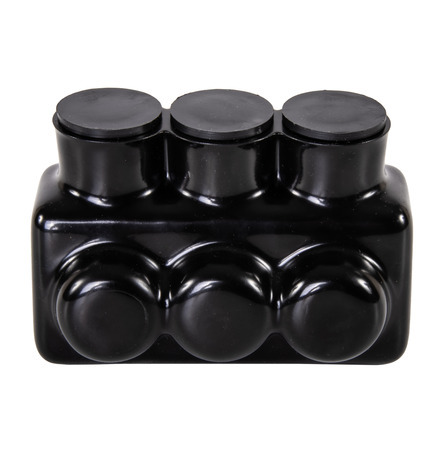

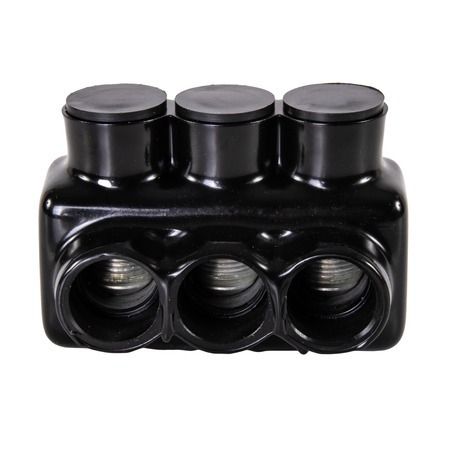

The Polaris IPL250-3 Multi-Tap Single Side Entry Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Manuals and Documentation
Catalog Number IPL250-3
Manufacturer NSi Industries
Brand Polaris
Country of Origin United States
Made in USA Yes
Application Wire Termination
Color Black
Finish Plastisol Insulated
Material Aluminum
Number of Conductors 3
Number of Poles 1
Special Features (3) 250 MCM-6 AWG - Dual Rated
Standard UL 486A/B
UPC 662381913012
GTIN 00662381913012
Item Type Single Sided Entry
Size L=2.930 - W=2.030 - H=2.180
Environmental Conditions 90 C
Temperature Rating 90 C
Voltage Rating 600 V
Wire Size 250 MCM-6 AWG
