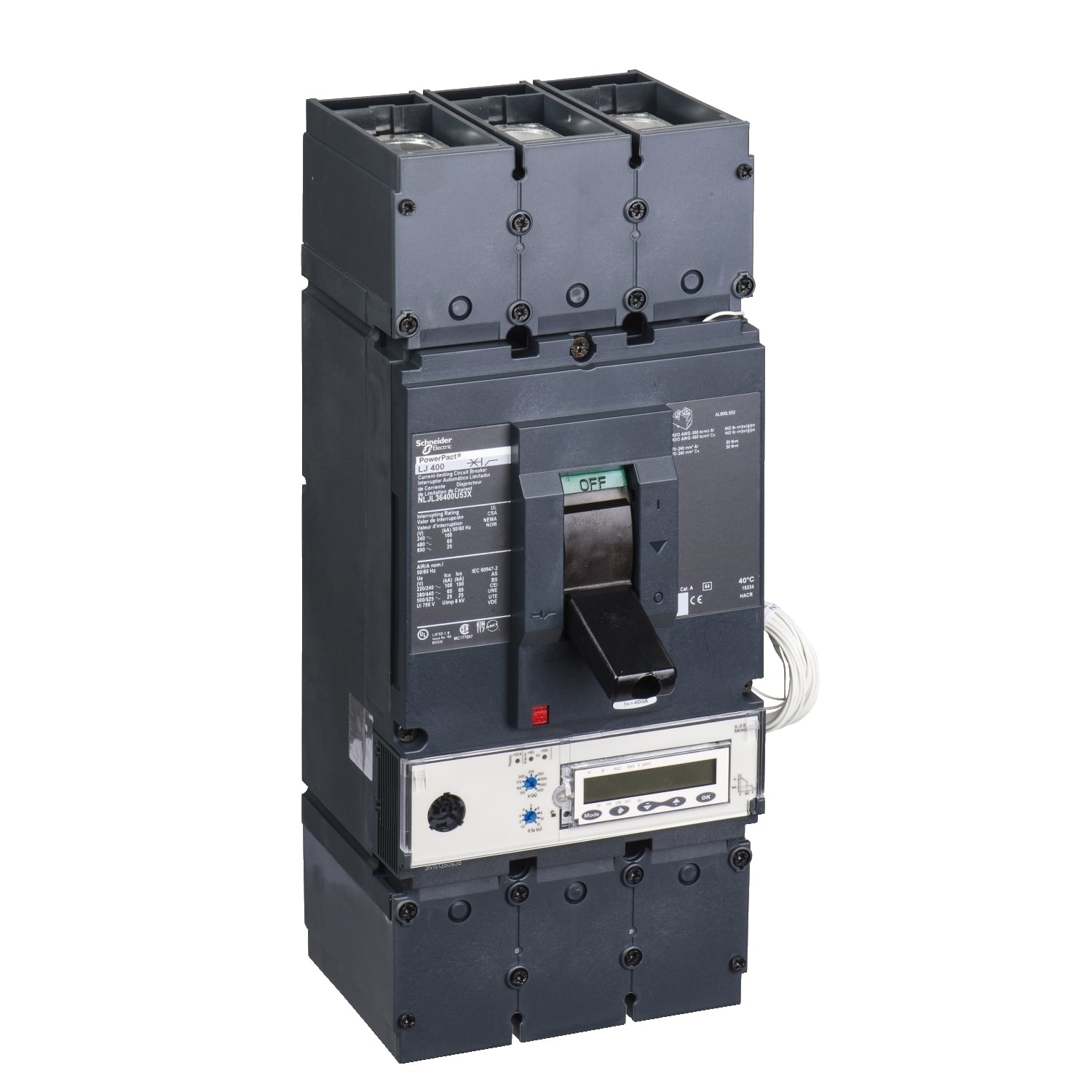

LLL37060D33 PowerPacT L Thermal Magnetic Circuit Breaker, 600 Amp, 3 Pole, 500VDC, 50kA
LLL37060D33 PowerPacT L Thermal Magnetic Circuit Breaker, 600 Amp, 3 Pole, 500VDC, 50kA
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
- Catalog Number
- LLL37060D33
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Color
- Black
- Connection
- Lugs, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper
- GTIN
- 03606486284124
