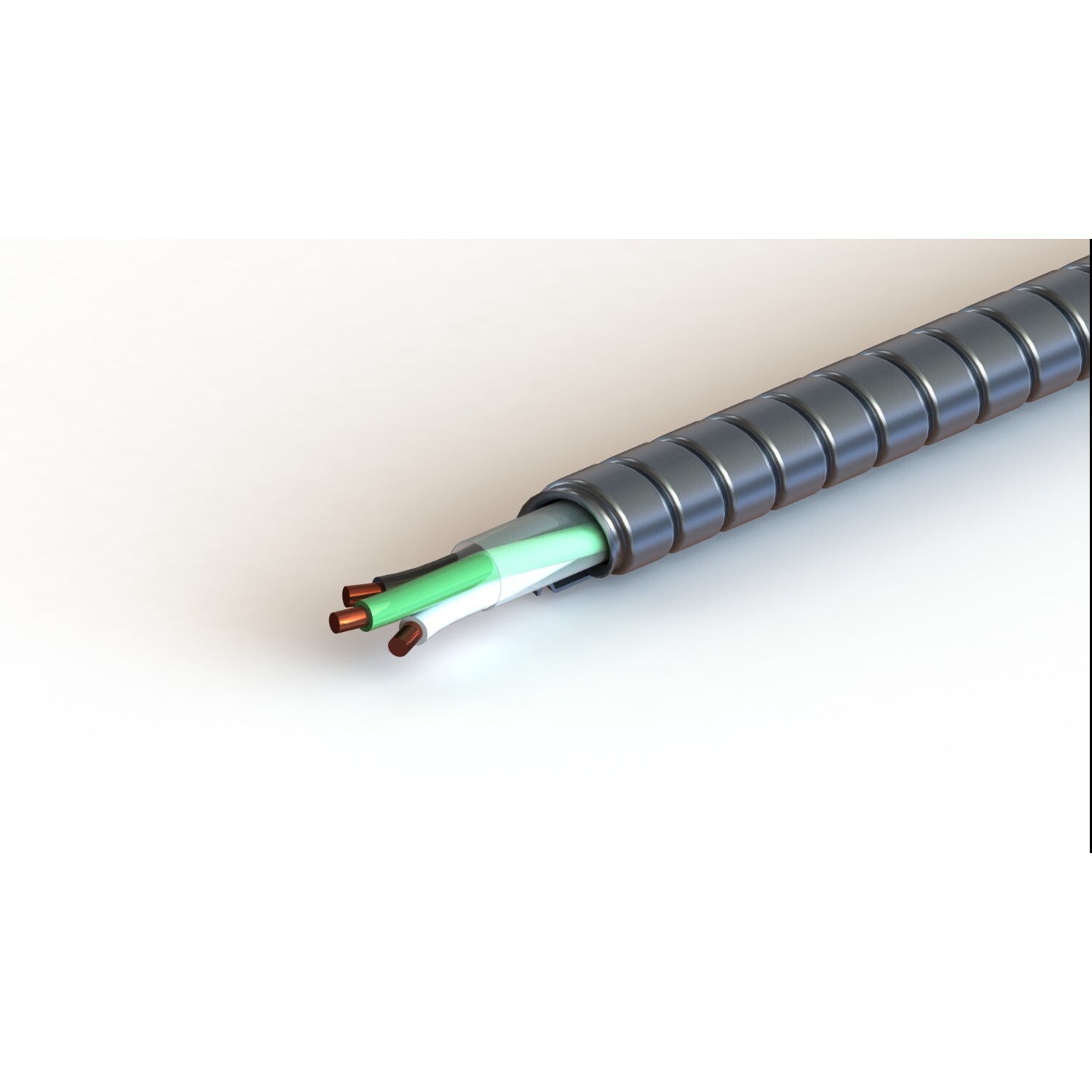

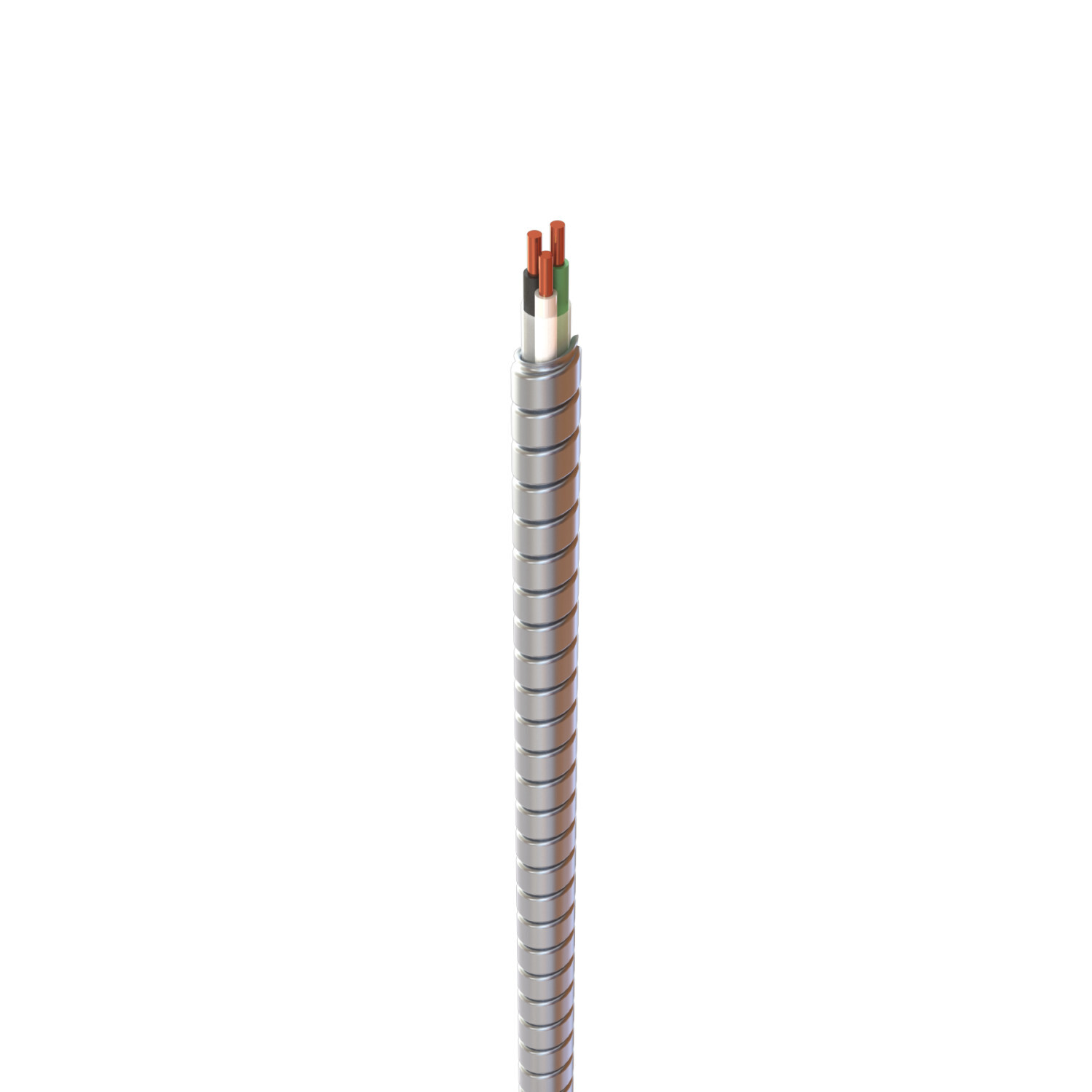

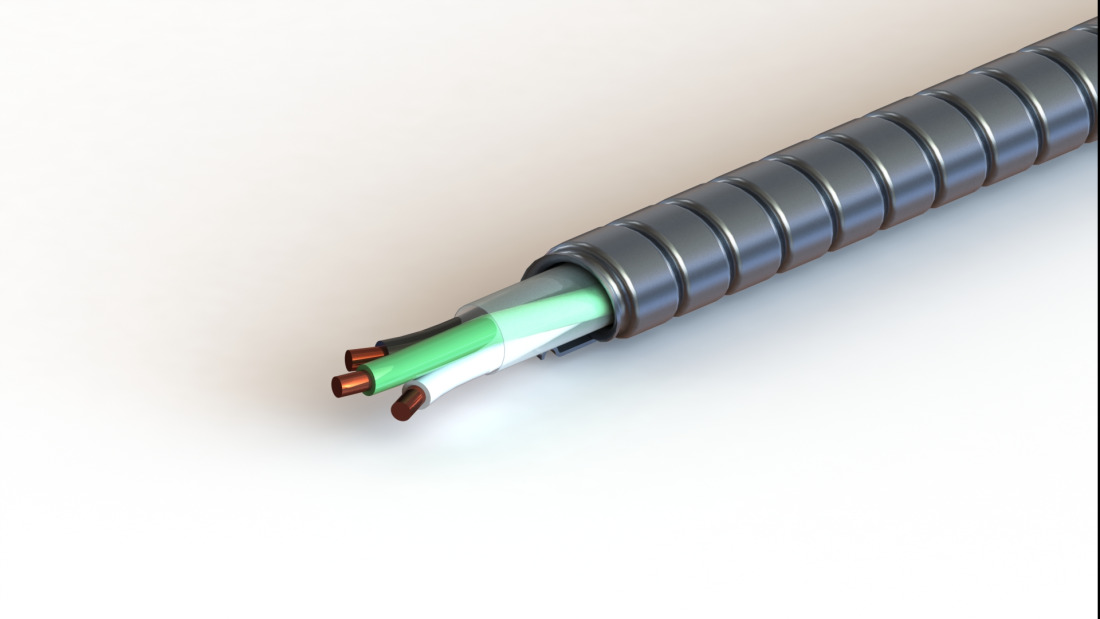

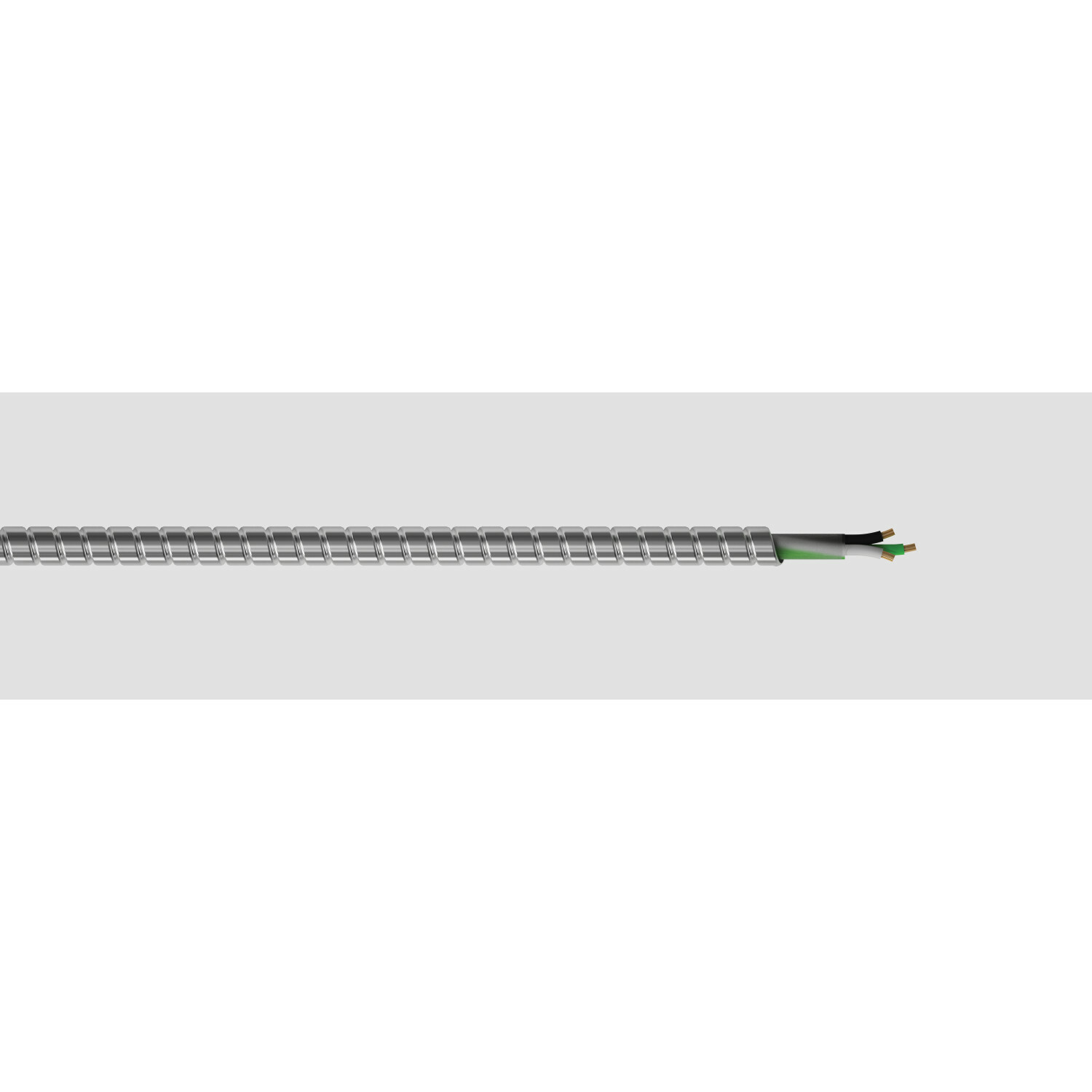

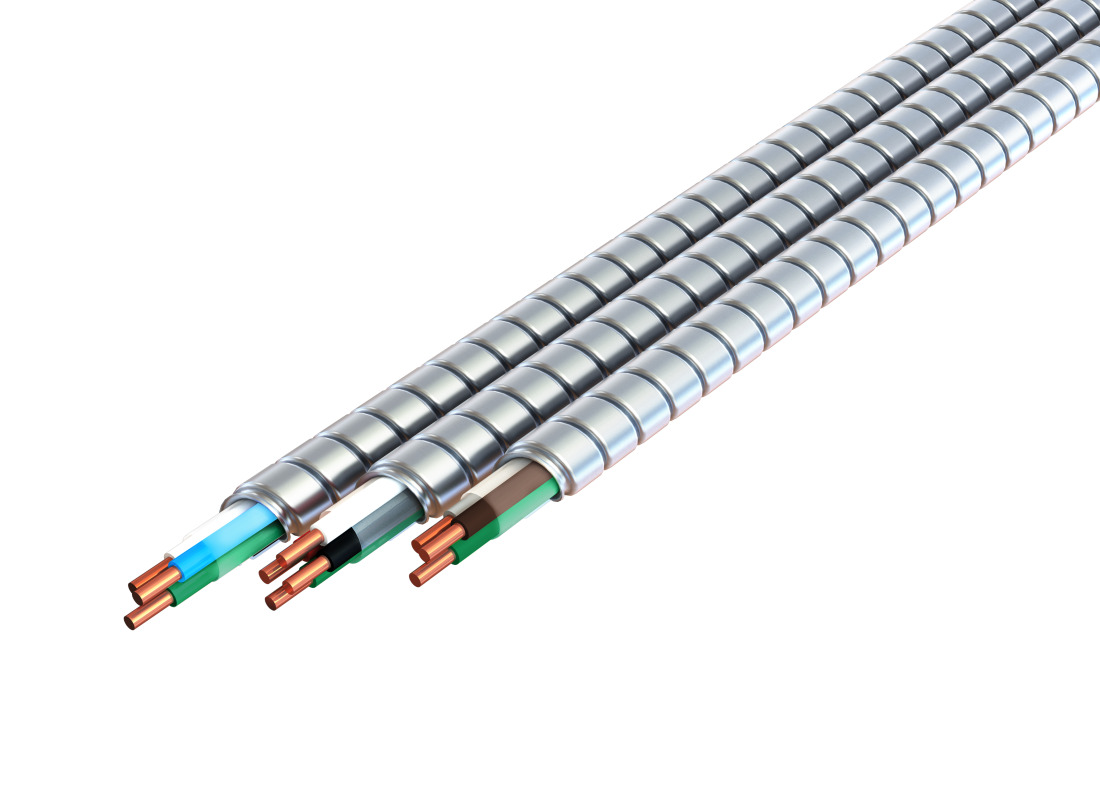

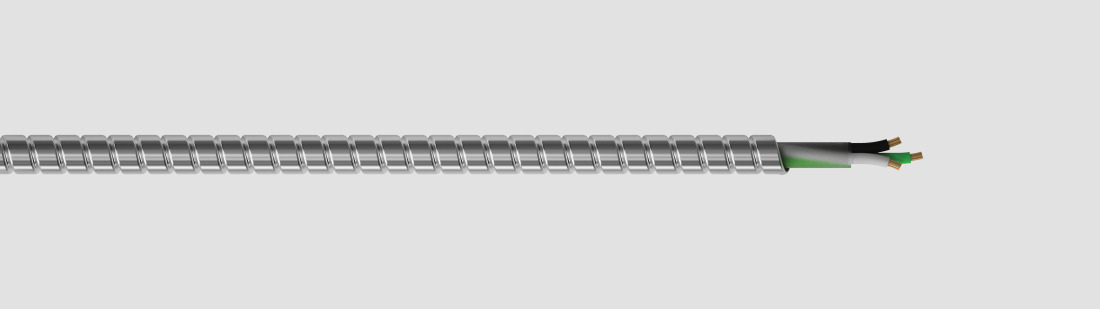

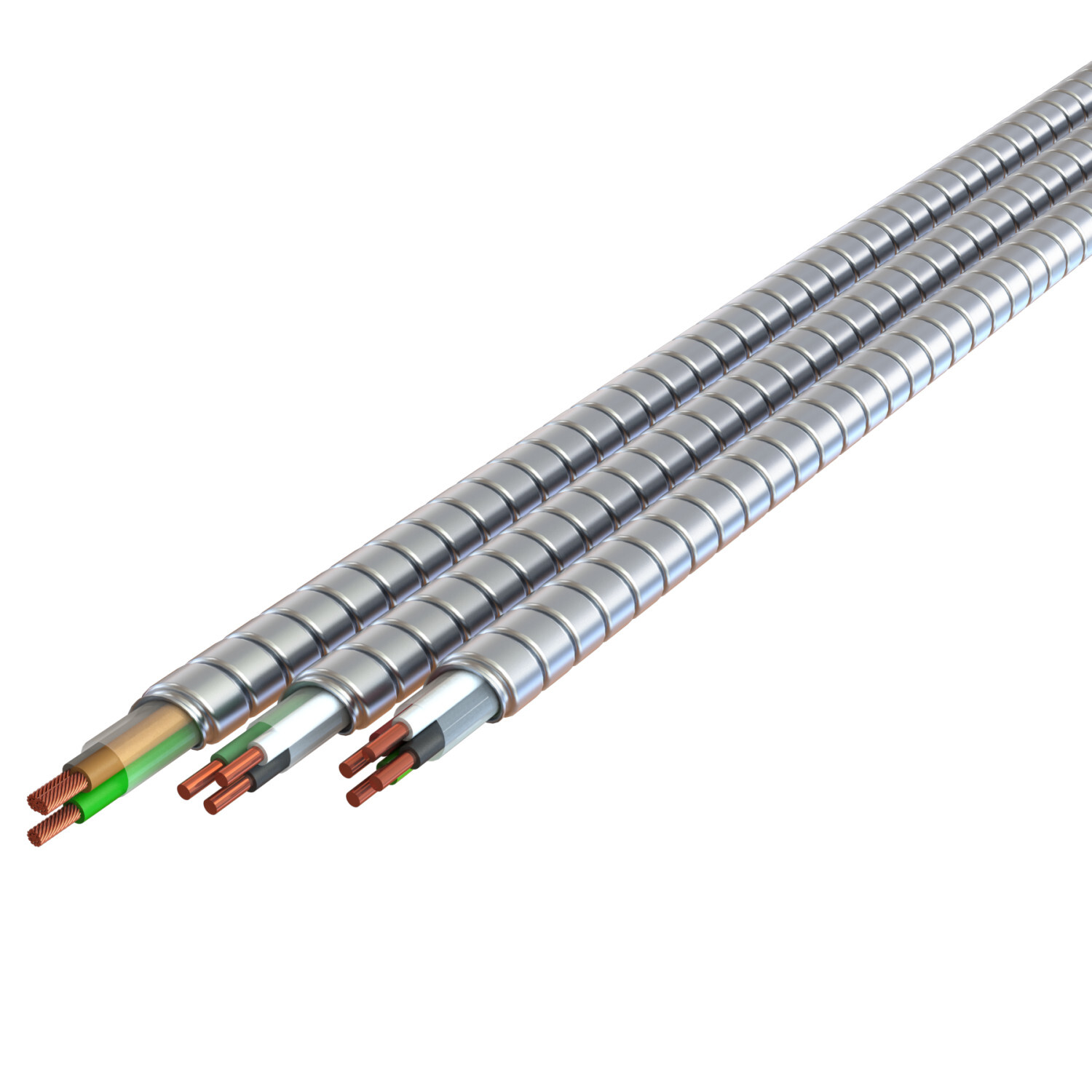

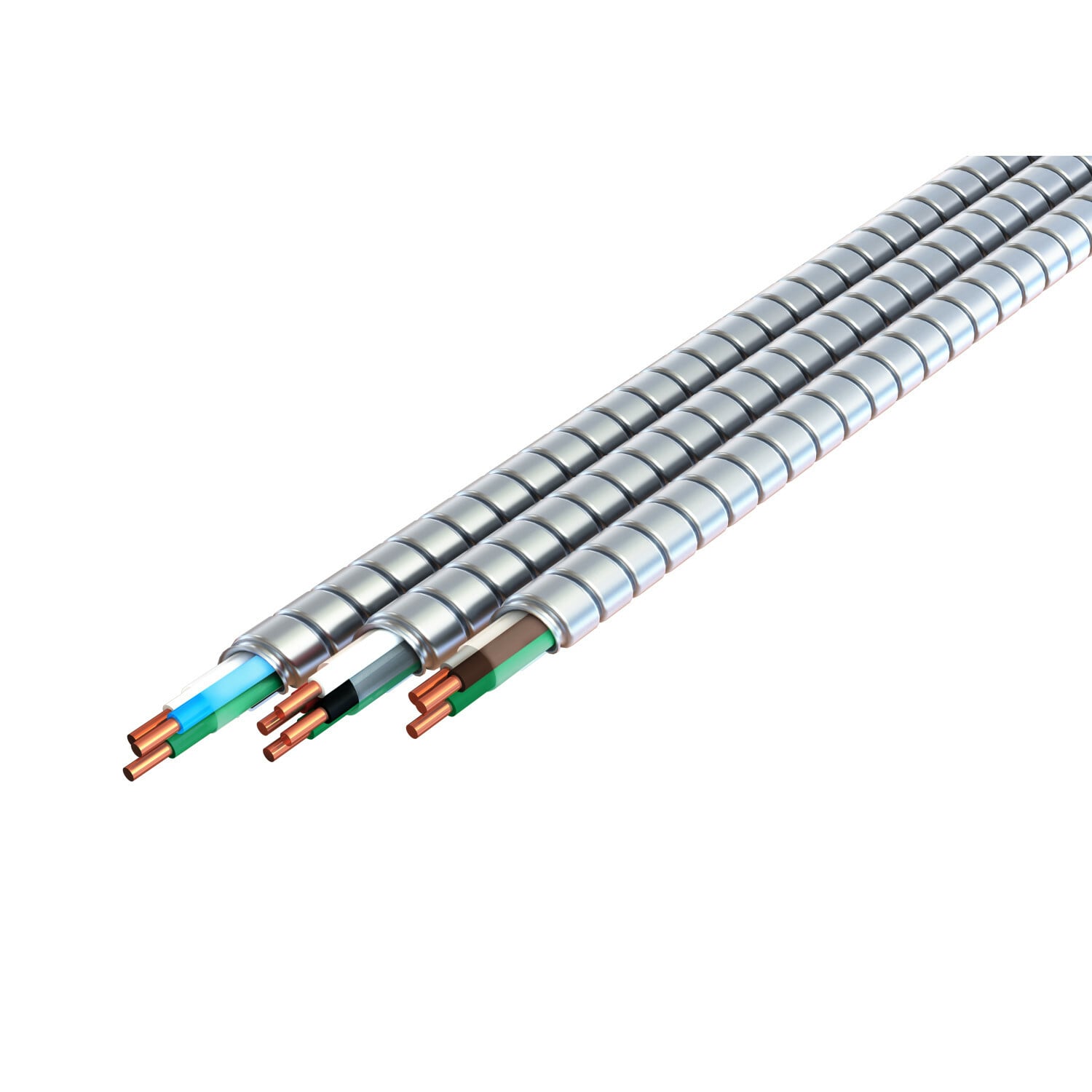

A004-42-01 MC Glide Lite Type MC Aluminum Armor Metal Clad Cable With 12/1 Green Insulated Copper Grounding Conductor, 600 V, (2) 12 AWG Solid Copper Conductor, 250 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- A004-42-01
- UPC:
- 077680351531
- Item #:
- 1420642
A004-42-01 MC Glide Lite Type MC Aluminum Armor Metal Clad Cable With 12/1 Green Insulated Copper Grounding Conductor, 600 V, (2) 12 AWG Solid Copper Conductor, 250 ft L
- MFR #:
- A004-42-01
- UPC:
- 077680351531
- Item #:
- 1420642
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Atkore's MC Glide is a Metal Clad (Type MC) Cable with a low-profile interlocked armor design that reduces worker fatigue and speeds up installation. Like its predecessor, MC Lite, MC Glide Lite has an aluminum interlocked armor that provides mechanical protection. These cables have no conductor count limit, offer various conductor bundle combinations, and meet UL Standard 1569 and NEC 330. They consist of THHN/THWN rated conductors twisted and wrapped with polypropylene assembly tape, and come with an insulated green equipment grounding conductor.
| Catalog Number | A004-42-01 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Color | Aluminum |
| Conductor Material | Copper |
| Number of Conductors | 3 |
| Standard | UL 83, 1479, 1569, 1581, 2556, File Reference E80042.NEC® 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645.Federal Specification A-A–59544 (formerly J-C–30B),Meets OSHA and HUD Requirements |
| UPC | 077680351531 |
| GTIN | 00077680351531 |
| Item Type | Metal Clad Aluminum Armored Cable |
| Length | 250 |
| Length UOM | Foot |
| Weight | 0.103 LB/FT |
| Outside Diameter | 0.46 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
