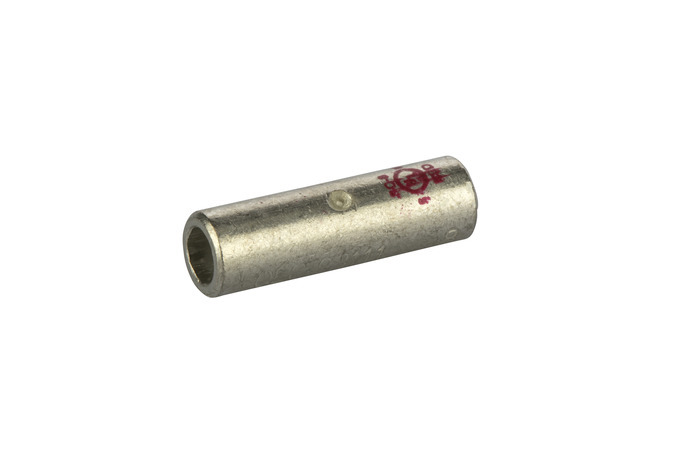

SC-8 SC Series Short Barrel Compression Splice, 8 AWG Stranded Conductor, 0.9 in L, Copper
- MFR:
- NSi Industries
- MFR #:
- SC-8
- UPC:
- 662381037008
- Item #:
- 142028
SC-8 SC Series Short Barrel Compression Splice, 8 AWG Stranded Conductor, 0.9 in L, Copper
- MFR #:
- SC-8
- UPC:
- 662381037008
- Item #:
- 142028
Availability
| Location | Available Qty |
|---|---|
| Available | 673 ea |
$8.399
each
StandardBarrel TinnedCopperSplice8 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manuals and Documentation
| Catalog Number | SC-8 |
| Manufacturer | NSi Industries |
| Brand | NSI |
| Country of Origin | India |
| Made in USA | No |
| Application | Terminate, Splice, Tap Power Connectors |
| Color | Red |
| Conductor Range | # 8 AWG (STR) |
| Finish | Tin Plated |
| Material | Copper |
| Number of Conductors | 2 |
| Special Features | # 8 AWG (STR) - CU Splice |
| Standard | UL486A/B, UL467 (8 AWG -3/0 AWG) |
| UPC | 662381037008 |
| GTIN | 00662381037008 |
| Item Type | Short Barrel - CU Splice |
| Size | L=.900 - OD=.270 - ID=.170 |
| Environmental Conditions | 90 C |
| Temperature Rating | 90 C |
| Voltage Rating | 600 V |
