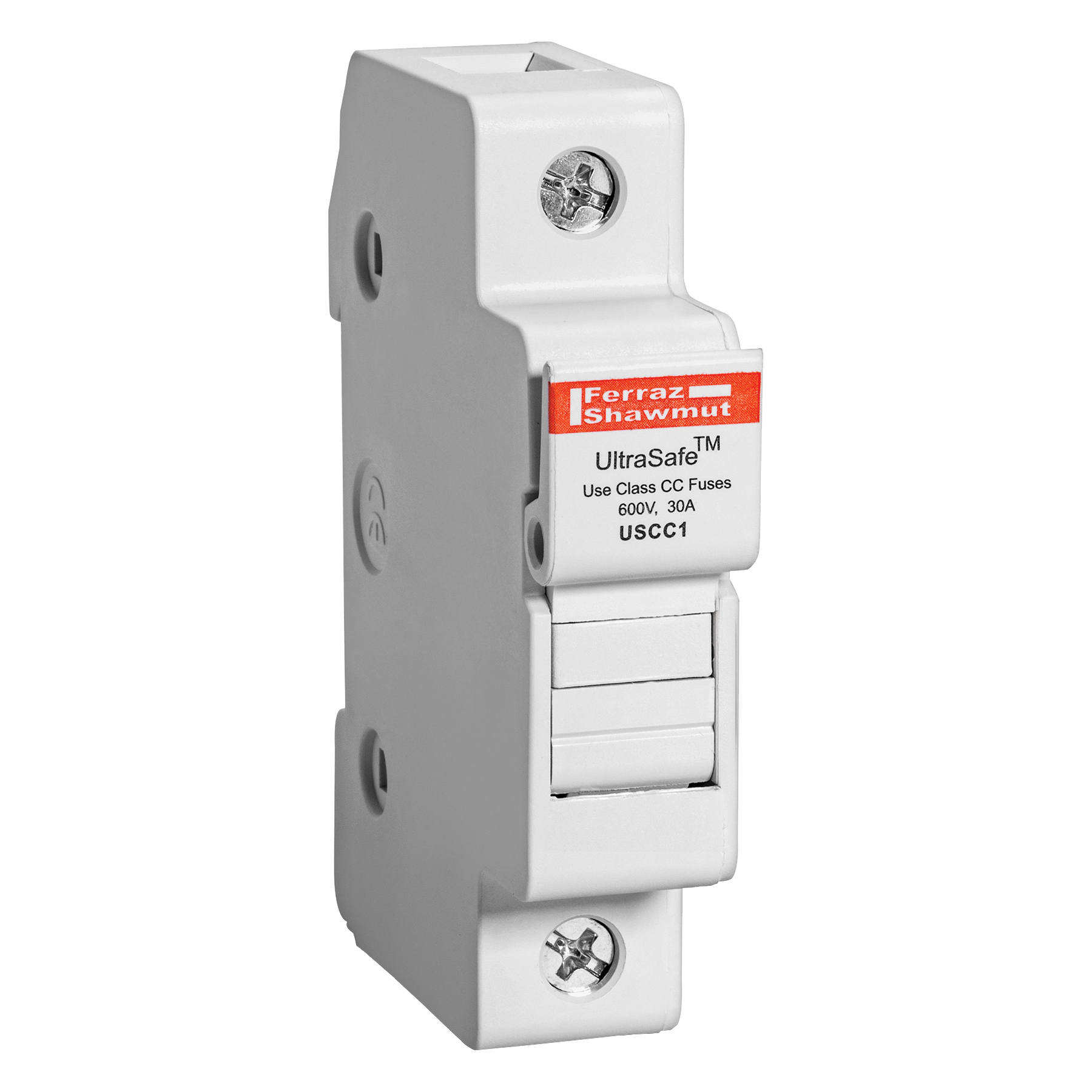

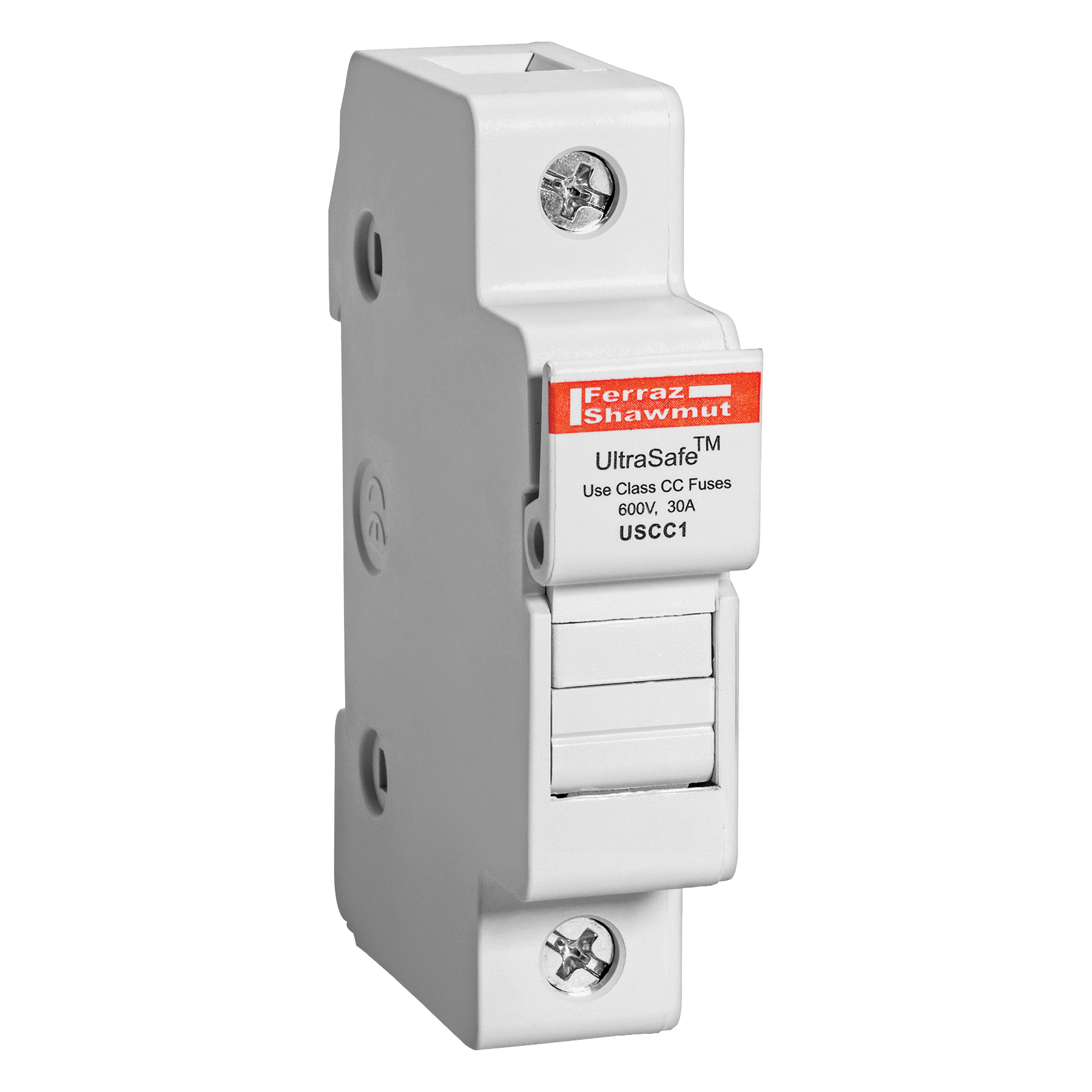

USCC1 UltraSafe Fuse Holder, 600 V AC/DC, 30 A, 14 to 6 AWG Wire, 1 Pole
- MFR:
- Mersen
- MFR #:
- USCC1
- UPC:
- 782001829865
- Item #:
- 141844
USCC1 UltraSafe Fuse Holder, 600 V AC/DC, 30 A, 14 to 6 AWG Wire, 1 Pole
- MFR #:
- USCC1
- UPC:
- 782001829865
- Item #:
- 141844
Availability
| Location | Available Qty |
|---|---|
| Available | 245 ea |
$103.71
each
Fuse Holder UltraSafe 600VAC 600VDC Class CC 30A 1-Pole Pressure Plate IP65
Manuals and Documentation
| Catalog Number | USCC1 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | All circuits up to 600 volts for motors, control circuits, transformers, etc… DC circuits up to 1000VDC including photovoltaic applications Non-load disconnect |
| Connection | Pressure Plate |
| Material | Glass Filled Polycarbonate |
| Mounting | Din Rail |
| Number of Poles | 1 |
| Phase | 1 |
| Special Features | IP20 Finger-Safe (touch safe) Optional visual blown fuse Indicator lights DIN-rail mounting Compact footprint Quick, tool-free, easy fuse change outs USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M USCC use with: ATDR, ATMR, ATQR ATM, DCT, ATMR recommended for DC applications |
| Standard | UL Listed to Standard 4248- 4 (class CC) and UL Recognized to Standard 4248-1 (midget), File E52283 UL Listed to standard 4248-18 (photovoltaic), File E347822 CSA Certified C22.2 IEC 60269-2-1 and 60947-3 Compliant (USM only) |
| UPC | 782001829865 |
| GTIN | 00782001829865 |
| Item Type | UL/CSA Fuse Holders |
| Size | 3.07 x 0.69 x 2.32 |
| Voltage Rating | 600 |
