SCHNEIDER ELECTRIC

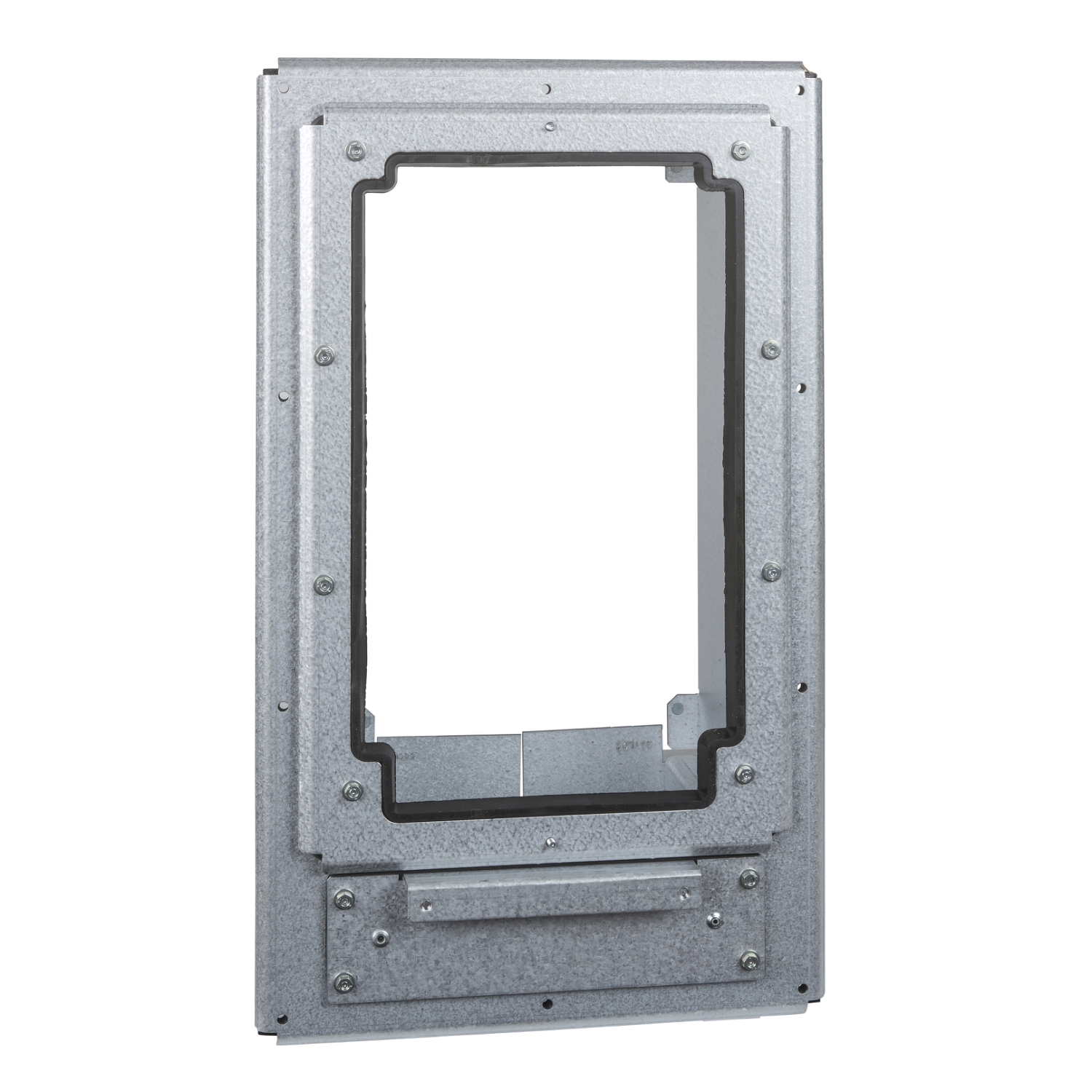

VW3A9514 Flange Mounting Kit, For Use With Altivar 61, Altivar 71, Altivar Process ATV600, Altivar Process ATV900 Variable Speed Drive

MFR:
Schneider Electric
MFR #:
VW3A9514
Item #:
1415931

Availability

Location Available Qty
Available Available to Order
$1,836.92 each

This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.

Manuals and Documentation
Catalog Number VW3A9514
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Application ATV61HC25N4D without braking unit;ATV61HC25Y without braking unit;ATV61HC31N4 without braking unit;ATV61HC31N4D without braking unit;ATV61HC31Y without braking unit;ATV61HC40Y without braking unit;ATV71HC20N4 without braking unit;ATV71HC20N4D without braking unit;ATV71HC20Y without braking unit;ATV71HC25N4 without braking unit;ATV71HC25N4D without braking unit;ATV71HC25Y without braking unit;ATV71HC28N4 without braking unit;ATV71HC28N4D without braking unit;ATV71HC31Y without braking unit;ATV61HC25N4;variable speed drive ATV600 250 kW, 380...480 V;variable speed drive ATV600 315 kW, 380...480 V;variable speed drive ATV900 250 kW, 380...480 V;variable speed drive ATV900 315 kW, 380...480 V;For mounting the drive power section outside the enclosure;Altivar 61;Altivar Process ATV600;Altivar 71;Altivar Process ATV900;Variable speed drive without braking unit
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6941524&lang=en-us
GTIN 03389119202039
