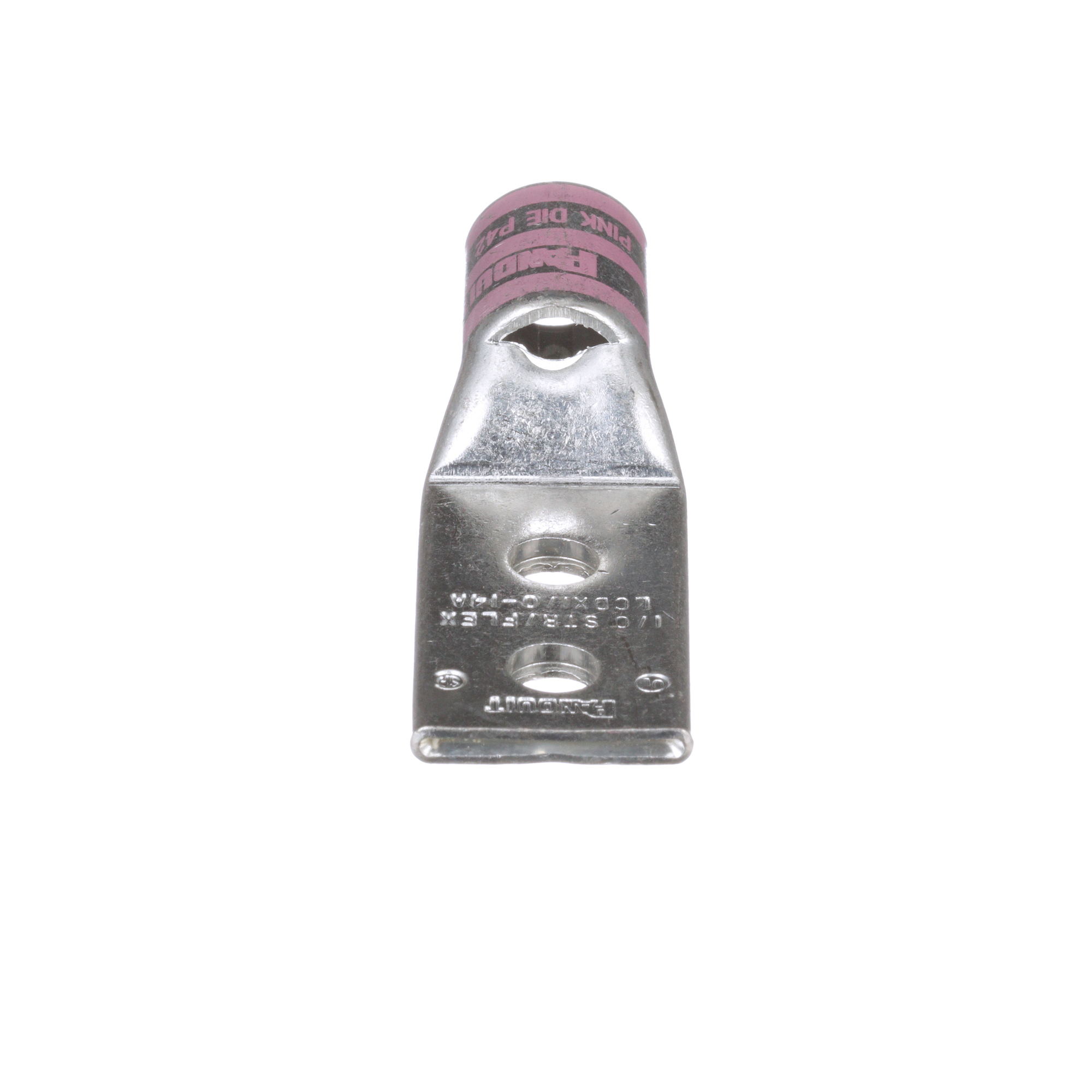

LCDX1/0-14A-X Pan-Lug 2-Hole Compression Connector Lug With Inspection Window, 1/0 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P42, 1/4 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCDX1/0-14A-X
- UPC:
- 074983423774
- Item #:
- 1414230
LCDX1/0-14A-X Pan-Lug 2-Hole Compression Connector Lug With Inspection Window, 1/0 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P42, 1/4 in Stud, Tin Plated Copper
- MFR #:
- LCDX1/0-14A-X
- UPC:
- 074983423774
- Item #:
- 1414230
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$15.2351
each
The LCDX1/0-14A-X Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Manuals and Documentation
| Catalog Number | LCDX1/0-14A-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Pink |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983423774 |
| GTIN | 00074983423774 |
| Item Type | Compression Lug |
| Size | 1/0 AWG Class B, C, G, H, I, K, M and DLO |
| Stud Size | 1/4 IN |
