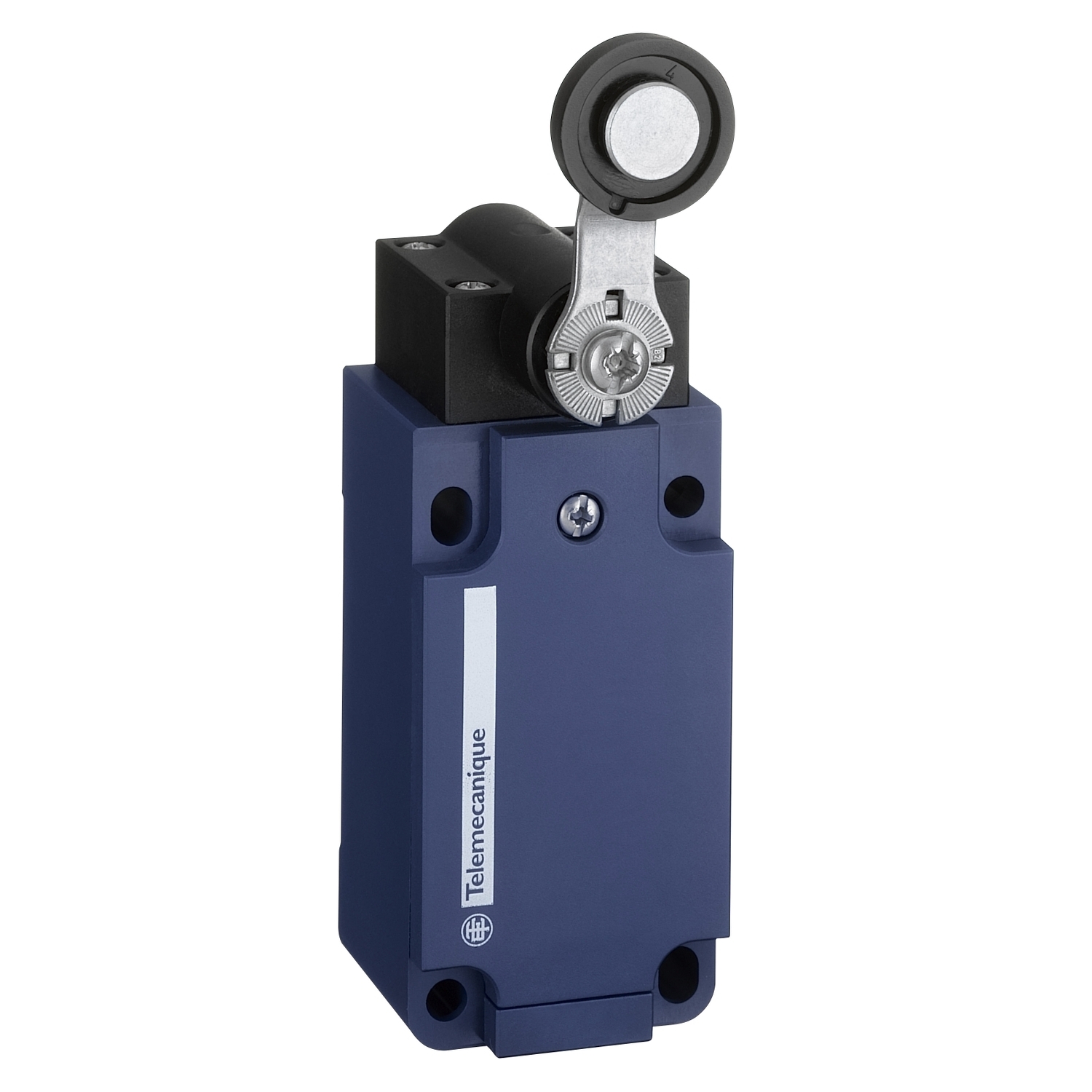

XCKS531H29 OsiSense XC Fixed Rotary Standard Format Limit Switch, 240 V AC, 10 A, Thermoplastic Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKS531H29
- Item #:
- 1414035
XCKS531H29 OsiSense XC Fixed Rotary Standard Format Limit Switch, 240 V AC, 10 A, Thermoplastic Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKS531H29
- Item #:
- 1414035
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$143.30
each
limit switch XCKS - thermoplastic roller lever - 1NC+1NO - slow-break - M20
Manuals and Documentation
| Catalog Number | XCKS531H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 1 or 2 programmable direction;Slow-break, break before make;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,IK05 EN 50102,IP67 IEC 60529-IP66 IEC 60529,UL 508-EN 60947-5-1-IEC 60947-5-1-CSA C22.2 NO 14-EN 60204-1-CENELEC EN 50041-IEC 60204-1,CLASS II IEC 61140-CLASS II NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857404&lang=en-us |
| GTIN | 03389110902549 |
| Item Type | Limit switch |
| Size | 2.36 |
| Operating Temperature | -25-70 A Degrees C |
