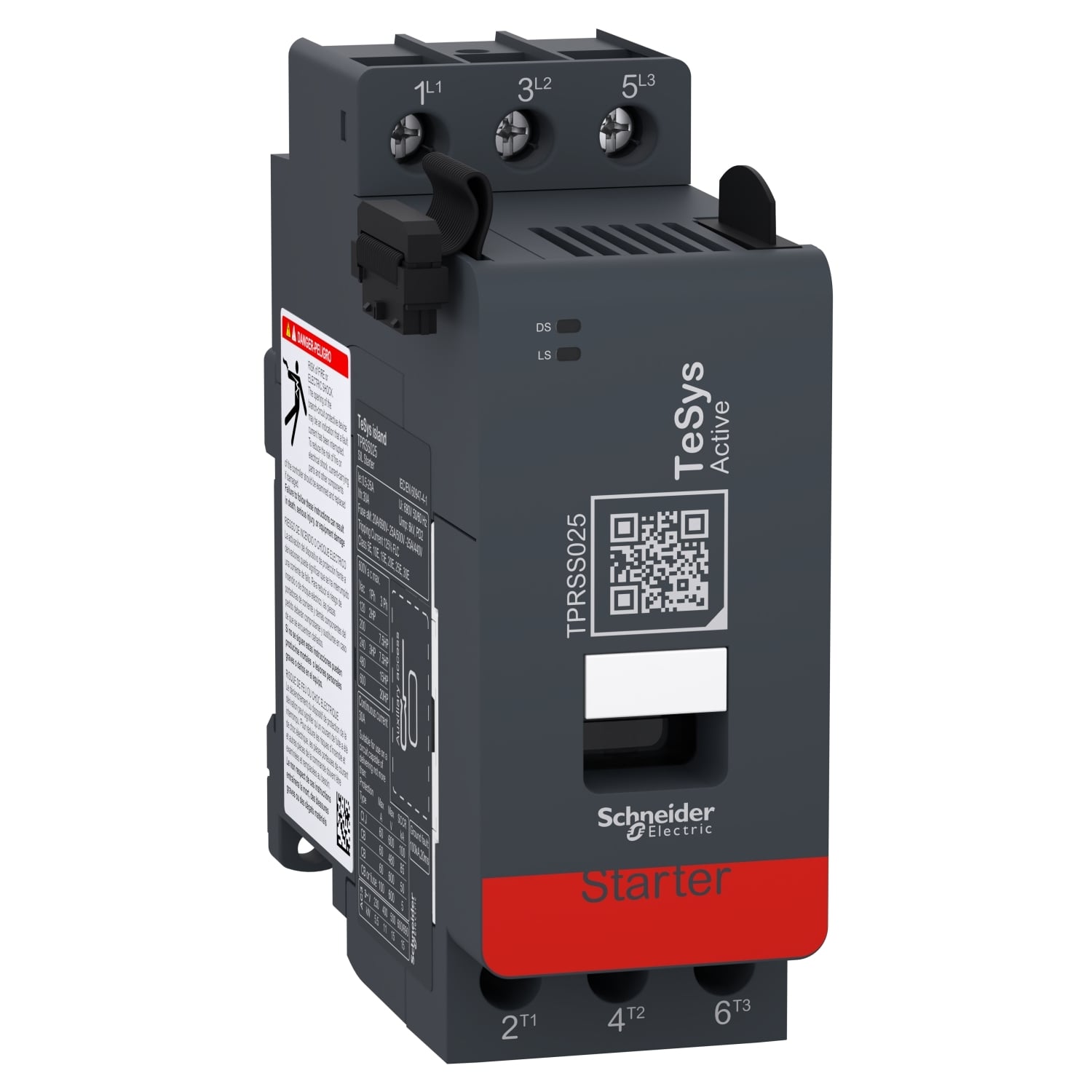

TPRSS025 TESYS Series, 24 VDC v coil, IP20 enclosure
- MFR:
- Schneider Electric
- MFR #:
- TPRSS025
- Item #:
- 1413675
TPRSS025 TESYS Series, 24 VDC v coil, IP20 enclosure
- MFR #:
- TPRSS025
- Item #:
- 1413675
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
TeSys island direct SIL starter, 3 poles, 25A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 25A and motors up to 11kW@400V / 15hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.5-25A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals and Documentation
| Catalog Number | TPRSS025 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471609911&lang=en-us |
| GTIN | 03606489832803 |
