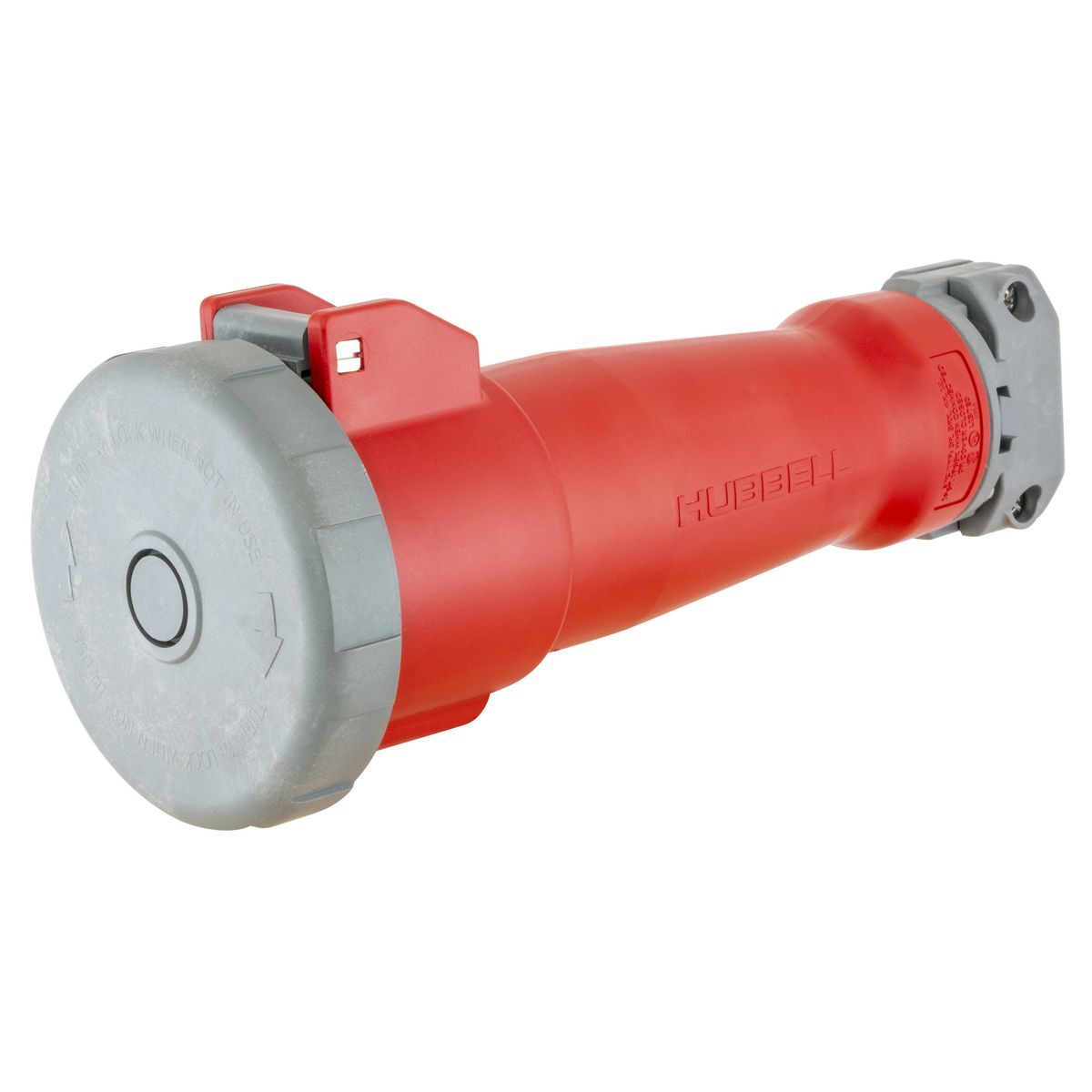

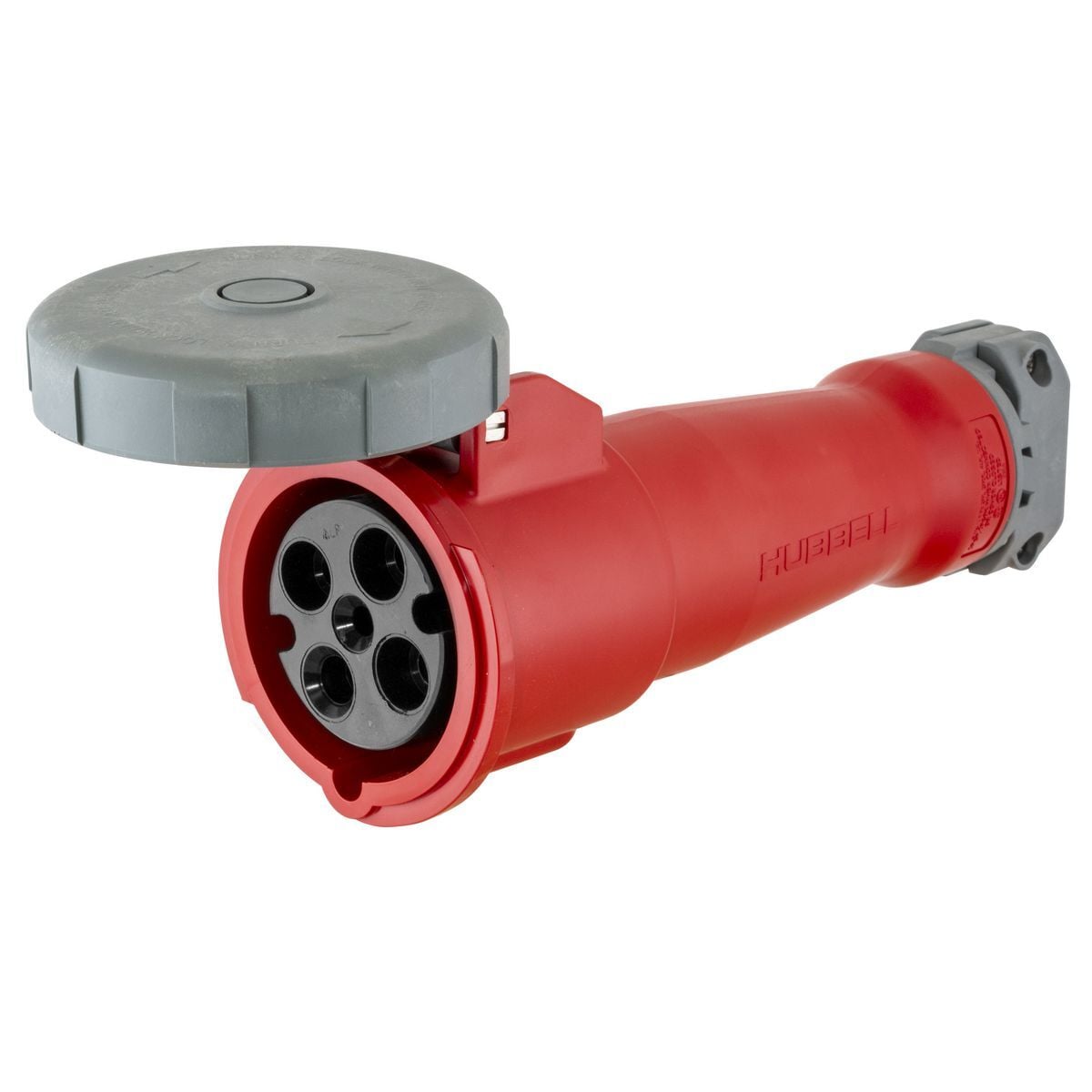

HBL420C6W Grounding Heavy Duty Female Multi-Phase Standard Pin and Sleeve Connector, 380/415 VAC, 16/20 A, 3 Poles, 4 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL420C6W
UPC:
783585574639
Item #:
1412283

Availability

Location Available Qty
Available Available to Order

Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.

Manuals and Documentation
Catalog Number HBL420C6W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Application High Ampacity Watertight Connections
Color Red
Conductor Range #14AWG to #10AWG
Connection Pressure Screw Terminal
Insulation Insulated Body
Material Thermoplastic
Mounting Cord
Number of Conductors 4-Wire Grounding
Number of Poles 3
Special Features Watertight
Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
UPC 783585574639
GTIN 00783585574639
Item Type Watertight Connector Body
Size Standard
Environmental Conditions Watertight
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 380-415
