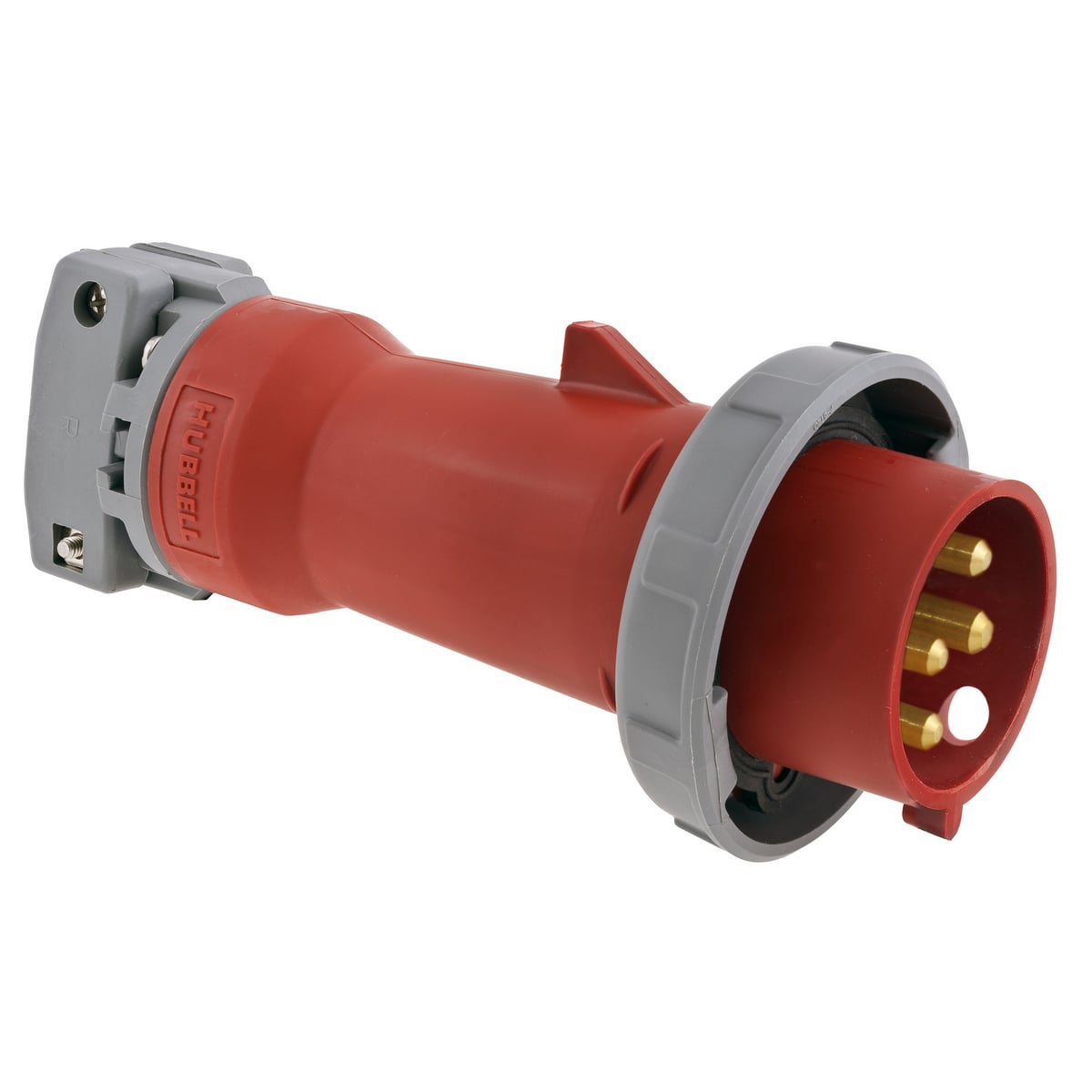

HBL420P6W Grounding Heavy Duty Male Multi-Phase Pin and Sleeve Plug, 380 to 415 V AC, 16/20 A, 3 Poles, 4 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL420P6W
UPC:
783585574646
Item #:
1412281

Availability

Location Available Qty
Available Available to Order
$272.73 each

Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.

Manuals and Documentation
Catalog Number HBL420P6W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Application High Ampacity Watertight Connections
Color Red
Connection Pressure Terminal Screws
Material Thermoplastic
Mounting Cord
Number of Poles 3
Number of Wires 4-Wire
Special Features Watertight
Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682
UPC 783585574646
GTIN 00783585574646
Item Type Watertight Plug
Size Standard Sized
Environmental Conditions Watertight
Voltage Rating 380-415
Wire Size #14 AWG to #10 AWG
