UTPCH2GRY PanNet Pan-Plug TX5e Patch Cord With Pan-Plug Modular Plugs, Cat 5e/Class D, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord, Green
- MFR:
- Panduit
- MFR #:
- UTPCH2GRY
- UPC:
- 074983165278
- Item #:
- 1411198
UTPCH2GRY PanNet Pan-Plug TX5e Patch Cord With Pan-Plug Modular Plugs, Cat 5e/Class D, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord, Green
- MFR #:
- UTPCH2GRY
- UPC:
- 074983165278
- Item #:
- 1411198
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$11.65
each

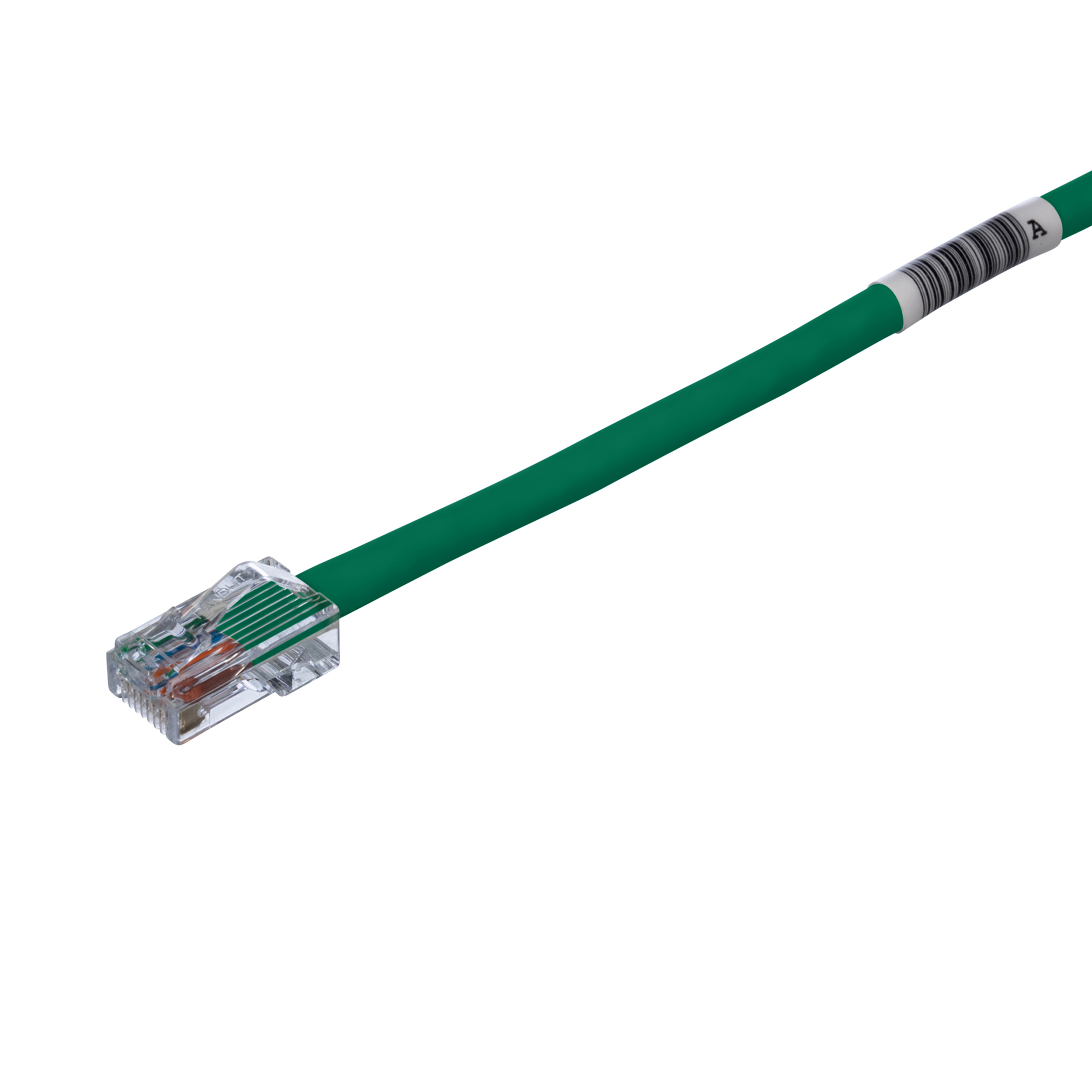

The TX5e Cat 5e UTP Patch Cord is a 2-Foot, Green cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | UTPCH2GRY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Color | Green |
| Conductor Material | Copper |
| Jacket Material | Polyvinyl Chloride |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8 |
| UPC | 074983165278 |
| GTIN | 00074983165278 |
| Item Type | Patch Cord |
| Length | 2.00 |
| Length UOM | Inch |
| Outside Diameter | 0.215 IN |
| Temperature Rating | 140 °F |
| Wire Size | 24 |
