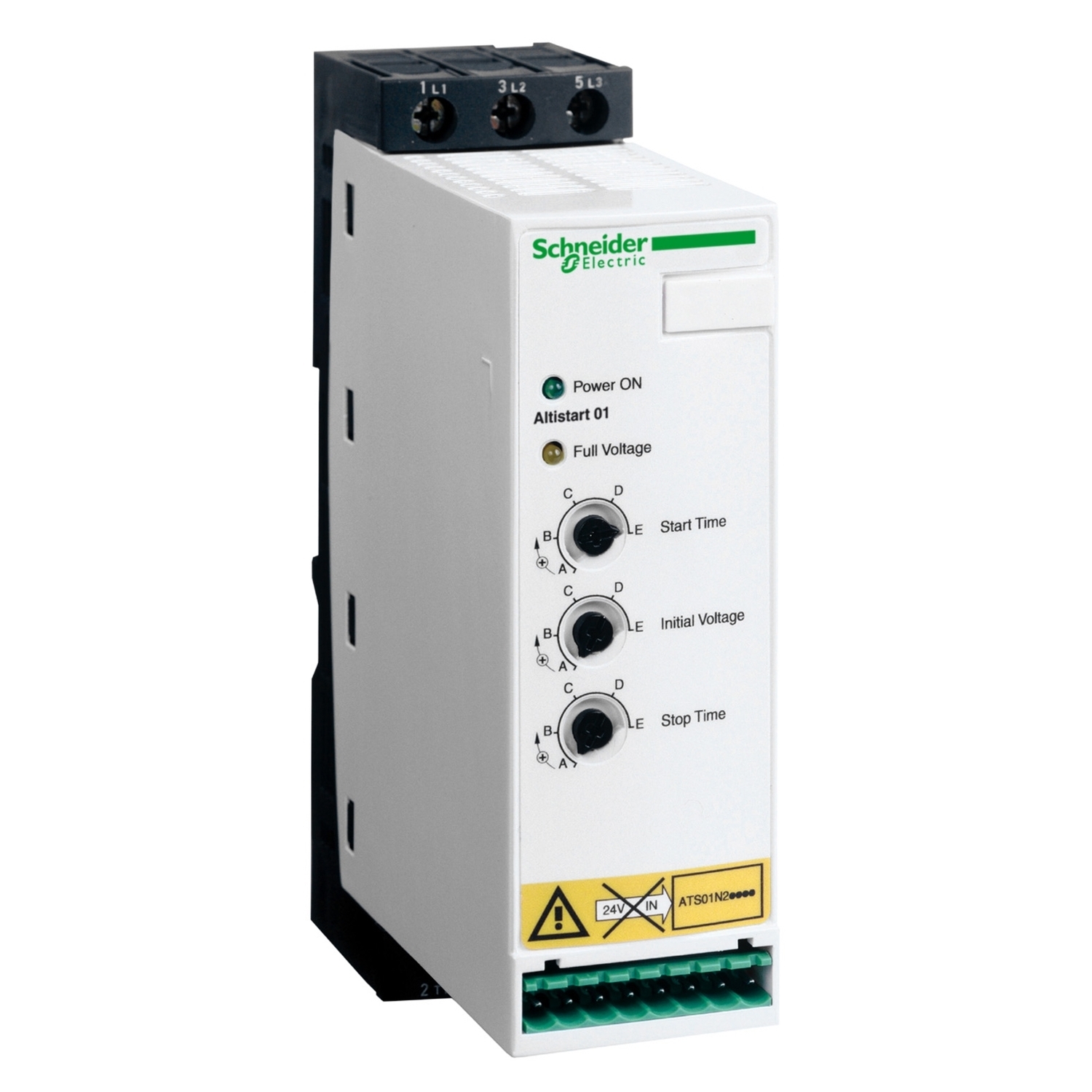

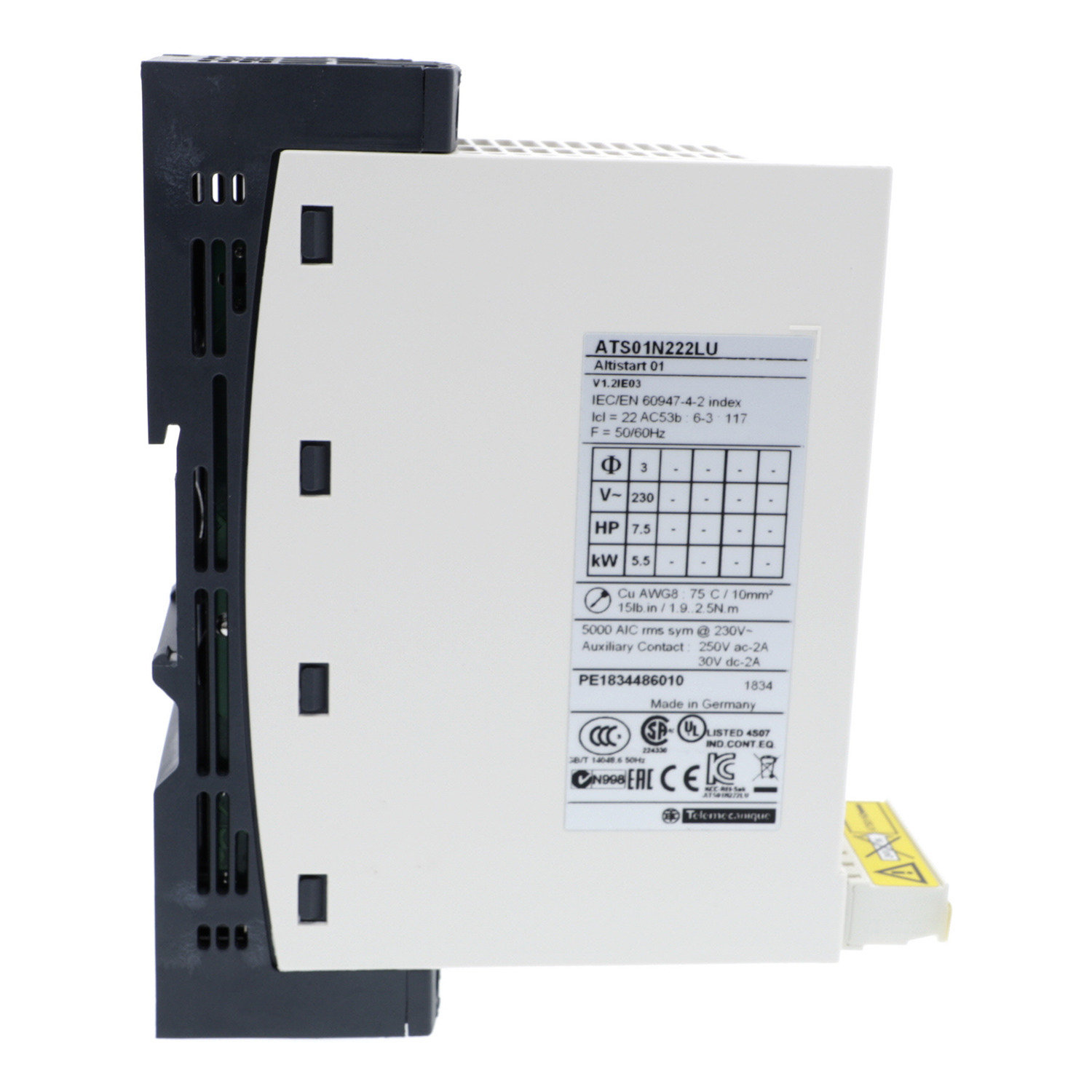

ATS01N222QN ATS01 Integrated Bypass Soft Starter, IP20 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- ATS01N222QN
- Item #:
- 1410990
ATS01N222QN ATS01 Integrated Bypass Soft Starter, IP20 Enclosure
- MFR #:
- ATS01N222QN
- Item #:
- 1410990
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

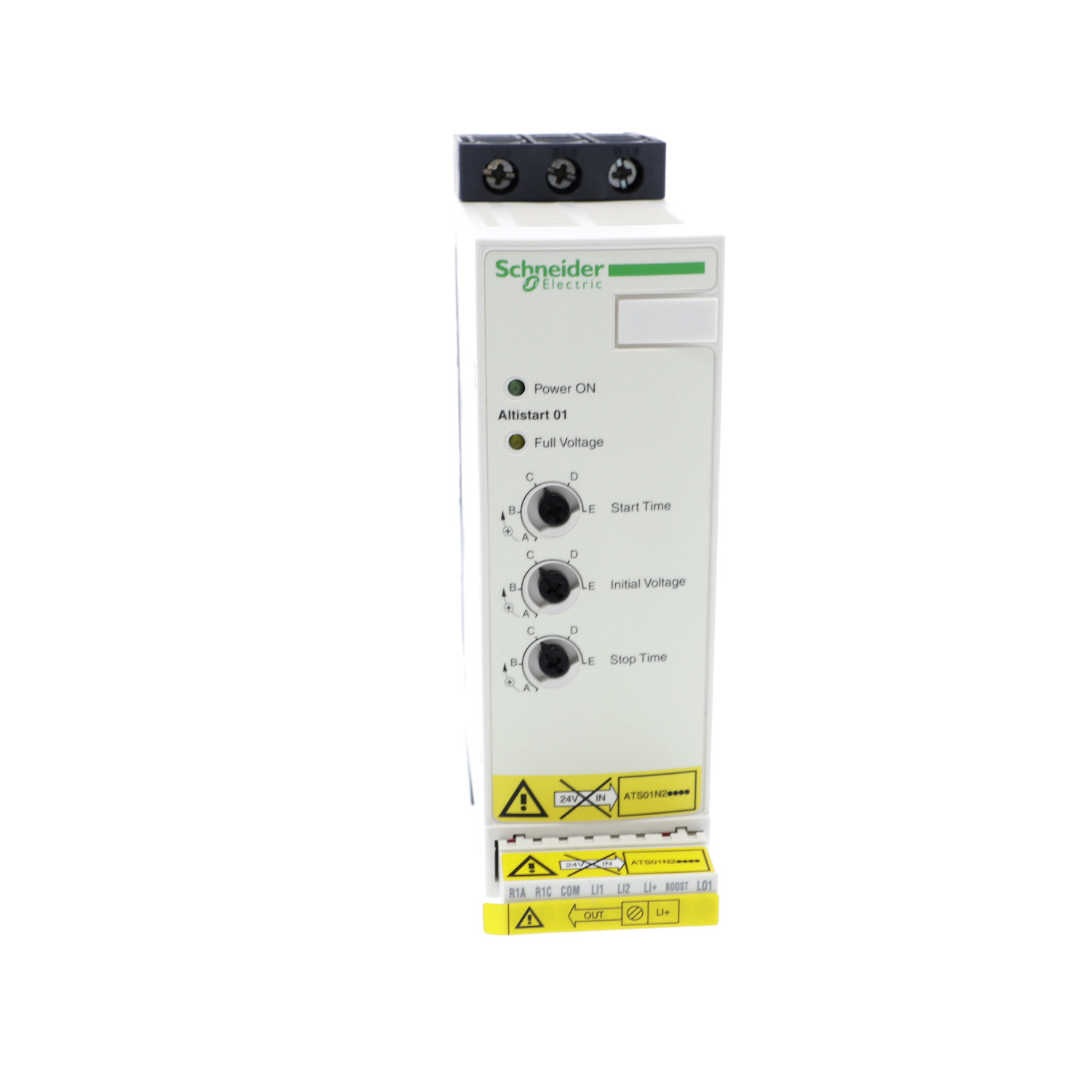

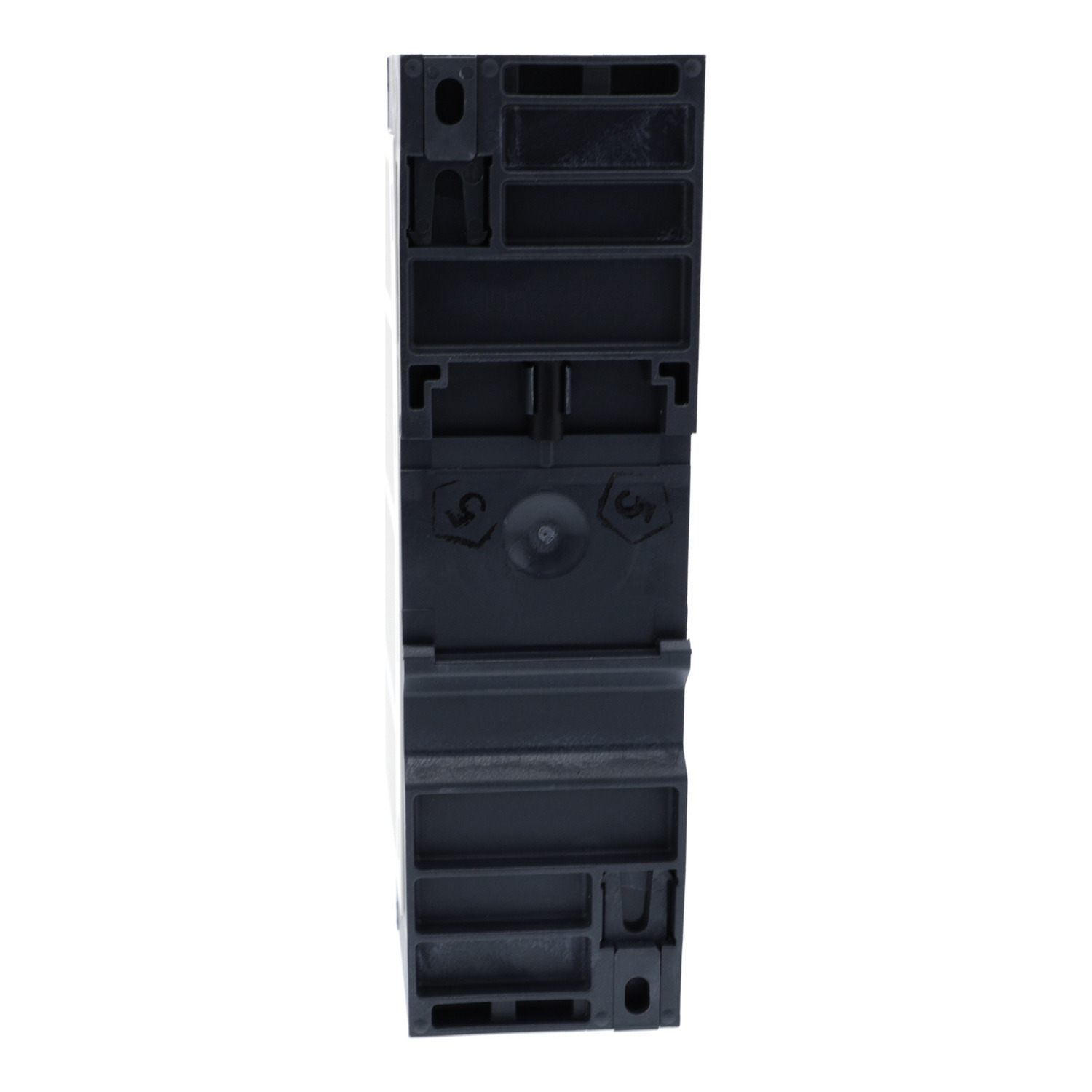

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 22A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Manuals and Documentation
| Catalog Number | ATS01N222QN |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Asynchronous motors;Simple machine |
| Connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit;screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit;4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit;screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit;screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit;4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit;screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit;4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit;4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit;screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit |
| Phase | 3 |
| Power Supply | 380...415 V - 10...10 %;50...60 Hz - 5...5 % |
| Special Features | Start with voltage ramp;Integrated bypass;With heat sink;1 LED Green)starter powered up;1 LED Yellow)nominal voltage reached;Open collector logic LO1 end of starting signal;relay outputs R1A, R1C NO |
| Standard | CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=714852&lang=en-us |
| GTIN | 03389110667318 |
| Item Type | Soft starter |
| Voltage Rating | <= power supply voltage |
