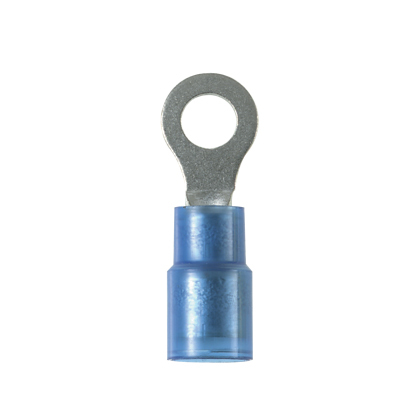

PN14-10RX-C Pan-Term Type PN-RX Ring Terminal, 14 AWG Conductor, 0.93 in L, Expanded Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PN14-10RX-C
- UPC:
- 074983800469
- Item #:
- 140926
PN14-10RX-C Pan-Term Type PN-RX Ring Terminal, 14 AWG Conductor, 0.93 in L, Expanded Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Blue
- MFR #:
- PN14-10RX-C
- UPC:
- 074983800469
- Item #:
- 140926
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1.516
each
The PN14-10RX-C Pan-Term Terminal is a nylon insulated, ring terminal with expanded wire entry for wire with larger insulation thickness. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals and Documentation
| Catalog Number | PN14-10RX-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Expanded Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983800469 |
| GTIN | 00074983800469 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
