BURNDY

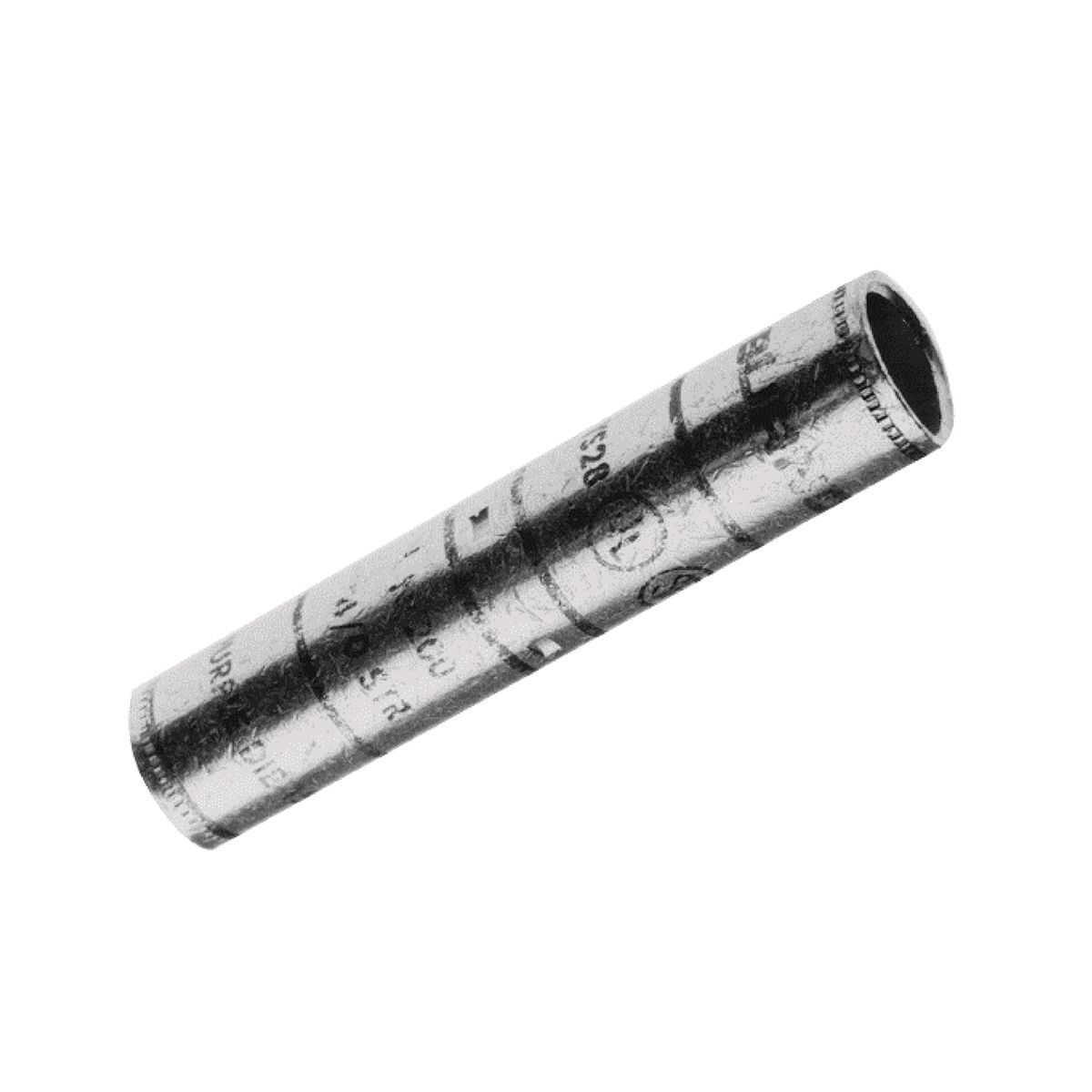

YS27 Type YS Long Barrel Compression Butt Splice, 3/0 AWG Conductor, 3.3 in L, Long Barrel, Copper, Orange

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS27
UPC:
781810507704
Item #:
140912

Availability

Location Available Qty
Available 9 ea
$50.62 each
Manuals and Documentation
Catalog Number YS27
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material COPPER
Special Features Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Oil Stop: No, Color Code: Orange, Tapered End: No, Die Index: 14 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R Tool, W27VT Die, (4), MD6, OUR840 Tool, X27RT Die, (5), Y35 , Y39, Y750 Tool, U27RT Die, (2), Y46 Tool, U27RT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 1-9/16 IN
Standard UL 486A-486B
UPC 781810507704
GTIN 00781810507704
Item Type YS, Long Barrel
Voltage Rating 35
Cross Reference Products CTL-3/0, C-3/0, 54811
