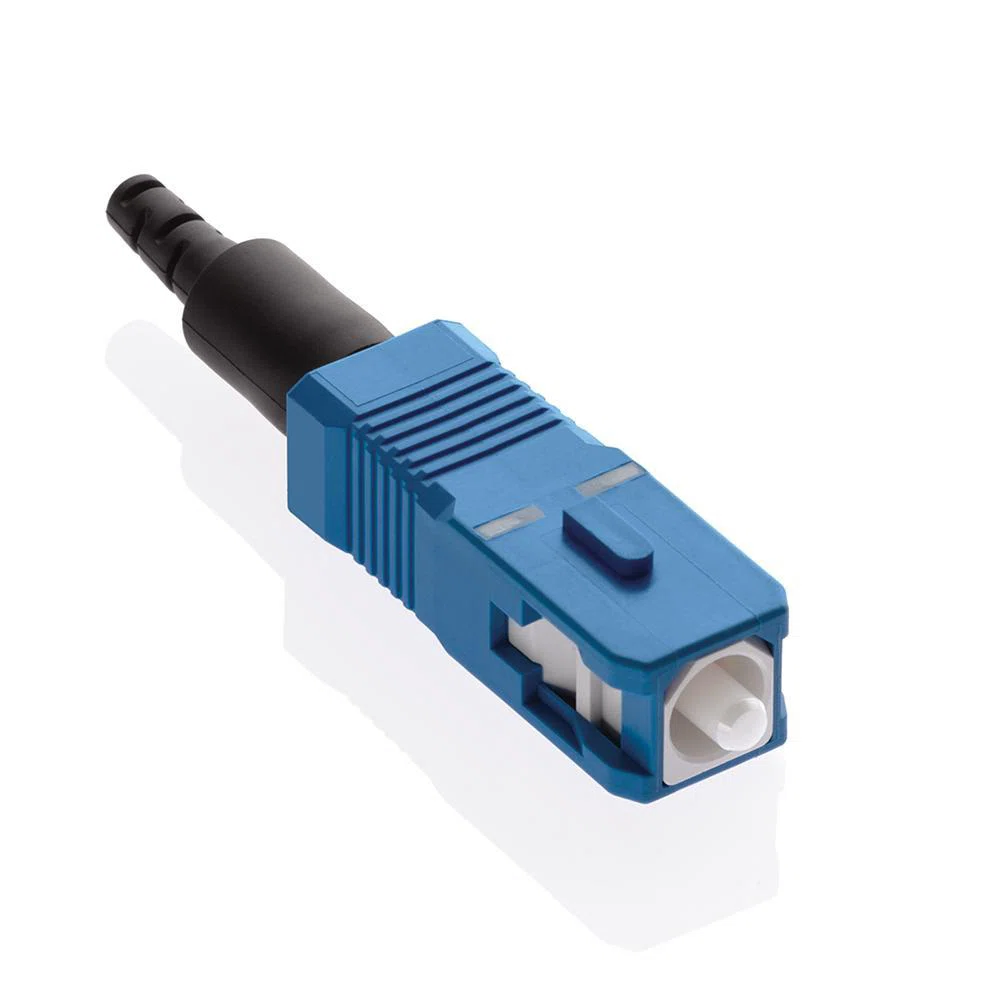

49991-SSC FastCAM Pre-Polished Field Installable Connector, SC Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule
- MFR:
- Leviton
- MFR #:
- 49991-SSC
- UPC:
- 078477297377
- Item #:
- 140911
49991-SSC FastCAM Pre-Polished Field Installable Connector, SC Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule
- MFR #:
- 49991-SSC
- UPC:
- 078477297377
- Item #:
- 140911
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$52.93
each
FastCAM® connectors are pre-polished, field installable connectors that eliminate the need for hand polishing, bonding or epoxy in the field. FastCAM® connectors are available in LC, SC or ST, singlemode or multi-mode (standard 50/125 um, 62.5/125 um and laser optimized 50/125 um) configurations terminated on 250 or 900 um buffered fiber and/or 2 or 3 mm jacketed fiber. LC and SC connectors allow verification of optical continuity, by use of the visual fault locator (VFL). FastCAM® connectors are designed for premise environments, patch panels and rapid repair/replacement requirements, as well as data centers and applications requiring fast network deployment.
Manuals and Documentation
Features
- Precision mechanical termination
- Fast and easy to install (<1 min)
- No polishing, epoxy curing, consumables
- No proprietary tools
- Low insertion loss connection
- Uses proven, molded V-groove technologies
- Higher yields with visual fault locator (VFL) compatible LC, SC and ST connectors
- 55 dB return loss
- -40 to 75 deg C temperature rating
| Manufacturer Part Number | 49991-SSC |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477297377 |
| Color | Blue |
| Connector Type | SC |
| Series | 49991 |
| Type | Pre-Polished |
| Alternative Part Number | 9428884 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | ANSI/TIA-568-C.3/604-3 | ISI 9001 Certified |
| Application | Commercial Applications |
| Ferrule Type | Pre-Radiused Zirconia |
| Fiber Type | OS2 Single Mode |
