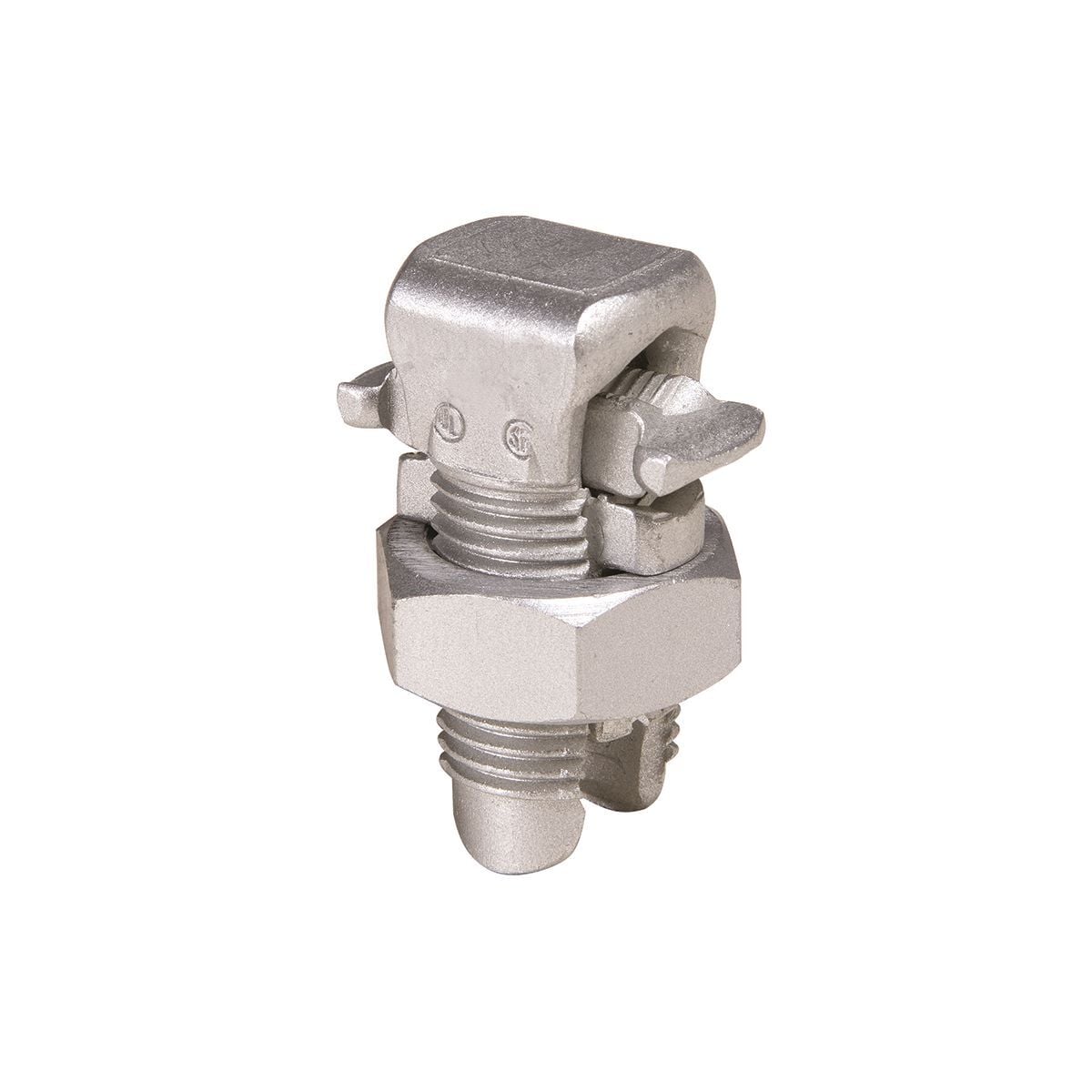

KSA500 Split Bolt Connector, (1) 2 AWG to 500 kcmil, 400 to 500 kcmil Conductor, 3.24 in L, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KSA500
- UPC:
- 781810153536
- Item #:
- 14086
KSA500 Split Bolt Connector, (1) 2 AWG to 500 kcmil, 400 to 500 kcmil Conductor, 3.24 in L, Aluminum
- MFR #:
- KSA500
- UPC:
- 781810153536
- Item #:
- 14086
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$276.96
each
Manuals and Documentation
| Catalog Number | KSA500 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated |
| Insulation | Y |
| Material | Aluminum |
| Special Features | Features: No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors, Facilitates Piercing The Aluminum Conductor Surface Oxides, UL 486B Listed, 90 DEG C Rated, Provides A Low Contact Resistance, Provides Equal Coefficient Of Expansion Inhibits The Reformation Of Oxides By Producing A Gas-Tight Seal, Provides Improved Retention Of Minimum To Maximum Conductor Combinations, Installation Torque: 825 IN-LB, Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Cross Flats: 2 IN, Length: 3.24 IN, Width: 1-1/2 IN |
| Standard | UL 486A-486B |
| UPC | 781810153536 |
| GTIN | 00781810153536 |
| Item Type | KSA |
| Temperature Rating | 194 |
