Pan-Lug LCAN3/0-38-X Comp. Lug, 3/0, Narrow, Tin Plt Copper, Strt, 3/8" Stud

MFR:
Panduit
MFR #:
LCAN3/0-38-X
UPC:
074983603381
Item #:
1406221

Availability

Location Available Qty
Available Available to Order
$19.0146 each

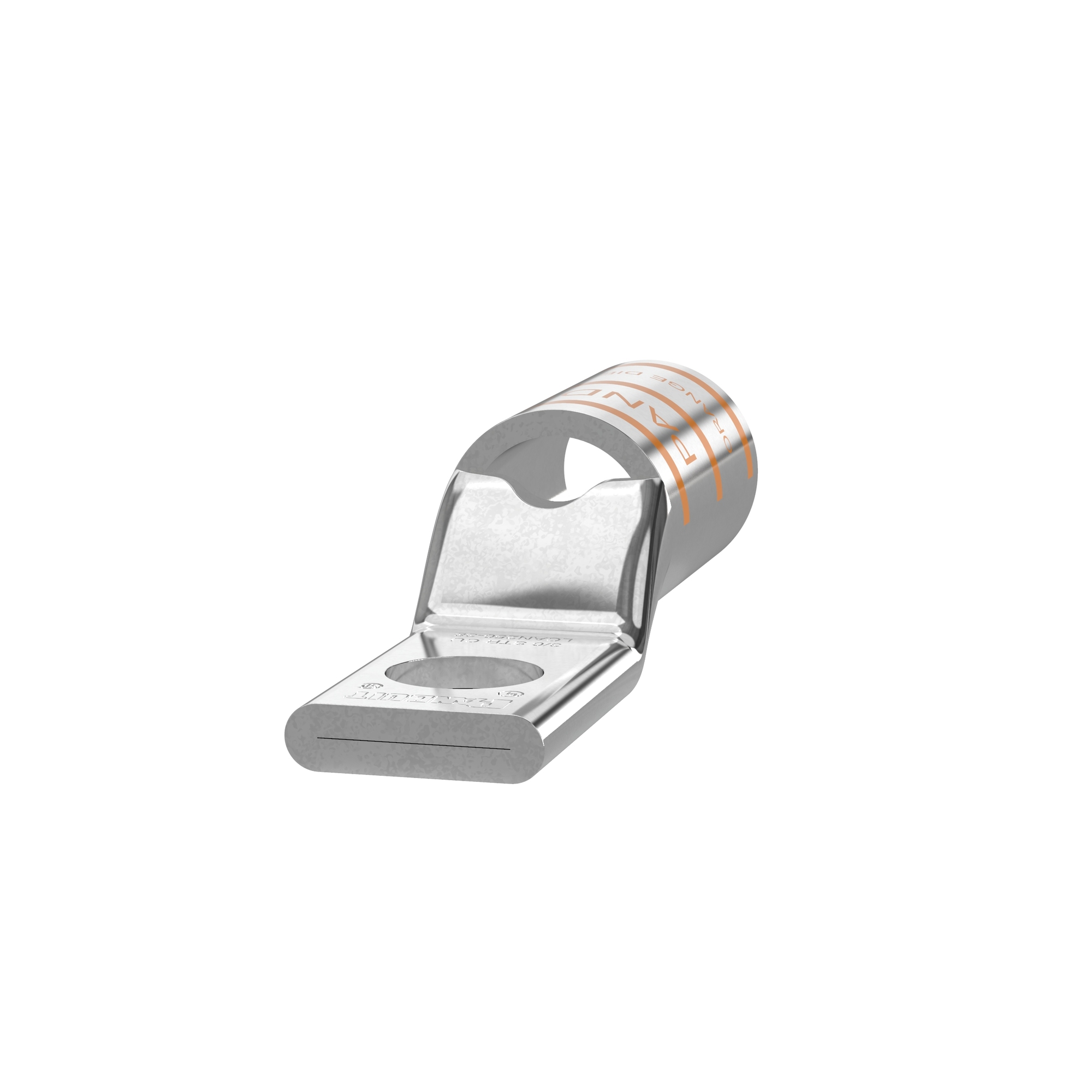

The LCAN3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.

Manuals and Documentation
Catalog Number LCAN3/0-38-X
Manufacturer Panduit
Brand Panduit
Country of Origin Mexico
Made in USA No
Color Orange
Material Tin-Plated Copper
Number of Holes 1
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard C22.2 No. 65-13, 486A-486B File #E52165
UPC 074983603381
GTIN 00074983603381
Item Type Compression Lug
Size 3/0 AWG Code
Stud Size 3/8 IN
Voltage Rating 35kV
