XB4BP21GEX Harmony XB4 Series, "

MFR:
Schneider Electric
MFR #:
XB4BP21GEX
Item #:
1404253

Availability

Location Available Qty
Available Available to Order
$100.36 each

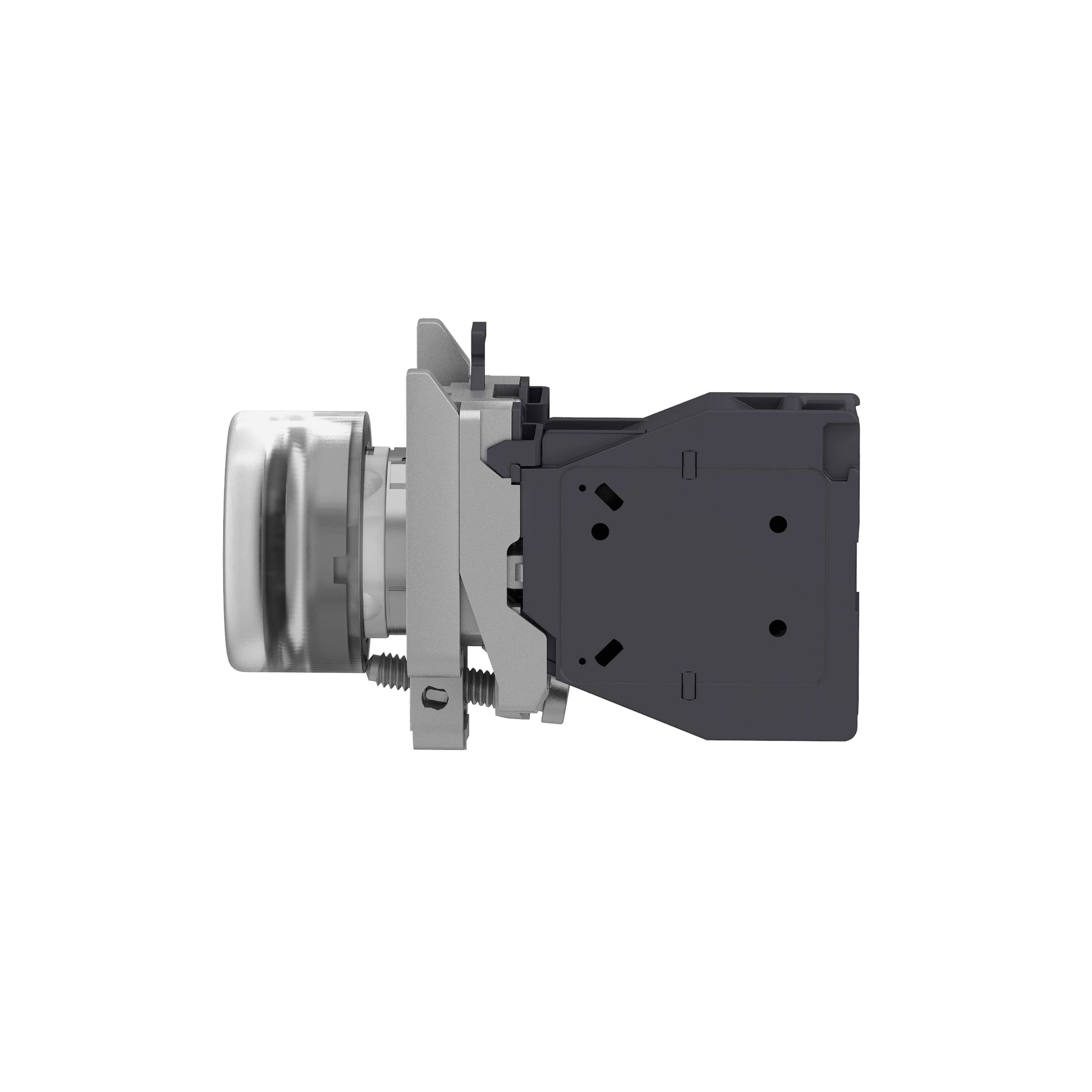

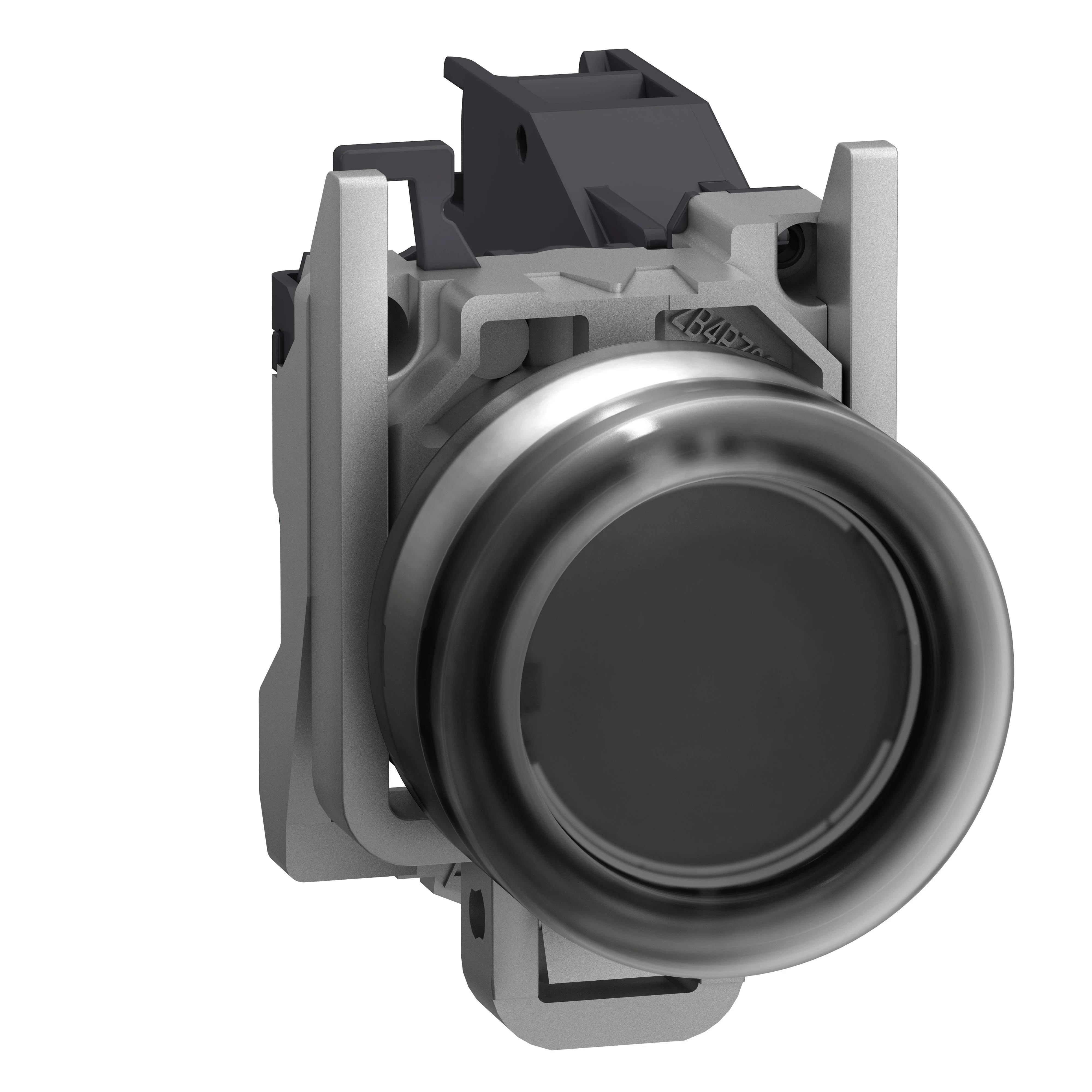

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This black pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Manuals and Documentation

Features

  • Metal bezel making it ideal for severe environments
  • Simple design for easy installation, servicing, modification and adaption
  • Compatible with standard 22mm cutout
  • High lifetime and less maitanence due to simple spring return mechanism
  • Easy replacement and servicing due to screw clamp connection
  • High vibration resistance with shake proof terminal screws
Manufacturer Part Number XB4BP21GEX
Brand Schneider Electric
Manufacturer Schneider Electric
EAN 3606489485849
Color Black
Dimensions 1.18 in H x 1.82 in W x 2.83 in D
Material Chromium plated metal
Mounting Type Panel
Series Harmony XB4 Series
Manufacturer Item Status Active
Country USA
Standards Approvals INERIS 04ATEX9004U | EN/IEC 60079-0:2009EN/IEC 60079-1:2009EN/IEC 60079-7:2009EN/IEC 60079-31:2009UL 60079-0UL 60079-1UL 60079-31ANSI/ISA 12.121CSA C22.2 No 213 | PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Actuator Type Round
Operator Type spring return
