Telemecanique

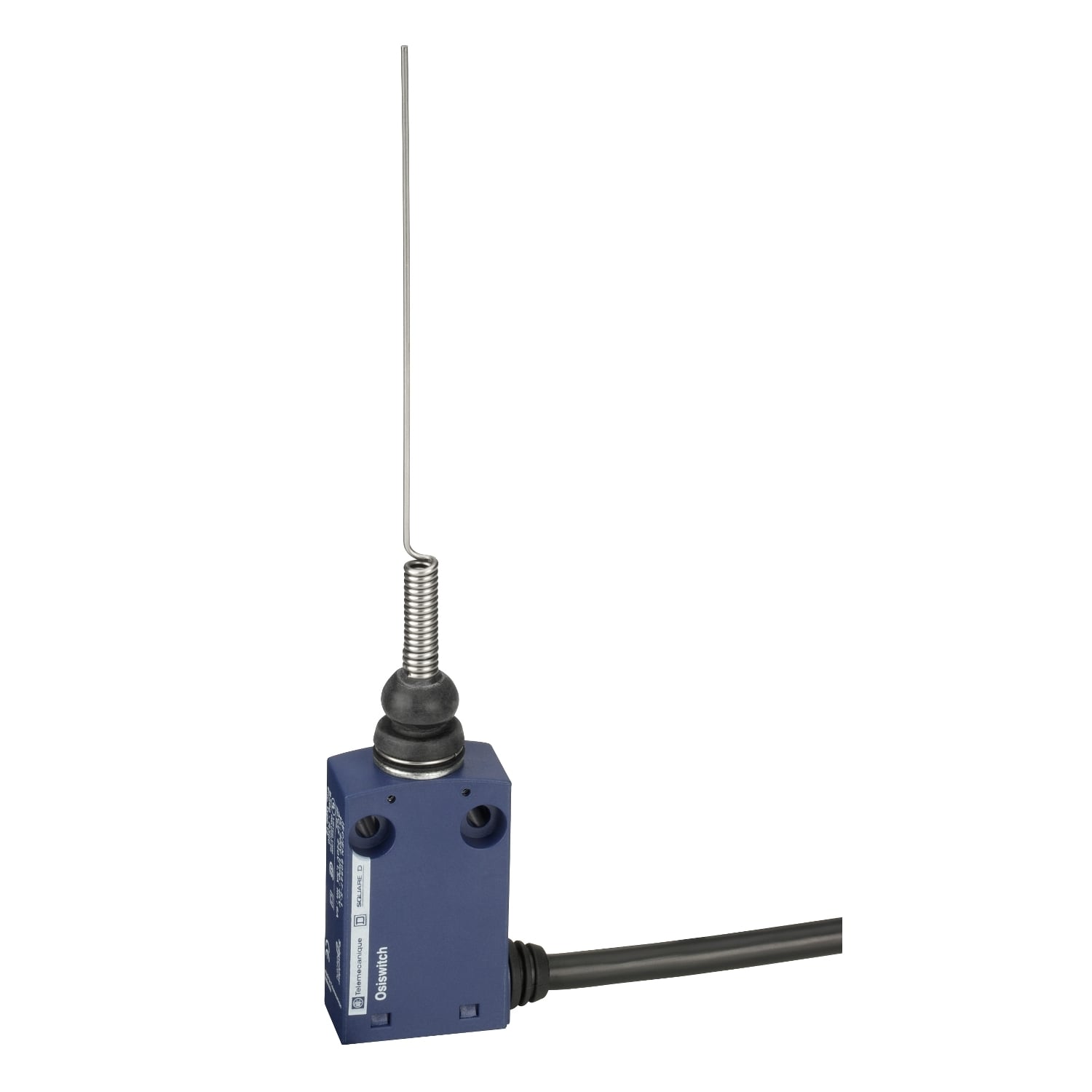

XCMN2106L1 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 5 A, Cats Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMN2106L1
UPC:
785901665175
Item #:
140368

Availability

Location Available Qty
Available Available to Order
$62.21 each

limit switch XCMN - cat's whisker - 1NC+1NO - snap - 1 m

Manuals and Documentation
Catalog Number XCMN2106L1
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Multi-directional approach;Snap action;By any moving part
Actuator Spring return cat''s whisker
Application MINIATURE BASIC
Connection Fixed cable
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-UL-CSA,EN/IEC 60204-1-UL 508-CSA C22.2 NO 14-EN/IEC 60947-5-1,IK04 EN 50102,IP65 IEC 60529,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857946&lang=en-us
UPC 785901665175
GTIN 03389110215052
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
