Telemecanique

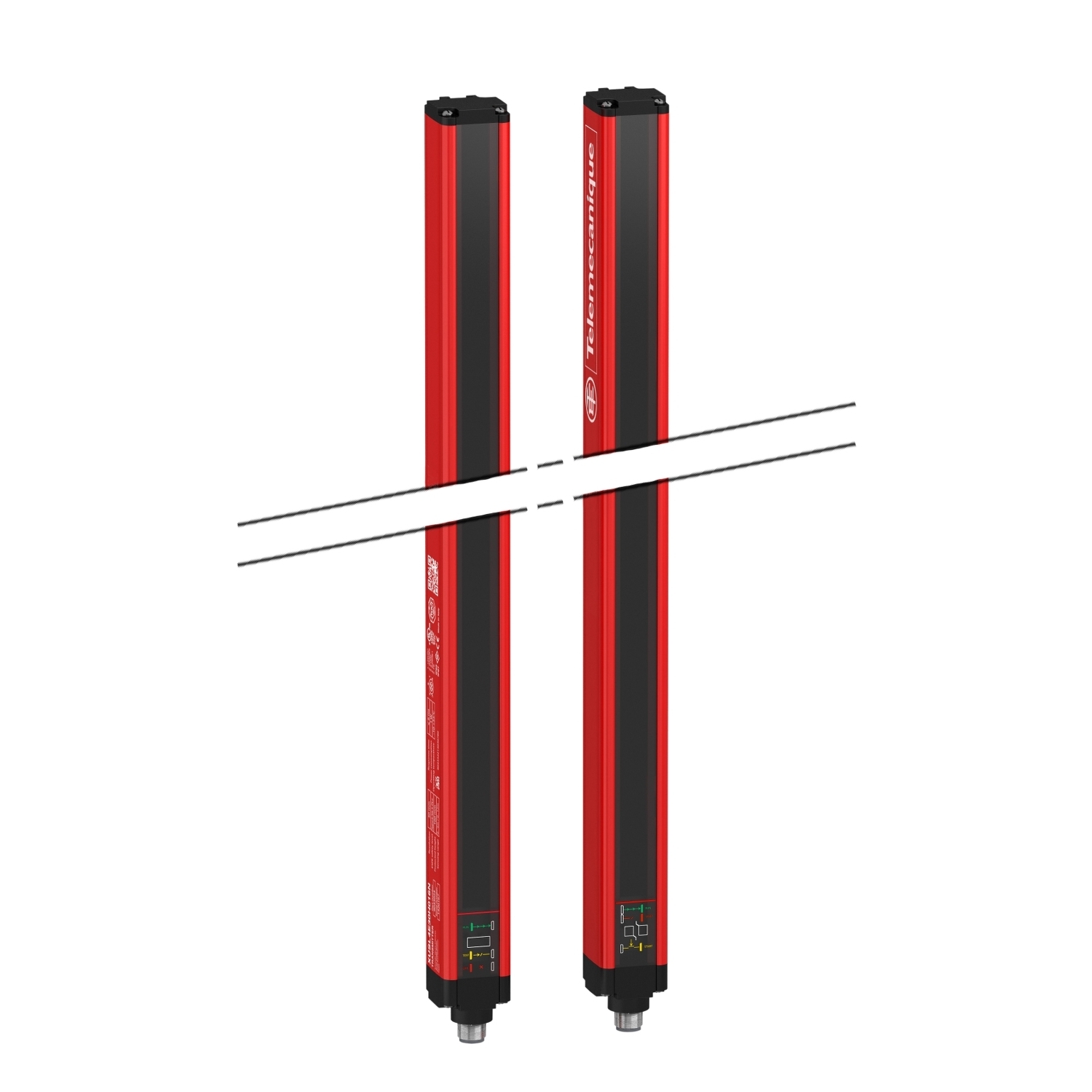

XUSL4E14F031N Preventa Type 4 Safety Light Curtain, 310 mm H Protected, 1 to 6/0 to 3 m by Cabling Operating, 30 Beams

MFR:
Telemecanique Sensors
MFR #:
XUSL4E14F031N
UPC:
785901735632
Item #:
1403000

Availability

Location Available Qty
Available Available to Order
$2,187.05 each

This XUSL4E Type 4 Safety Light Curtain is designed for finger detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 30 light beams with a protected height of 310mm. Its PFHD reliability data is 1.27 x 108. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -20C to +55C and the sensing distance is 0m to 3m or 1m to 6m selectable by wiring.

Manuals and Documentation
Catalog Number XUSL4E14F031N
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application For finger protection
Connection 1 male connector M12 5 pins transmitter;1 male connector M12 8 pins receiver
Light Source IR LED 950 nm
Mounting By Fixing Brackets
Power Supply Power supply IEC 61496-1;power supply IEC 60204-1
Response Time 5.5 ms
Special Features Test;muting through external safety module XPSLCMUT1160;LED display of operating modes and faults
Standard CE
Supply Voltage 24 V DC +/- 20 %
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=388526732&lang=en-us
UPC 785901735632
GTIN 03389119618199
Item Type Safety light curtain type 4
