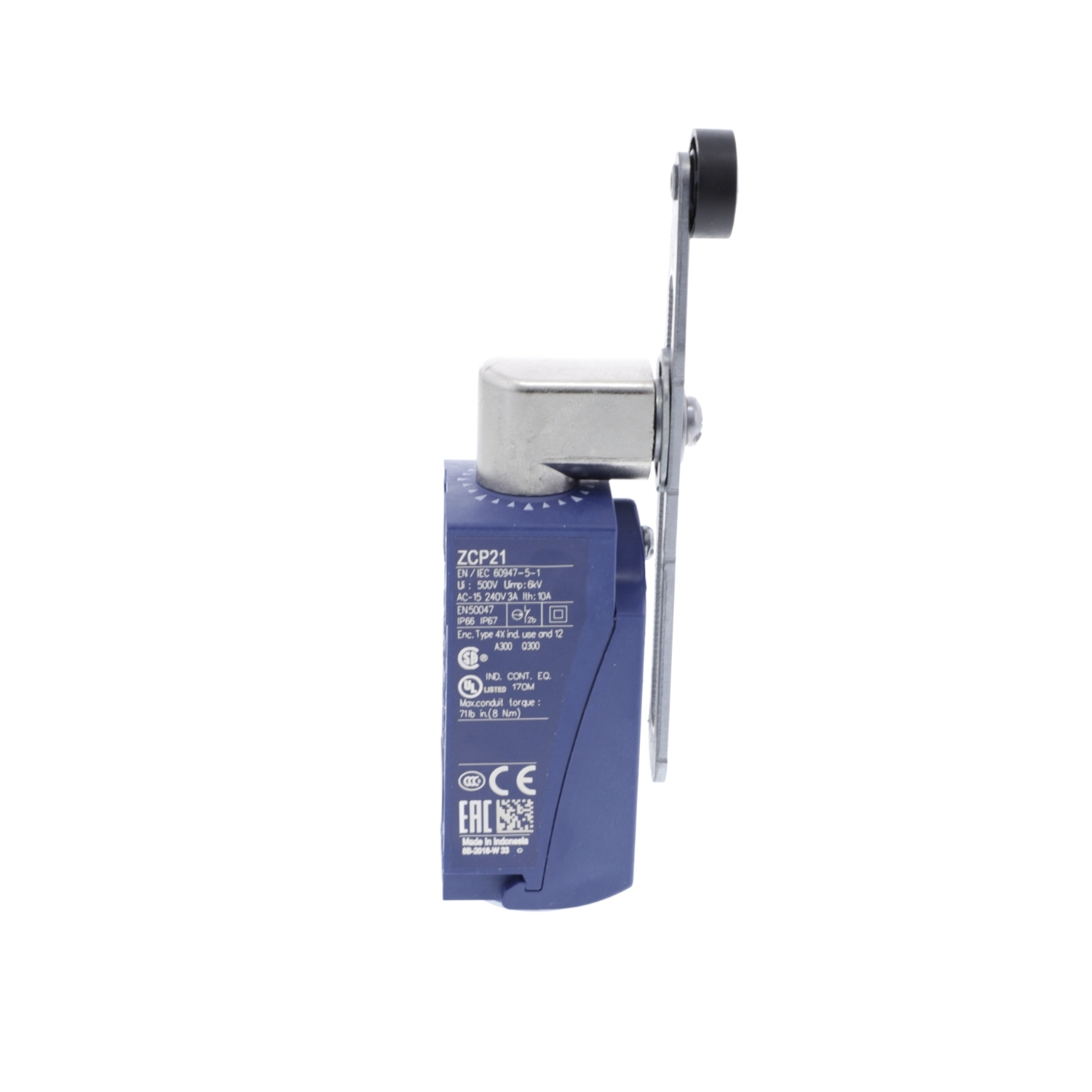

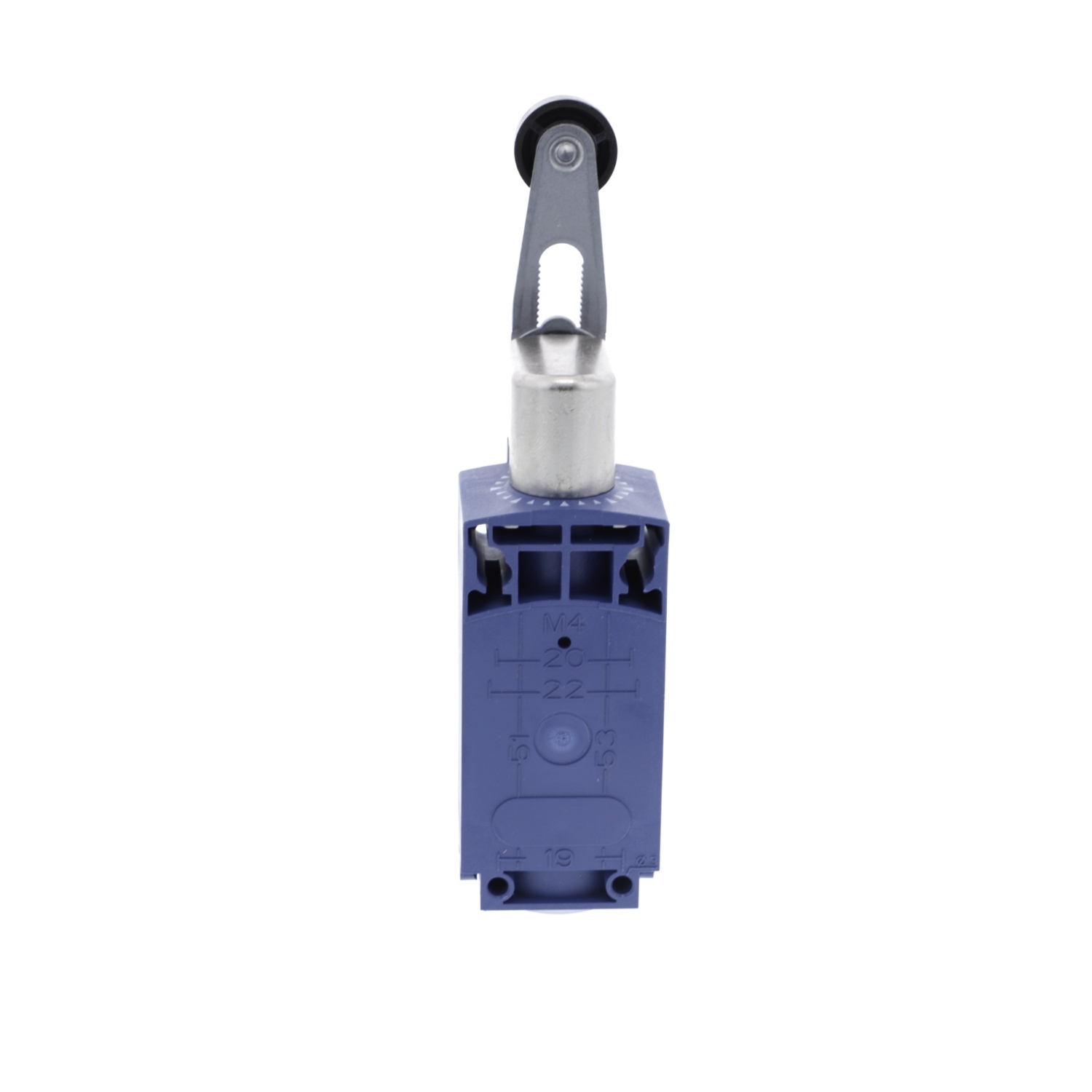

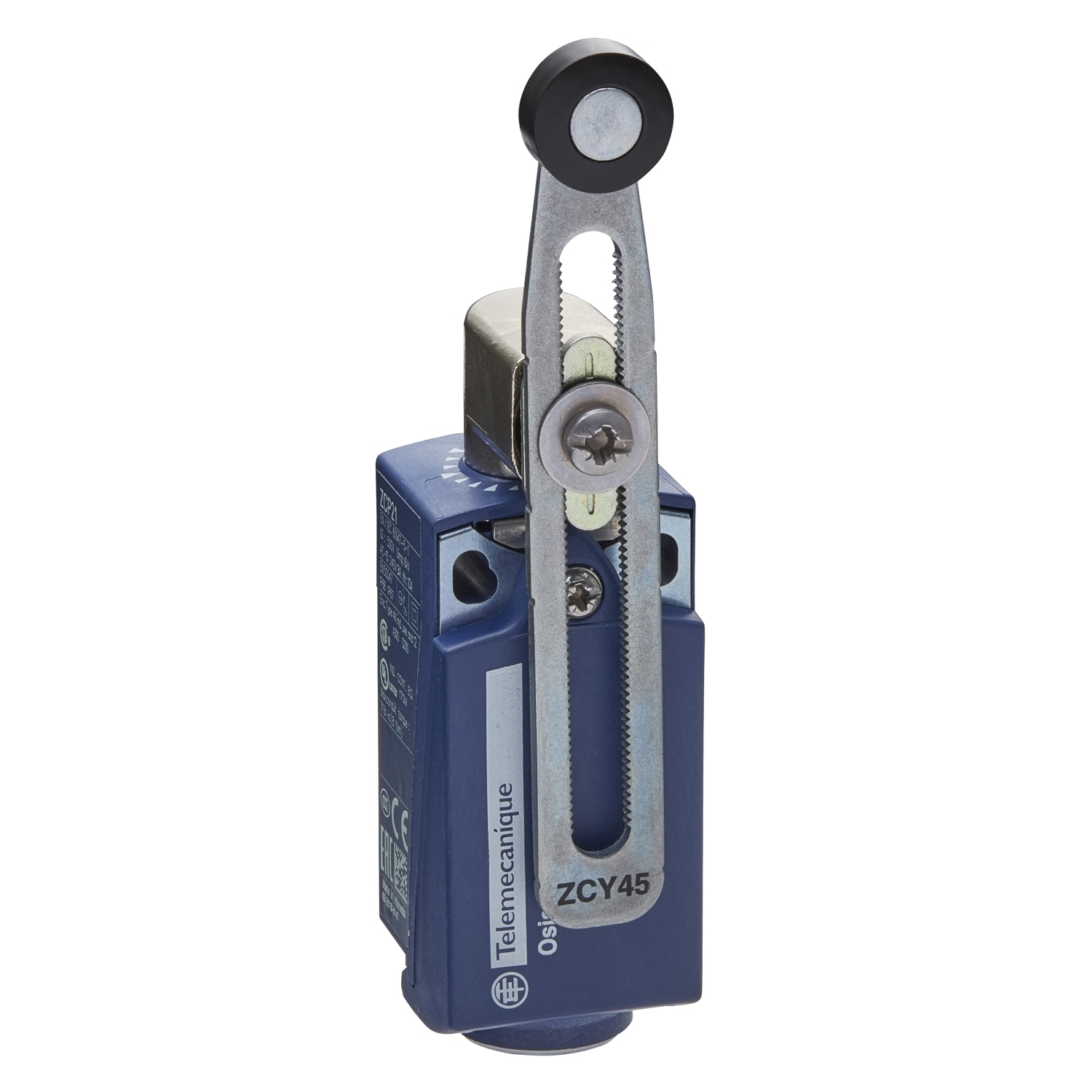

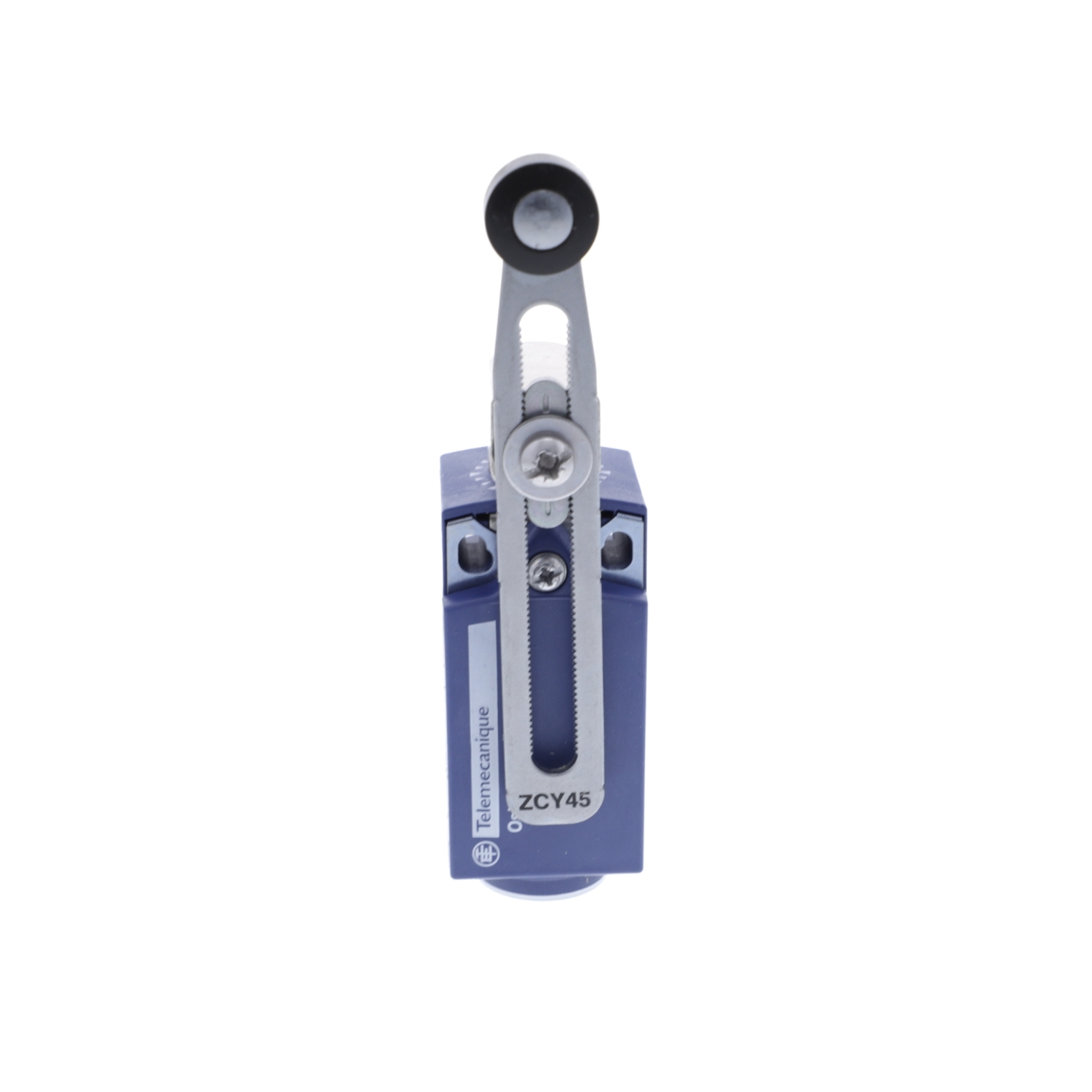

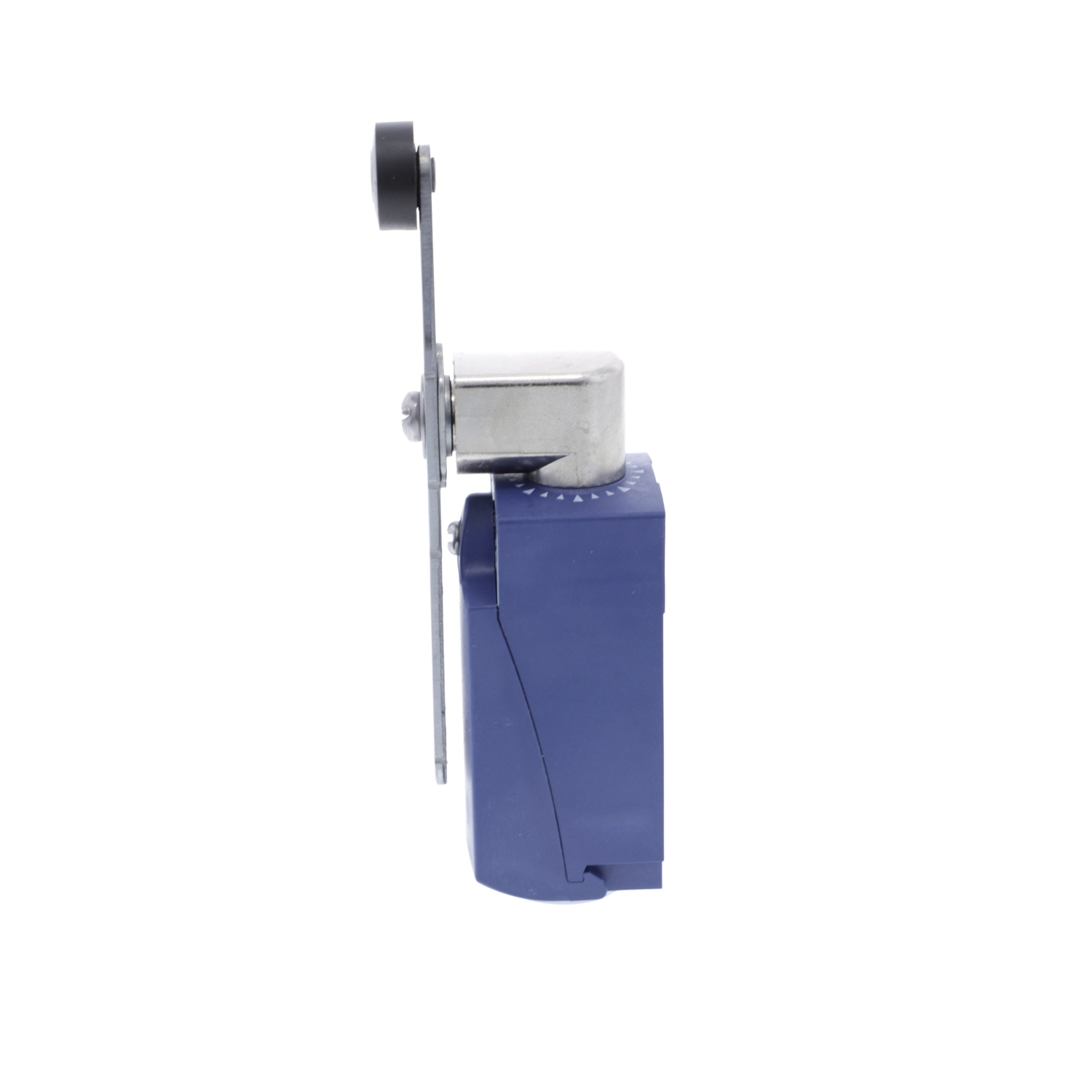

XCKP2145P16 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 3 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKP2145P16
- UPC:
- 785901912903
- Item #:
- 1400853
XCKP2145P16 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 3 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKP2145P16
- UPC:
- 785901912903
- Item #:
- 1400853
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic variable length roller lever and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals and Documentation
| Catalog Number | XCKP2145P16 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic variable length |
| Application | COMPACT VARIABLE |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL-CCC,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL 508-EN 60947-5-1-IEC 60947-5-1-IEC 60204-1-EN 60204-1-CSA C22.2 NO 14,CLASS II IEC 61140-CLASS II NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857190&lang=en-us |
| UPC | 785901912903 |
| GTIN | 03389110201901 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
