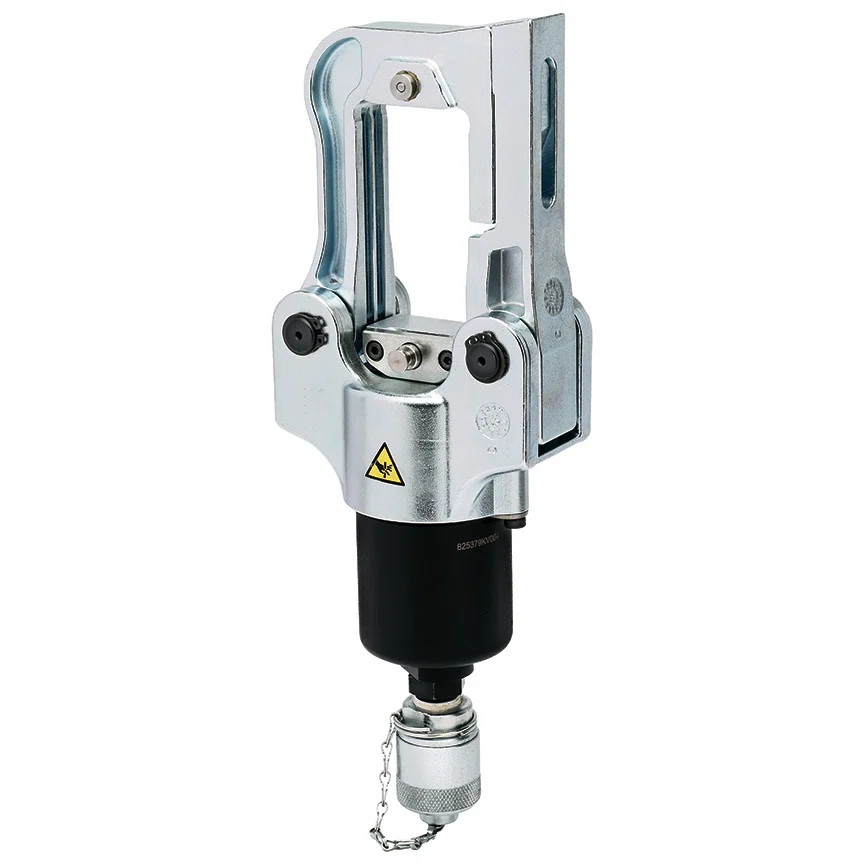

CT-920CH/CCP BlackFin 3-in-1 Die-Type Electro-Hydraulic Universal Crimp Head Tool, 13 in OAL
- MFR:
- Panduit
- MFR #:
- CT-920CH/CCP
- UPC:
- 613056234475
- Item #:
- 1400465
CT-920CH/CCP BlackFin 3-in-1 Die-Type Electro-Hydraulic Universal Crimp Head Tool, 13 in OAL
- MFR #:
- CT-920CH/CCP
- UPC:
- 613056234475
- Item #:
- 1400465
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
12-ton 3-in-1 hydraulic, Crimp, Cut & Punch Universal Crimp head. Crimps Panduit® copper compression lugs and splices from: 8 AWG to 750 kcmil copper Code, 8 AWG to 535 kcmil copper flex, metric 10 to 400 sq-mm Class 2r and 10 to 300 sq-mm Class 5f & 6f , 6 AWG - 600 kcmil aluminum wire. Crimps full range of Panduit® copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 1/0 AWG. Crimps large wire ferrules up to 500 kcmil. Includes tool, and nylon carrying case . Uses Panduit® CD-920 and CD-930 crimp dies, cutting blades and hole punch adapter, sold separately, Converts to a Dieless tool with UA12ID indentor die adapter. sold separately. Recommended for use with Panduit® CT-902HP hydraulic pump and CT-900HPH 10 ft hydraulic hose.
Manuals and Documentation
Features
- 12-ton 3-in-1 hydraulic, crimp, cut and punch universal crimp head
- Universal tool design operates using crimp dies, wire and threaded rod cutting blades and hole punch adapter, sold separately
- Incorporates parker type quick-connect fittings to ease installation and save time
- Requires 10000 psi hydraulic pump system(recommended Panduit® CT-902HP pump and accessories)
- Durable crimp head design for long life
- Universal flip-top head
- Uses Panduit® CD-920 and CD-930 crimp dies or Panduit® UA12ID nest/indenter adapter for dieless crimping
- Dies installed using spring loaded die retention pins, no need for tools
- Crimps Panduit® copper compression lugs and splices from 8 AWG to 750 kcmil copper code, 8 AWG to 535 kcmil copper flex, metric 10 to 400 sq mm class 2R and 10 to 300 sq mm class 5f and 6f, 6 AWG to 600 kcmil aluminum wire
- Crimps full range of Panduit® copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 1/0 AWG
- Crimps large wire ferrules up to 500 kcmil
- Incorporates Parker type quick-connect fittings to ease installation and save time
- Requires 10000 psi hydraulic pump system (recommended Panduit® CT-902HP pump and accessories)
- Durable crimp head design for long life
- Universal flip-top head
- Uses Panduit® CD-920 and CD-930 crimp dies or Panduit® UA12ID nest/indenter adapter for dieless crimping
- Dies installed using spring loaded die retention pins, no need for tools
- Universal tool design operates using crimp dies, wire and threaded rod cutting blades and hole punch adapter, sold separately
| Manufacturer Part Number | CT-920CH/CCP |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 613056234475 |
| EAN | 0613056234475 |
| Country Of Origin | DE |
| Dimensions | 2.7 in W x 4.5 in H |
| Overall Length | 13 in |
| Type | 3-in-1 Die-Type Electro-Hydraulic |
| Alternative Part Number | 13886992 | 13887009 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant |
| Application | For crimp dies, contains, protects and transports Panduit® battery-operated hydraulic crimping tools |
| Crimping Capacity | 8 AWG to 750 kcmil |
| Crimping Force | 12 ton |
| Hydraulic System Type | Electro/Remote |
| Operating Pressure | 10000 psi |
| Tool Kit | Bare Tool |
