Telemecanique

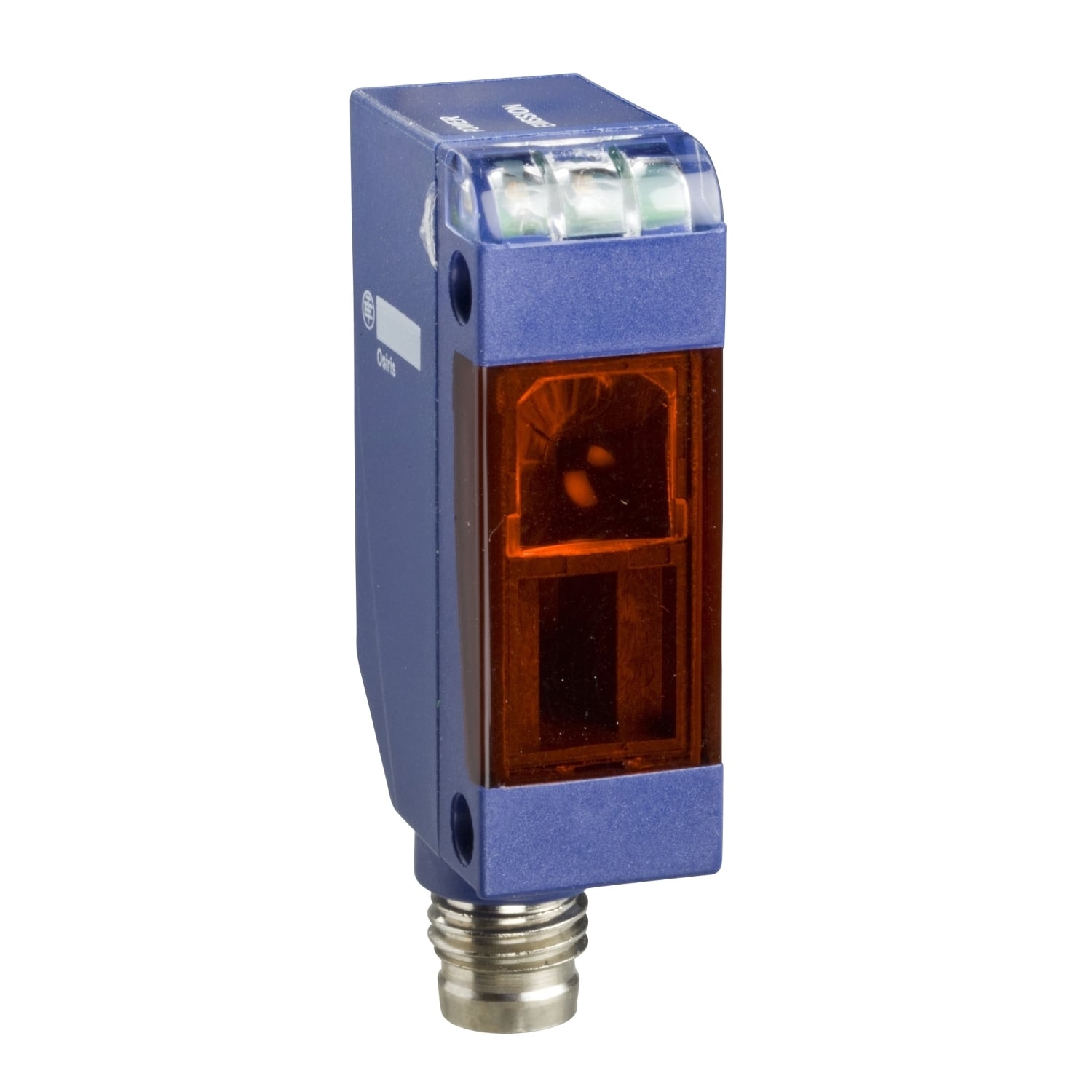

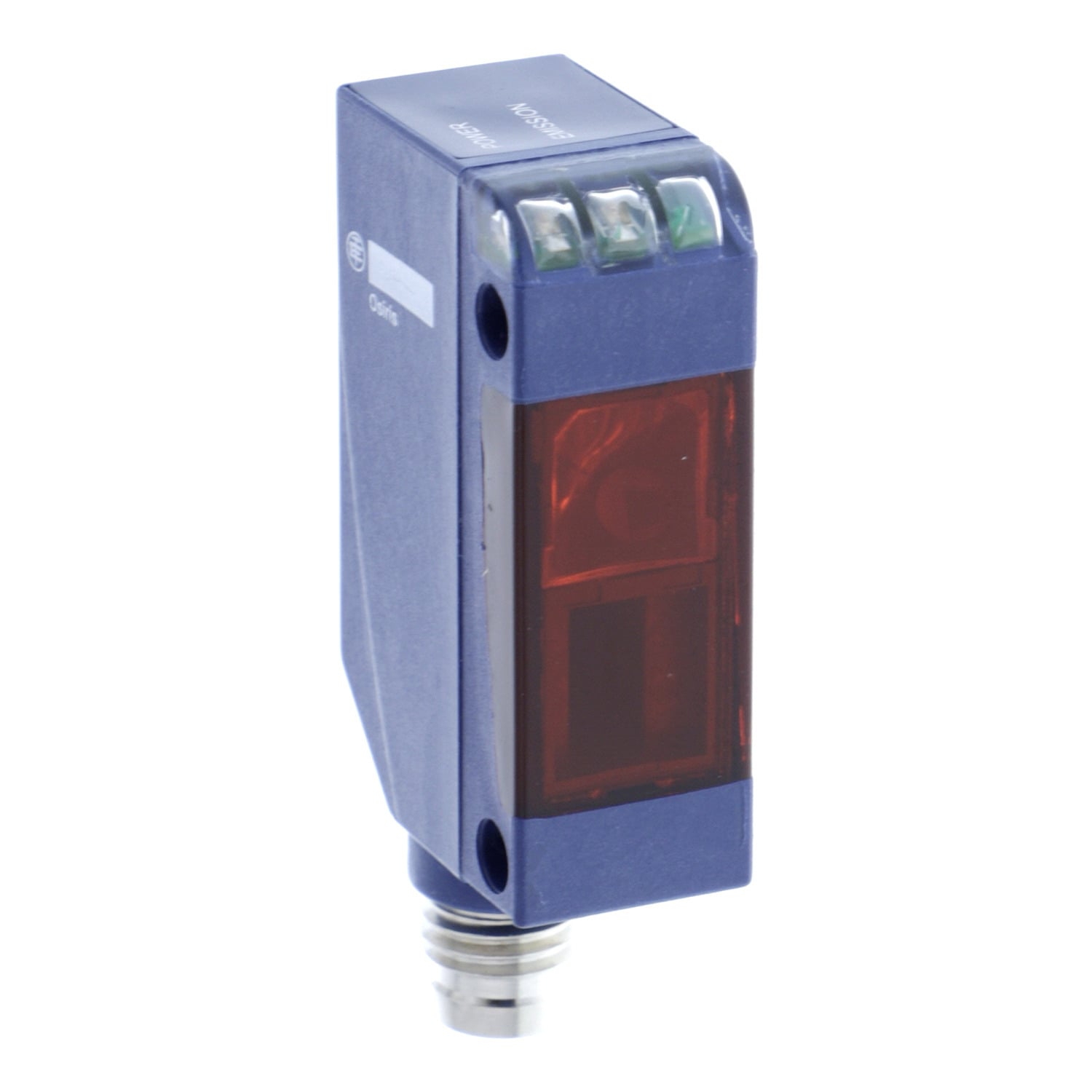

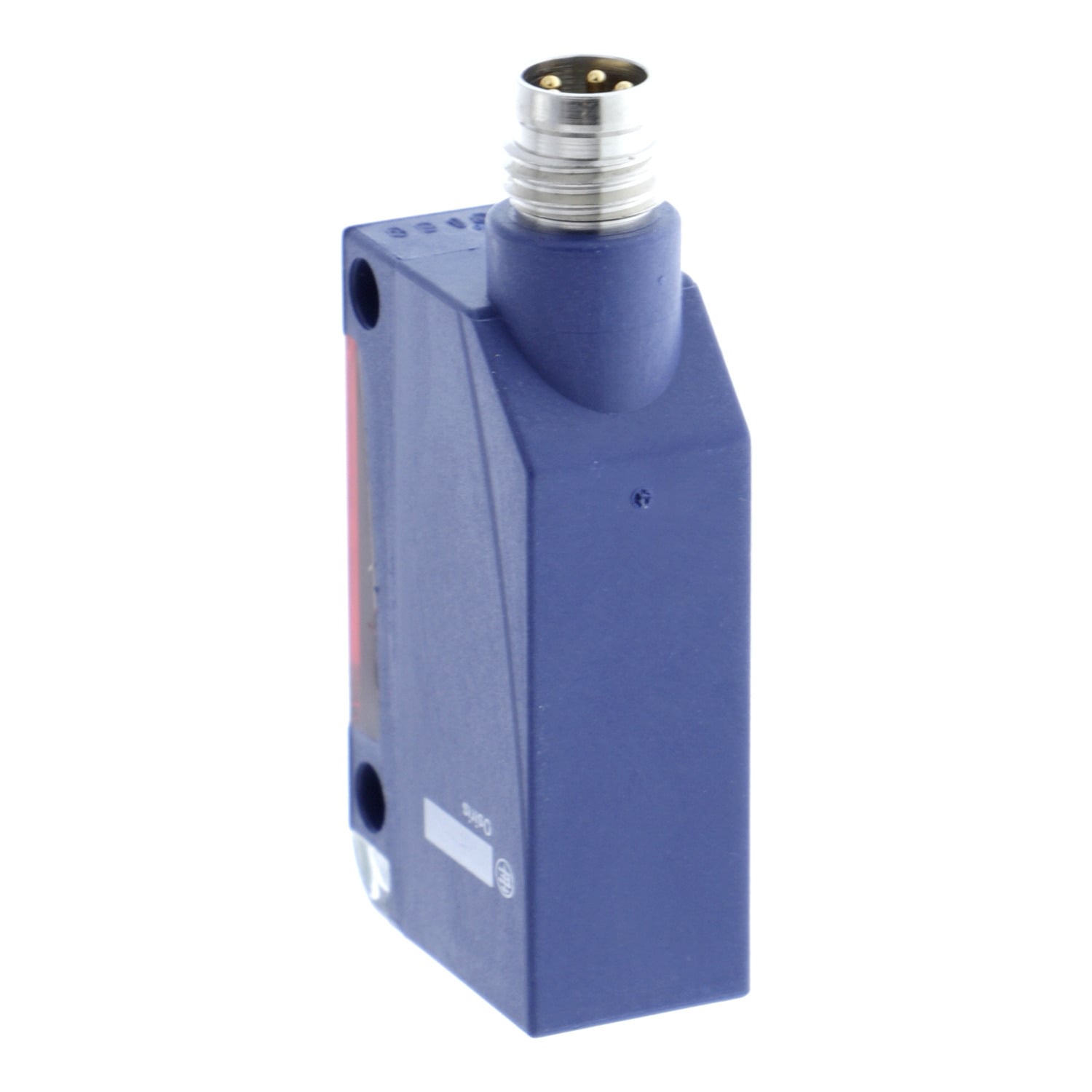

XUM0AKSAM8T OsiSense XU 3-Wire Dusttight/Oiltight/Watertight Miniature Submersible Photoelectric Sensor, Rectangle Shape, 14 m, Infrared Sensing Beam, 2 ms Response

MFR:
Telemecanique Sensors
MFR #:
XUM0AKSAM8T
UPC:
785901233381
Item #:
1394289

Availability

Location Available Qty
Available Available to Order
$136.41 each

This miniature design single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and troubleshoot issues. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUM0AKSAM8T
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connection 1 male connector M8, 4 pins
Enclosure IP67 CONFORMING TO IEC 60529,PBT
Operating Cycles <= 250 Hz
Sensing Range 10-10 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M)
Special Features 1 LED green)supply on
Standard IP67 IEC 60529,UL-CSA-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=874300&lang=en-us
UPC 785901233381
GTIN 03389110164626
Item Type General purpose multimode;Thru beam;Miniature;Photo-electric sensor transmitter
Size 0.79
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND SUBMERSIBLE (INDOOR/OUTDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
