Square D

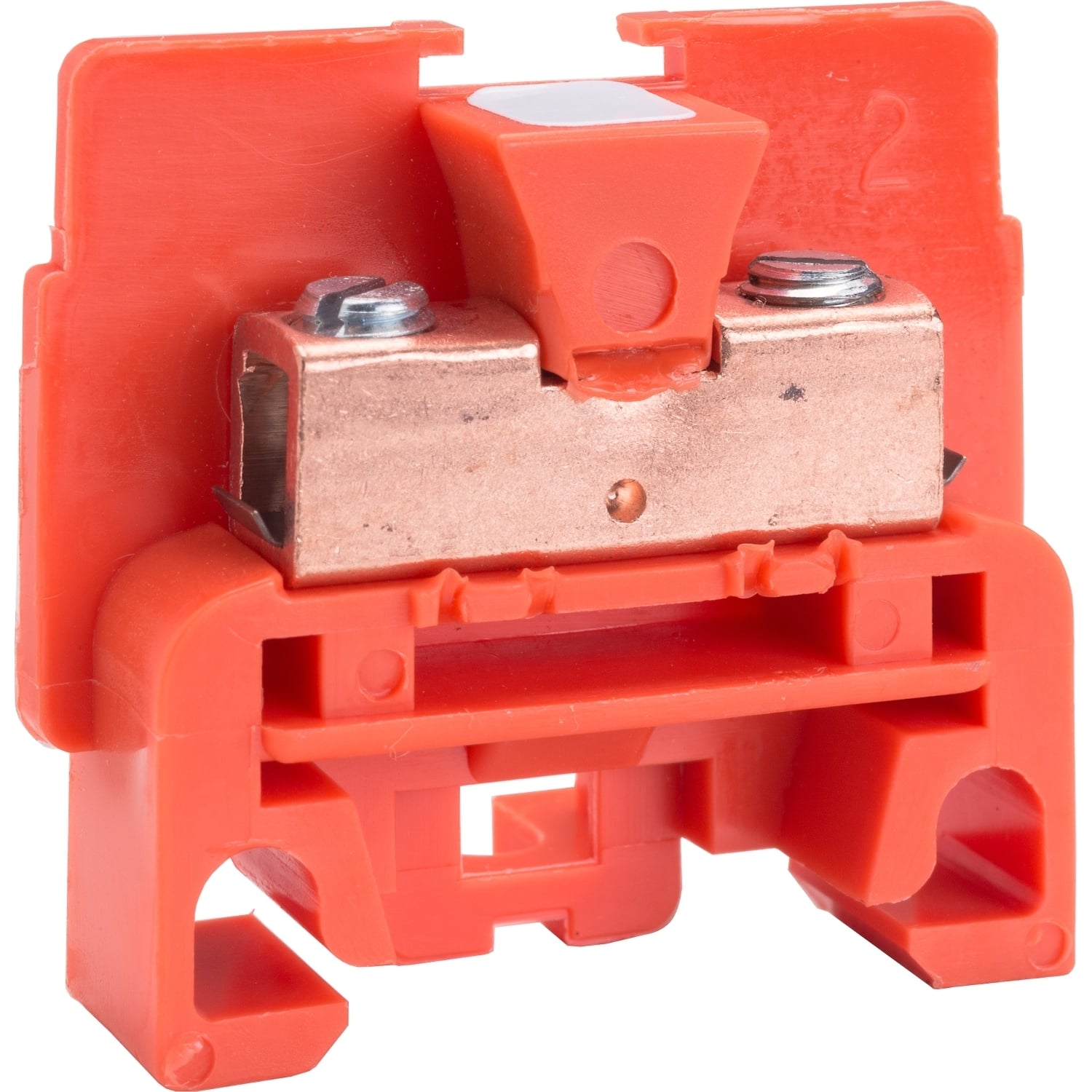

9080GKS6 Type G Terminal Block, 600 V AC/DC, 40/70 A, 22 to 10 AWG Cu Wire, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
9080GKS6
UPC:
785901744504
Item #:
1387499

Availability

Location Available Qty
Available Available to Order
$6.76 each

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in orange. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.

Manuals and Documentation
Catalog Number 9080GKS6
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372363&lang=en-us
UPC 785901744504
GTIN 00785901744504
Width 1.4
Width UOM Inch
Height 1.39
Height UOM Inch
Depth 0.35 IN
