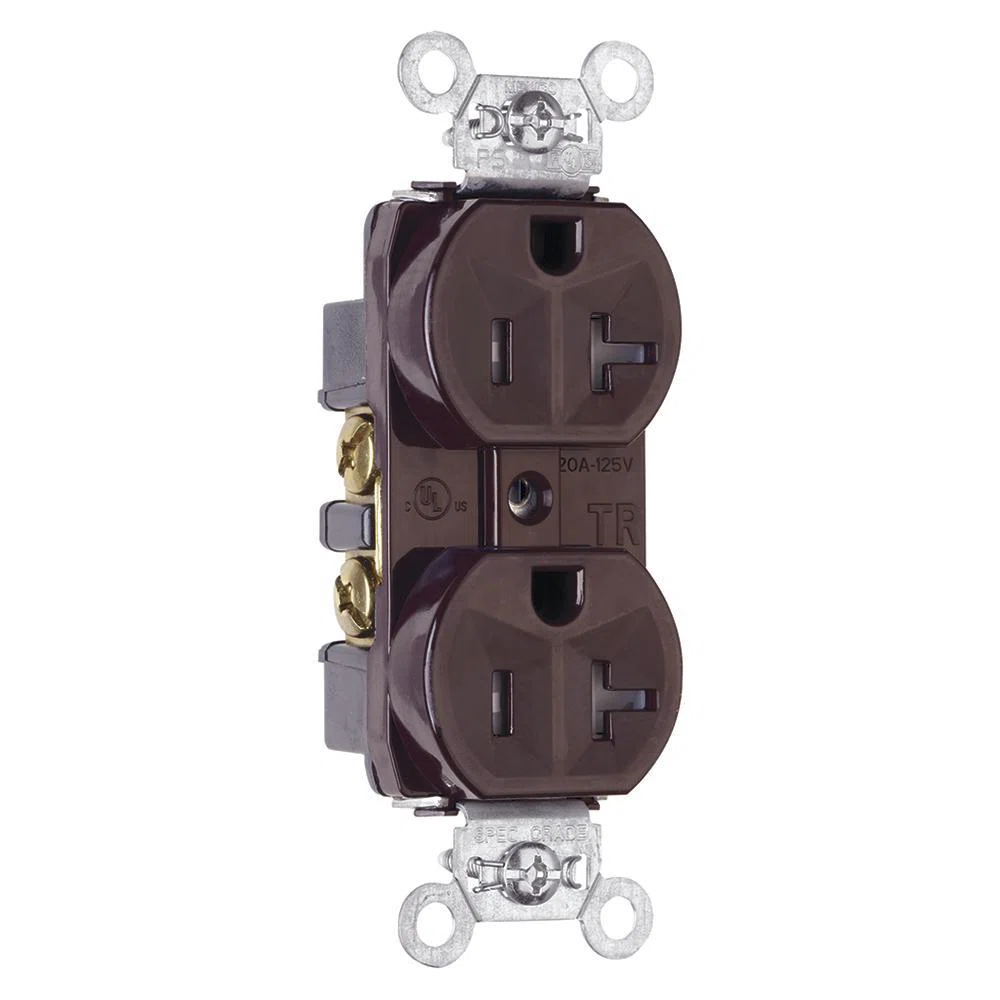

TR5362 3-Phase Duplex Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
- MFR:
- Legrand
- MFR #:
- TR5362
- UPC:
- 785007243680
- Item #:
- 1386972
TR5362 3-Phase Duplex Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
- MFR #:
- TR5362
- UPC:
- 785007243680
- Item #:
- 1386972
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$39.73
each
Pass & Seymour® Straight Blade Receptacle, 3-Phase Duplex Tamper-Resistant, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon/Thermoplastic, Brown, 5.13 in H x 2 in W x 1.4 in D Dimensions
Manuals and Documentation
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise - Maximum 30C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature - Maximum continuous +60C, minimum -40C without impact
| Manufacturer Part Number | TR5362 |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| UPC | 785007243680 |
| Country Of Origin | MX |
| Amperage Rating | 20 A |
| Color | Brown |
| Dimensions | 5.13 in H x 2 in W x 1.4 in D |
| Material | Nylon/Thermoplastic |
| Temperature Rating | -40 to 60 deg C |
| Type | 3-Phase Duplex Tamper-Resistant |
| Voltage Rating | 125 V AC |
| Alternative Part Number | 10085260 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | UL 498 File No. E140596 | CSA C22.2 No. 42 | cUL Listed | Federal Specification WC596 |
| Application | Healthcare, Education and Institutional Applications |
| Grade | Commercial/Specification |
| Nema Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Terminal Type | Back/Side Wire |
