Schneider Electric

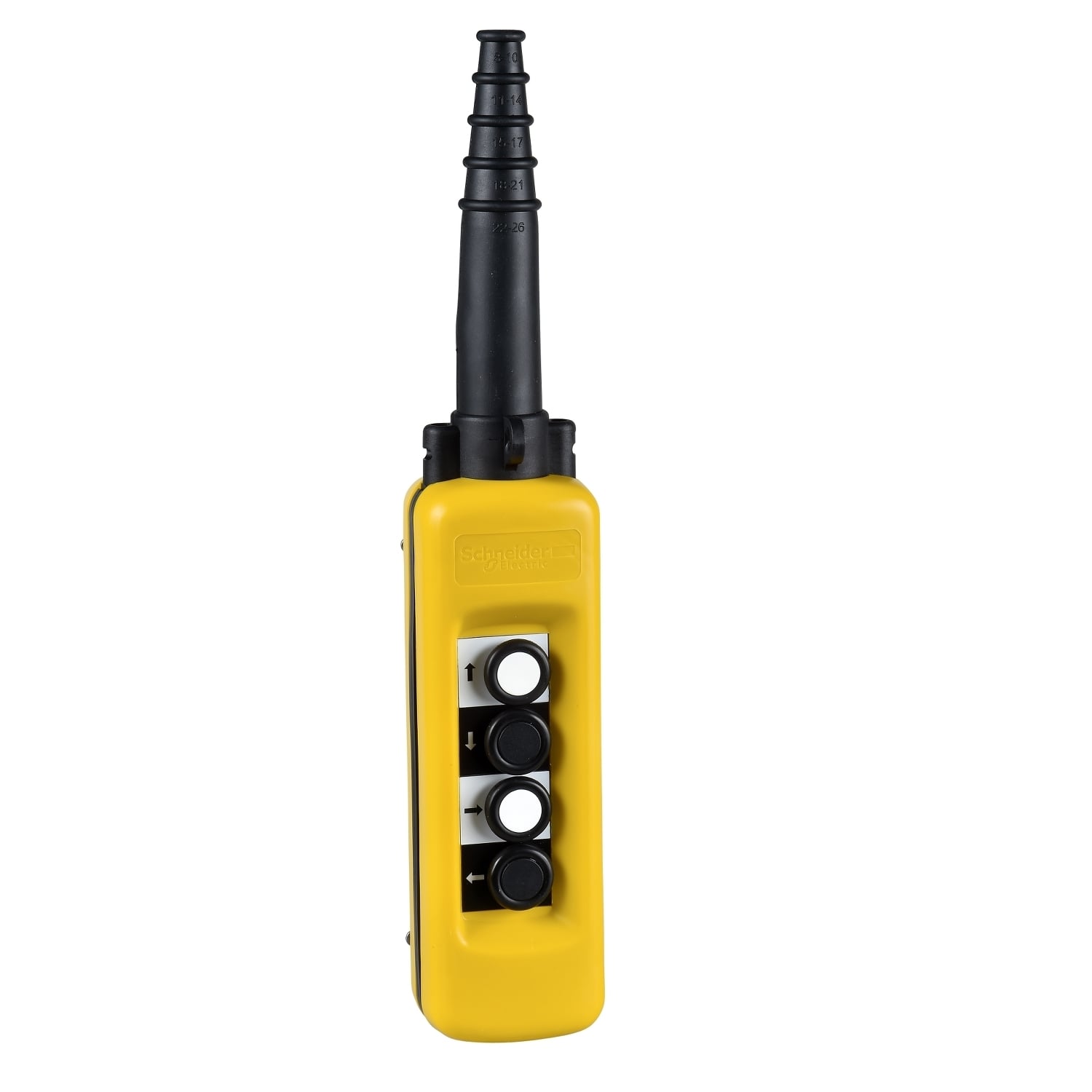

XACA471 Harmony Double Insulated Medium Duty Pendant Control Station, 600 V AC, 10 A, 4NO Contact, 4 Operators, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACA471
Item #:
138628

Availability

Location Available Qty
Available Available to Order
$247.70 each

This Harmony XAC, pendant station is ideal to control single speed hoisting applications. This pistol grip shaped pendant control station is ideal for direct control with heavy work gloves of mechanical handling applications such as overhead cranes, tower cranes, fixed hoists and beam hoists. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a solid rubber grommet junction with cable, for maximum water tightness. Its ergonomic pistol grip allows single handed control of your hoist and crane.

Manuals and Documentation
Catalog Number XACA471
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Control of single speed hoist motor;ZB2BE101 for each direction;Control circuit
Cable Entry Rubber sleeve with stepped entry 8-26 mm
Connection Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking between pairs
Standard CCC;GOST;IK08 conforming to IEC 62262;CSA C22.2 No 14;IEC 60204-32;UL 508;IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674064&lang=en-us
GTIN 03389110645101
Item Type Pendant control station;Double insulated
