Intermatic

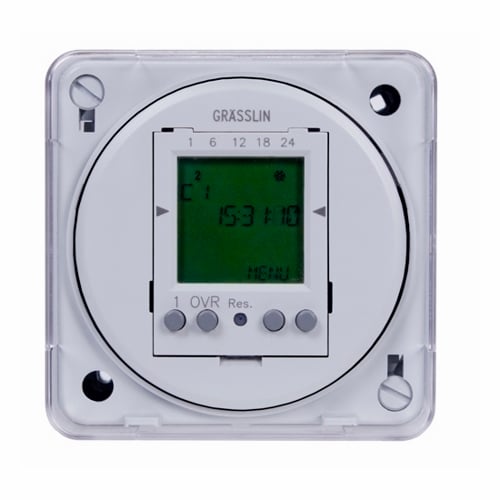

FM1D50E-120 Grasslin Electronic Time Switch With Clear Dust Cover, 1 min to 24 hr/7 days Setting, 120 VAC, 1/2 hp, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles

MFR:
Intermatic
MFR #:
FM1D50E-120
UPC:
078275121522
Item #:
138533

Availability

Location Available Qty
Available Available to Order
$204.06 each
Manuals and Documentation
Catalog Number FM1D50E-120
Manufacturer Intermatic
Brand Intermatic
Country of Origin China
Made in USA No
Action 1 x SPDT
Application HVACR, Pumps, Lighting, Industrial, Commercial, Fans, Heaters, Machinery
Connection 1/4 IN Quick Connect
Contact Configuration 1 NO/1 NC
Contact Rating 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Mounting Flush
Number of Poles 1
Special Features Features: 50 Setpoint Programs, 2 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Status Indication, Battery Backup, Auto Daylight Savings Time Feature, Clear Dust-Cover, 1 Year Warranty
Standard cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
UPC 078275121522
GTIN 00078275121522
Item Type One Channel Electronic
Size 2.83 HEIGHT X 2.83 WIDTH IN, 72 HEIGHT X 72 WIDTH MM
Operating Temperature -13 to +131 DEG F, -25 to +55 DEG C
Timing Range 1 MIN - 24 HR/7 DAYS
Voltage Rating 120
Wattage 1000
