BURNDY

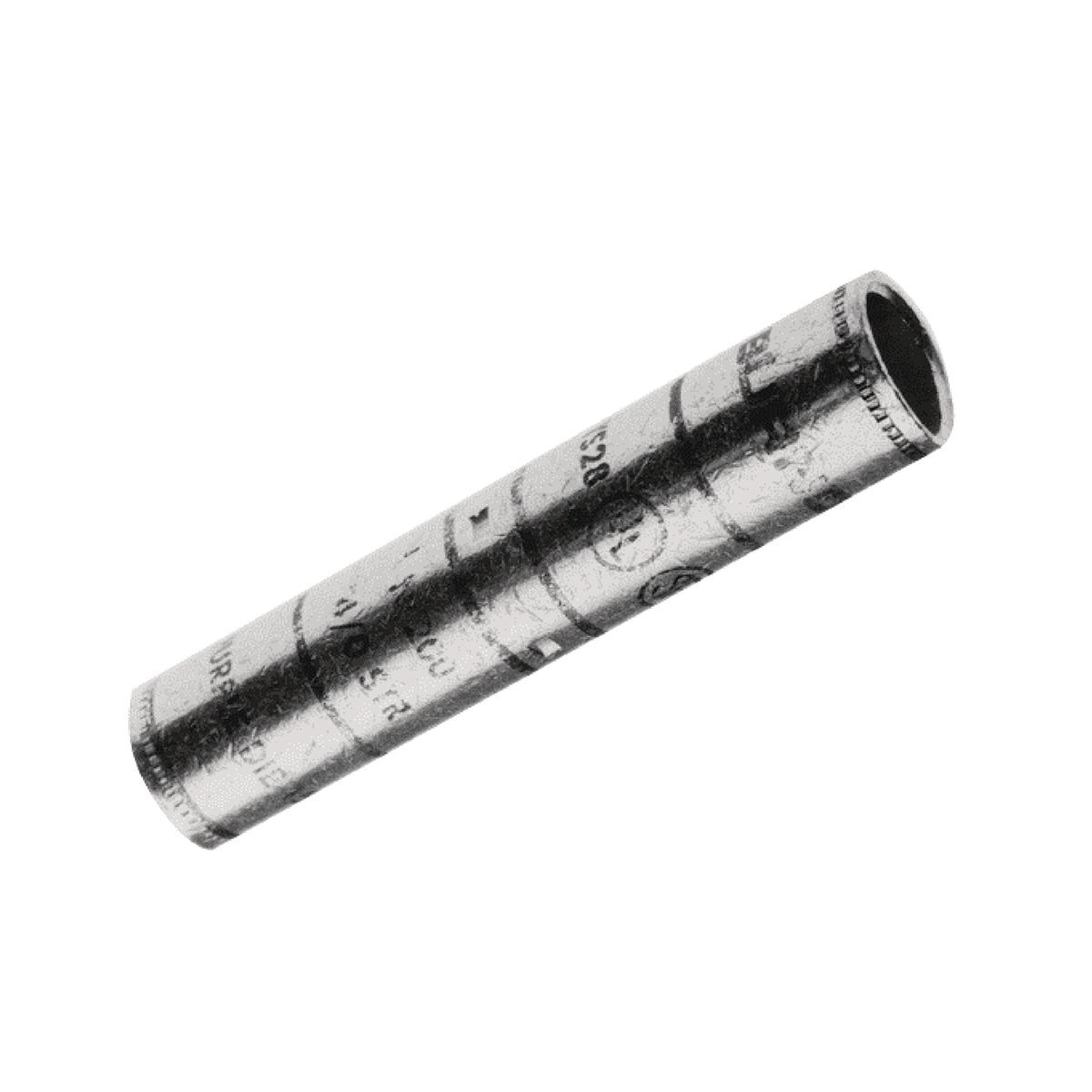

YS6C Type YS Long Barrel Compression Butt Splice, 6 AWG Conductor, 2.38 in L, Long Barrel, Copper, Blue

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS6C
UPC:
781810507407
Item #:
138285

Availability

Location Available Qty
Available 25 ea
$21.31 each
Manuals and Documentation
Catalog Number YS6C
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material COPPER
Special Features Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Oil Stop: No, Color Code: Blue, Tapered End: No, Die Index: 7 Or 374, Wire Strip Length: 1-3/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC Tool, (2), Y2MR Tool, MD7-34R Tool, W5CVT Die, (2), MD6, OUR840 Tool, X5CRT Die, (2), Y35 , Y39, Y750 Tool, U5CRT Die, (2), Y46 Tool, U5CRT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper
Standard UL 486A-486B
UPC 781810507407
GTIN 00781810507407
Item Type YS, Long Barrel
Voltage Rating 35
Cross Reference Products CTL-6, C-6, CU6
