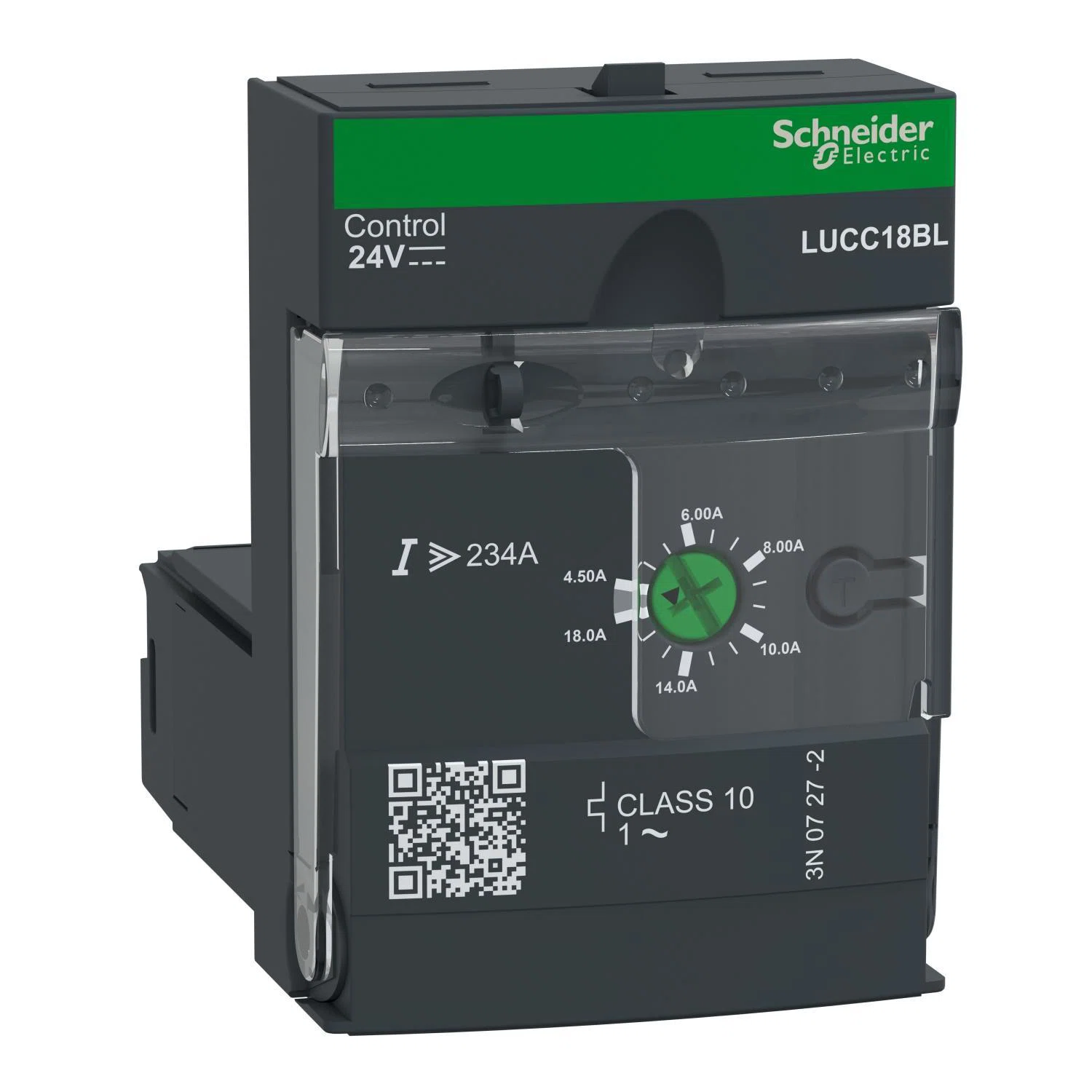

LUCC18BL TeSys LUCC 1-Phase Class 10 Solid State Advanced Control Unit
- MFR:
- Schneider Electric
- MFR #:
- LUCC18BL
- UPC:
- 785901550716
- Item #:
- 1381448
LUCC18BL TeSys LUCC 1-Phase Class 10 Solid State Advanced Control Unit
- MFR #:
- LUCC18BL
- UPC:
- 785901550716
- Item #:
- 1381448
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 4kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
Features
- Protection against overload and short-circuit
- Control unit includes electronic components and the current adjustment dial
- Modular, plug and play structure helps you to perform quick maintenance
- Direct access to detailed information for every motor starter of your installation
- Advanced motor management system
| Manufacturer Part Number | LUCC18BL |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901550716 |
| EAN | 3389110364507 |
| Country Of Origin | FR |
| Amperage Rating | 4.5 to 18 A |
| Dimensions | 3.3 in L x 2.1 in W x 4.1 in H |
| Enclosure Type | IP20/IP40 |
| Mounting Type | DIN Rail/Plug-In |
| Series | TeSys™ LUCC |
| Temperature Rating | -25 to 55 deg C |
| Type | 1-Phase Class 10 Solid State |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 8087994 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | CSA C22.2 No. 14 Type E | EN 60947-6-2 | IEC 60947-6-2 | UL 508 Type E | ASEFA Certified | GL Certified | Lloyd's Register Certified | CCC Certified | BV Certified | UL Listed | ATEX Compliant | GoST-R Certified | ABS Certified | DNV Certified | IEC 60947-1 | Green Premium | REACH Compliant | WEEE Compliant | ECCN: EAR99 |
| Application | For ASILUFC5, ASILUFC51 AS-interface module, LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN function module, LUFV2, LUFW10, LULC031, LULC033, LULC07, LULC08, LULC09, LULC15 communication module |
| Electrical Connections | Wired |
| Frequency Rating | 50/60 Hz |
