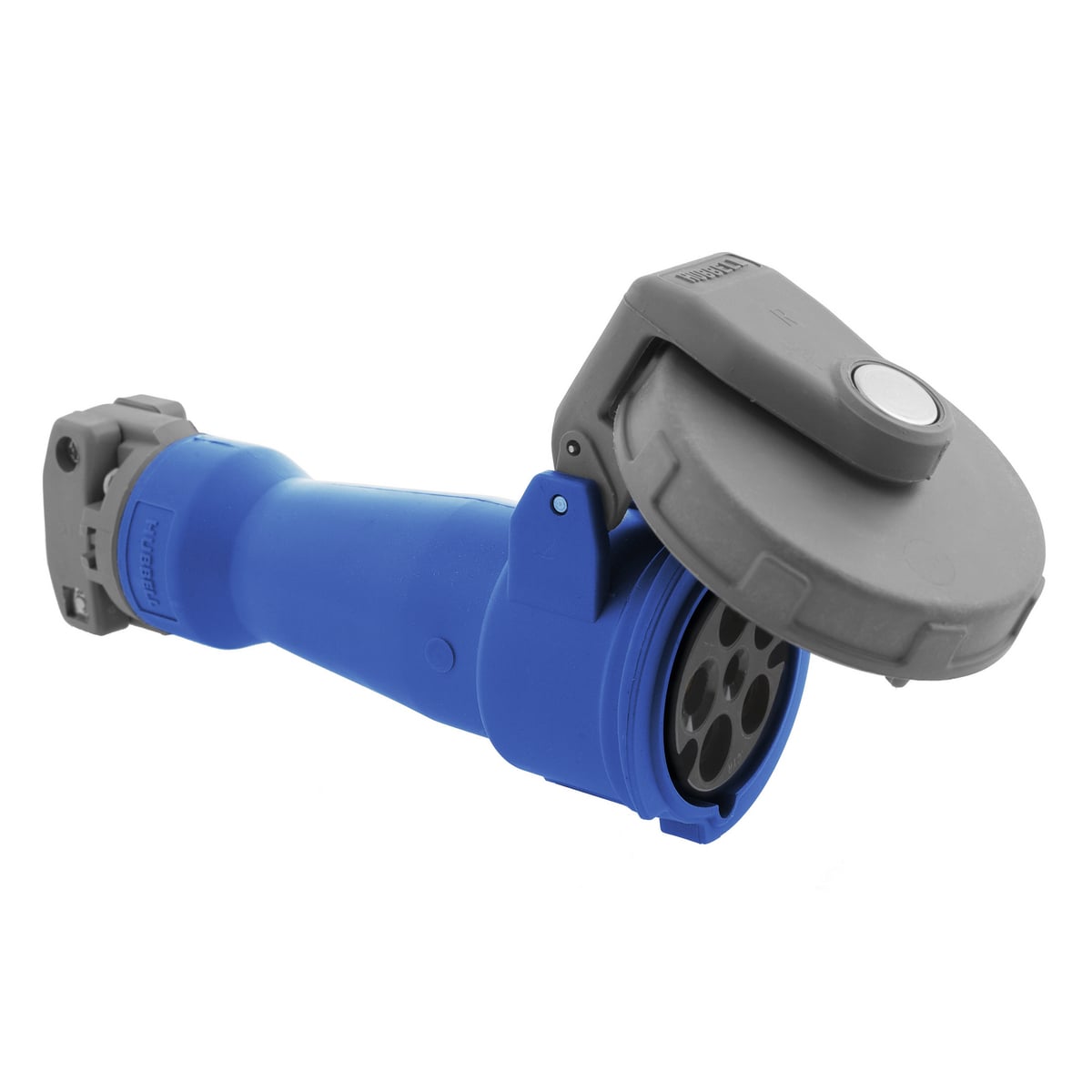

HBL516C1W Female Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 220 to 380/240 to 415 V AC, 16 A, 4 Poles, 5 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL516C1W
- UPC:
- 783585405193
- Item #:
- 137999
HBL516C1W Female Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 220 to 380/240 to 415 V AC, 16 A, 4 Poles, 5 Wires, Blue
- MFR #:
- HBL516C1W
- UPC:
- 783585405193
- Item #:
- 137999
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$432.25
each
Manuals and Documentation
| Catalog Number | HBL516C1W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 16 |
| Application | High Ampacity Connections |
| Color | Blue |
| Conductor Range | #14 AWG to #10 AWG Copper Wire Only |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Watertight |
| Standard | UL 498, IEC 309-1 and 309-2 |
| UPC | 783585405193 |
| GTIN | 00783585405193 |
| Item Type | Standard |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | Singal Rated kV |
