Telemecanique

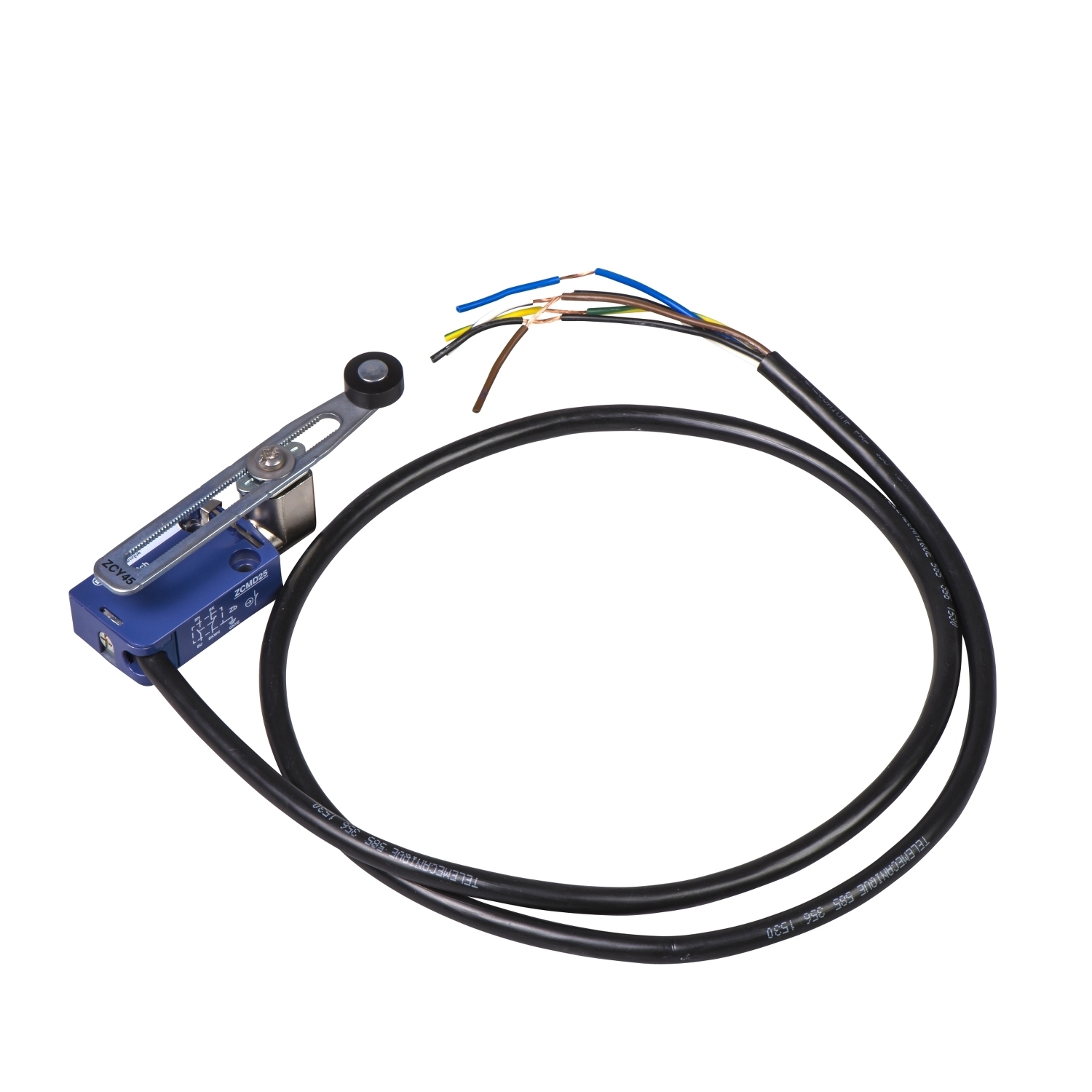

XCMD2145L1 OsiSense Fixed Miniature Standard Limit Switch, 240 V AC, 250 V DC V AC, 6 A, Spring Return/Roller Lever/Adjustable Lever Arm Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2145L1
UPC:
785901686019
Item #:
137869

Availability

Location Available Qty
Available Available to Order
$90.37 each

The XCMD offer is a range of robust limit switches in a miniature format. They are ideal for harsh environment machines with space constraints. This limit switch is pre-cabled. It features a metal fixed body and a variable length thermoplastic roller lever. Contacts: 2-pole NC + NO, snap action.

Manuals and Documentation
Catalog Number XCMD2145L1
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic variable length
Amperage Rating 6
Application MINIATURE VARIABLE
Connection Removable cable connector
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA-UL,CSA C22.2 NO 14-EN/IEC 60204-1-UL 508-EN/IEC 60947-5-1,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857760&lang=en-us
UPC 785901686019
GTIN 03389110218459
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
