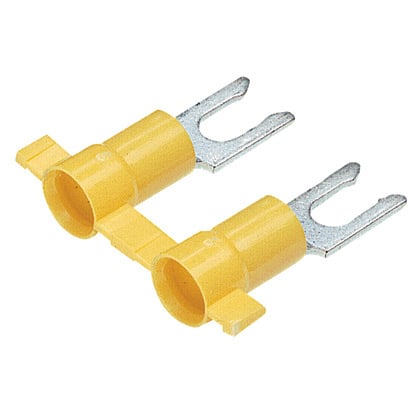

PV10-14LFB-2K Pan-Term Reel Smart Reel-Fed Fork Terminal, #10 Conductor, 1.16 in L, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- PV10-14LFB-2K
- UPC:
- 074983808526
- Item #:
- 137861
PV10-14LFB-2K Pan-Term Reel Smart Reel-Fed Fork Terminal, #10 Conductor, 1.16 in L, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, Yellow
- MFR #:
- PV10-14LFB-2K
- UPC:
- 074983808526
- Item #:
- 137861
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.5888
each
Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, 1/4 stud size.
Manuals and Documentation
| Catalog Number | PV10-14LFB-2K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Funnel Entry |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983808526 |
| GTIN | 00074983808526 |
| Item Type | Locking Fork Terminal |
| Size | 1/4" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
