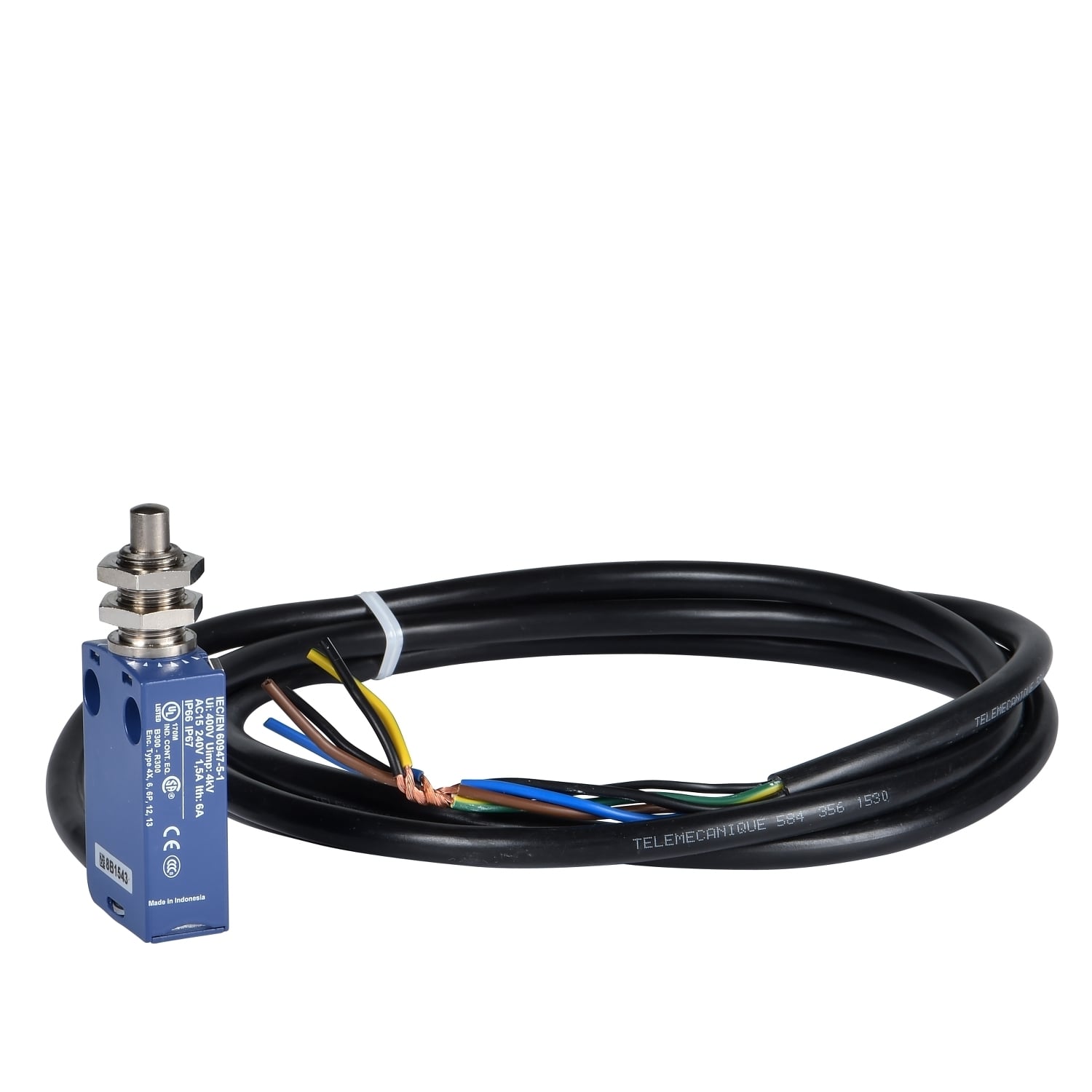

XCMD21F0L5 OsiSense Fixed Heavy Duty Miniature Limit Switch, 240 V AC, 5 A, M12 Threaded Plunger Head Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD21F0L5
- Item #:
- 1377572
XCMD21F0L5 OsiSense Fixed Heavy Duty Miniature Limit Switch, 240 V AC, 5 A, M12 Threaded Plunger Head Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD21F0L5
- Item #:
- 1377572
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$122.28
each
limit switch XCMD - M12 metal end plunger - 1NC+1NO - snap - 5 m
Manuals and Documentation
| Catalog Number | XCMD21F0L5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Vertical approach, 1 direction;Snap action;On end |
| Actuator | Spring return plunger metal |
| Connection | Removable cable connector |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Head |
| Number of Poles | 2 |
| Special Features | IK06 CONFORMING TO EN 50102,IP68 CONFORMING TO IEC 60529-IP66 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,METAL,REMOVABLE CABLE CONNECTOR |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA-UL,EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14-EN/IEC 60204-1,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857776&lang=en-us |
| GTIN | 03389119000420 |
| Item Type | Limit switch |
| Size | 0.63 |
| Operating Temperature | -25-70 A Degrees C |
