XCSDMP5915 Preventa 3-Direction 2-Pole Staggered Magnet Switch, 25 mm W x 13 mm D x 88 mm H Coded Magnetic Actuator, 1NO-1NC Contact, Rhodium Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSDMP5915
- Item #:
- 1377507
XCSDMP5915 Preventa 3-Direction 2-Pole Staggered Magnet Switch, 25 mm W x 13 mm D x 88 mm H Coded Magnetic Actuator, 1NO-1NC Contact, Rhodium Contact
- MFR #:
- XCSDMP5915
- Item #:
- 1377507
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$161.84
each

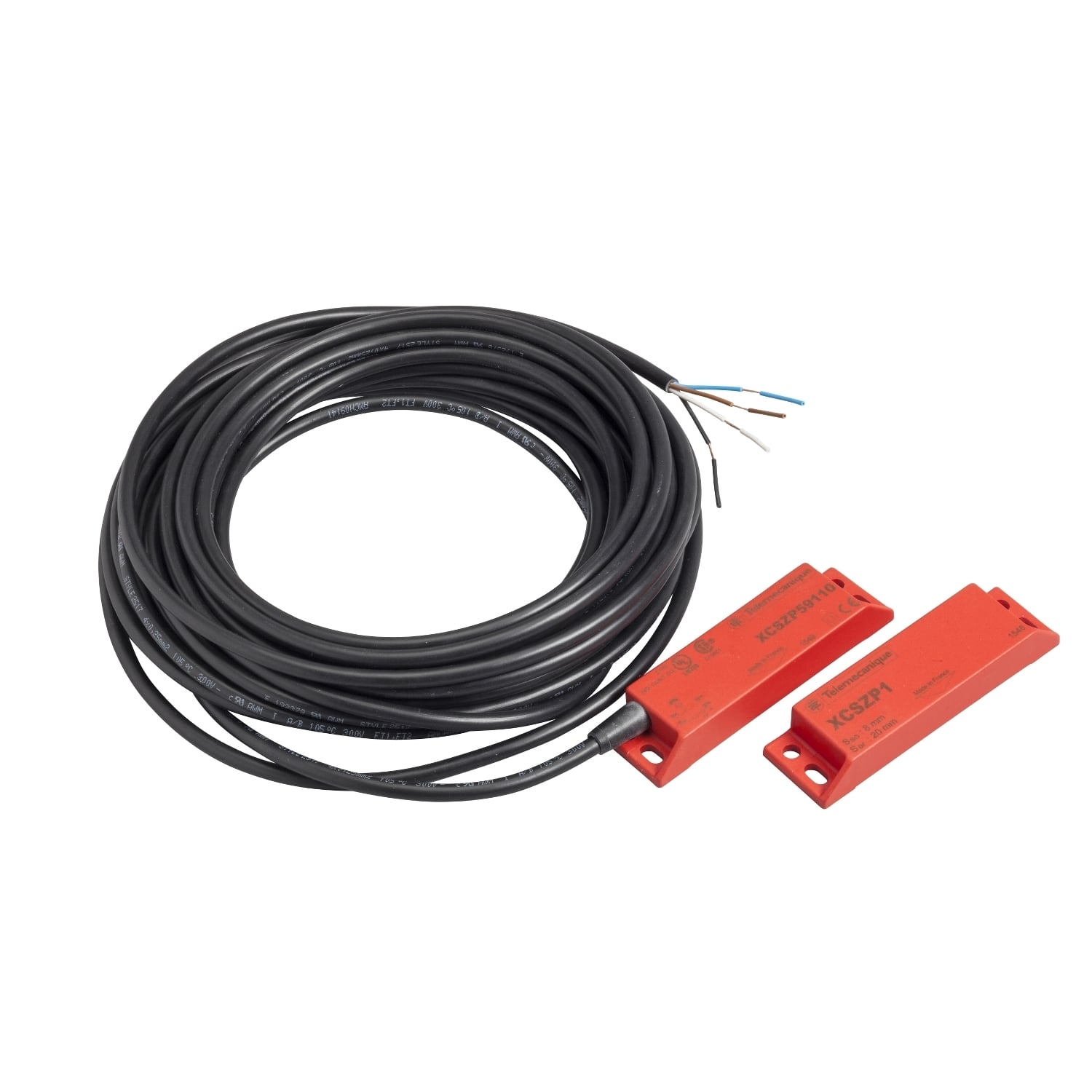

The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. This coded magnetic system, detects without contact. 3 approach directions. It features a rectangular plastic boby, 88mm x 25mm x 13mm, and a 5m long pre-cabled electrical connection . 2-pole 1 NC + 1 NO, staggered. It can reach category 4 Safety Level with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach PL equal e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. It can reach SIL 3, with the appropriate monitoring system and correctly wired, conforming to EN/IEC 61508.
Manuals and Documentation
| Catalog Number | XCSDMP5915 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Staggered |
| Amperage Rating | 100 |
| Connection | Pre-cabled |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | Thermoplastic PBT |
| Special Features | 1 LED |
| Standard | EN/ISO 12100 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859042&lang=en-us |
| GTIN | 03389119113052 |
| Item Type | Coded magnetic switch |
| Size | 88 x 25 x 13 mm |
| Operating Temperature | -25-85 A Degrees C |
| Voltage Rating | 24 V DC |
