Mersen

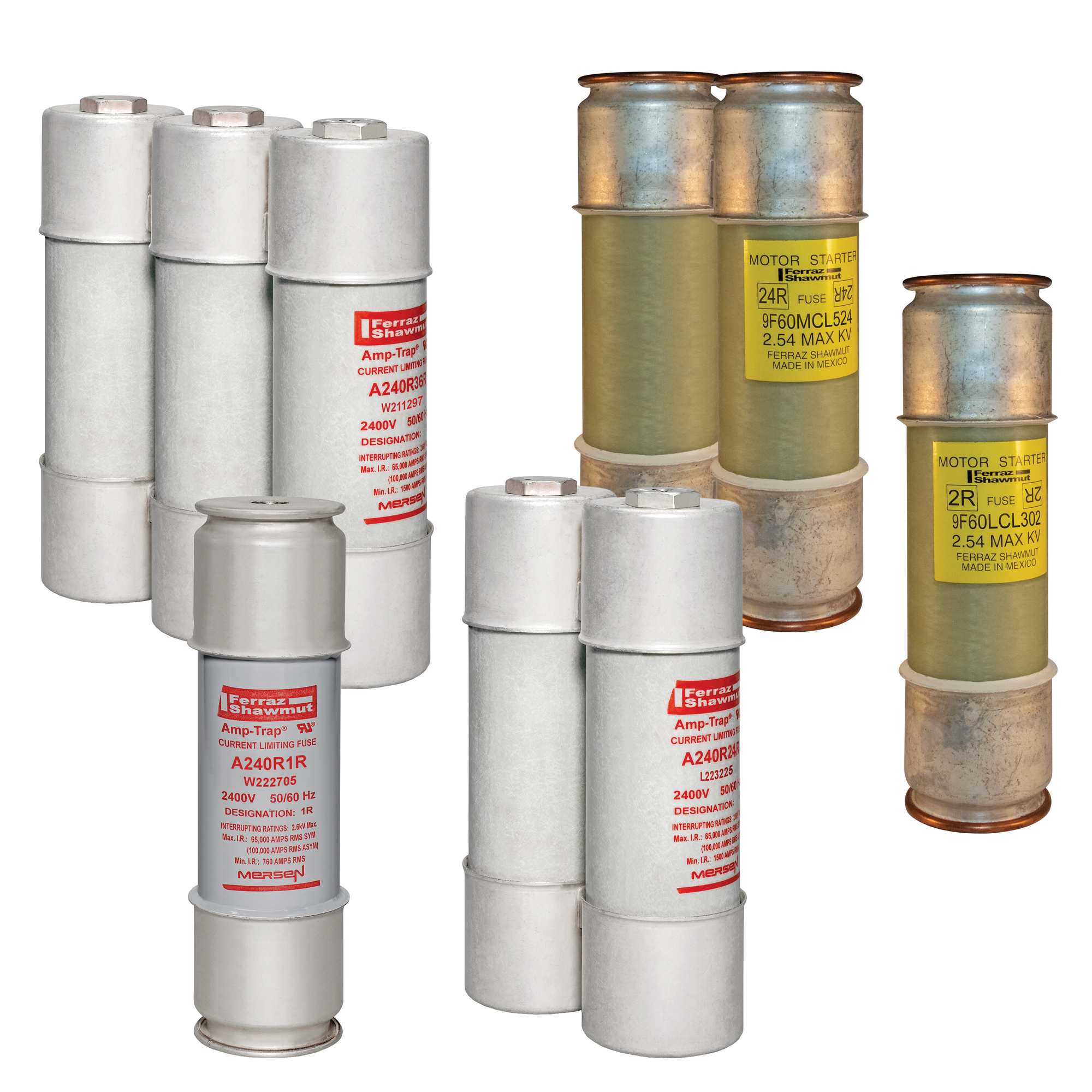

9F60LCB506 Amp-Trap Back-Up Current Limiting Medium Voltage Fuse, 6 A, 2.4 kV AC, 50 kA Interrupt, Class: R

MFR:
Mersen
MFR #:
9F60LCB506
UPC:
782001396084
Item #:
1377452

Availability

Location Available Qty
Available Available to Order

Back-Up R-Rated Medium Voltage Fuse 2400VAC 6R Mounting: Ferrule Style: LCB Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number 9F60LCB506
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 6
Application Short circuit protection of medium voltage motors and motor controllers
Connection Ferrule
Interrupt Rating 50 KA
Material clips
Mounting Clip
Response Time R-Rated
Special Features The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force – 0.20 Inch
Standard Amp-Trap: UL File E93367 9F60: UL File E191980
UPC 782001396084
GTIN 00782001396084
Item Type Back-Up R-Rated Ferrule Mount Fuses for Motor Protection
Size 10.88 x 3
Type of Indicators Visual Indicator
Voltage Rating 2400
