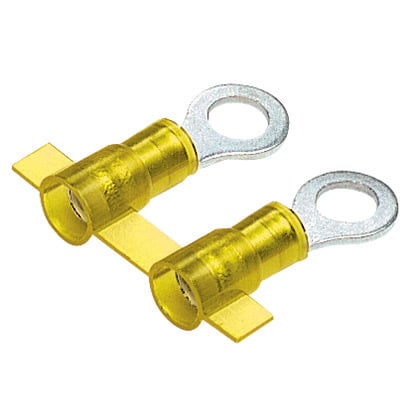

PNF10-14R-2K Reel Smart Type PNF-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- PNF10-14R-2K
- UPC:
- 074983811755
- Item #:
- 1371649
PNF10-14R-2K Reel Smart Type PNF-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Yellow
- MFR #:
- PNF10-14R-2K
- UPC:
- 074983811755
- Item #:
- 1371649
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.8341
each
The PNF10-14R-2K Reel Smart Terminal is a continuously molded, nylon insulated, ring terminal with funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals and Documentation
| Catalog Number | PNF10-14R-2K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-157) |
| UPC | 074983811755 |
| GTIN | 00074983811755 |
| Item Type | Ring Terminal |
| Size | 1/4" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
