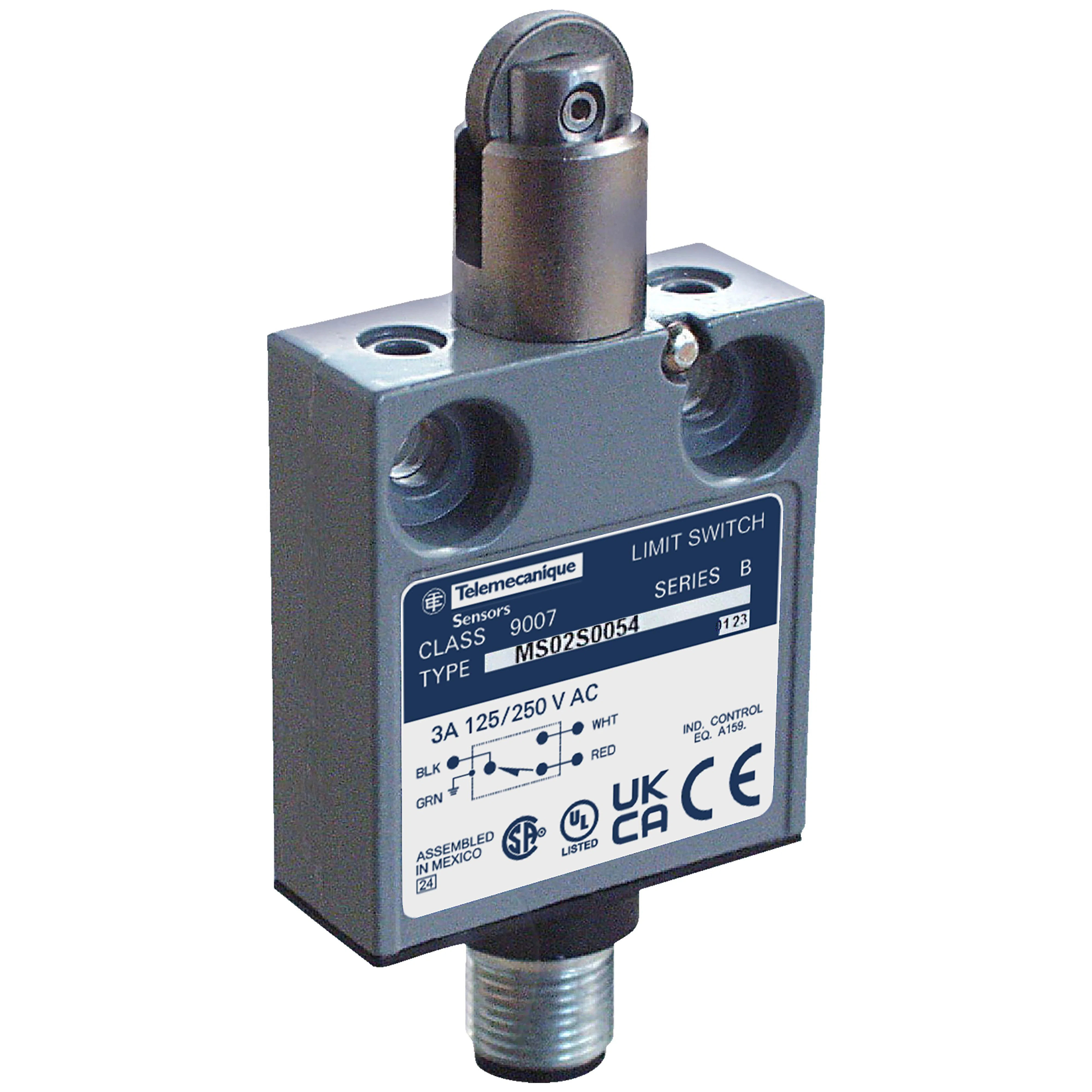

Limit switch, 9007, switch
- MFR:
- Schneider Electric
- MFR #:
- 9007MS02S0084
- UPC:
- 785901398967
- Item #:
- 137003
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$184.81
each
Square D™ Plunger Actuated Limit Switch, Miniature Potted Linear, Series: 9007MS/ML, 240 V AC/28 V DC, 3 A, 1NO-1NC Contact Configuration, 3 A at 240 V AC/5 A at 28 V DC Contact, 1 Pole, Cam/Snap/Lateral Action, Parallel Roller Plunger Spring Return Actuator, M12 Male Connection, NEMA 1/2/4/6/6P/12/13/IP67 Enclosure, Fixed Mounting, 1.56 in W x 0.62 in D x 1.75 in H Size, 10000000 Cycles Operating Cycles, -40 to 220 deg F Operating, Cast Zinc, Epoxy Powder Coated, Environmental Conditions: -40 to 220 deg F Storage Temperature
Manuals and Documentation
Features
- Linear movement of operating head
- Form C, snap action silver contacts
- 5 A 28 VDC, 3 A 120 VAC, 3 A 240 VAC
| Manufacturer Part Number | 9007MS02S0084 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901398967 |
| EAN | 0785901398967 |
| Country Of Origin | MX |
| Amperage Rating | 3 A |
| Enclosure Type | NEMA 1/2/4/6/6P/12/13/IP67 |
| Finish | Epoxy Powder Coated |
| Material | Cast Zinc |
| Mounting Type | Fixed |
| Series | 9007MS/ML |
| Type | Miniature Potted Linear |
| Voltage Rating | 240 V AC/28 V DC |
| Size | 1.56 in W x 0.62 in D x 1.75 in H |
| Alternative Part Number | 8026812 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | CE Marked | CENELEC | CSA C22.2 File No. 14 | EN 50041/EN 609475-1 | EN 60204-1 | IEC 60204-1/609475-1 | IEC 60068-2-6 | IEC 60068-2-27 | IEC 60529 | RoHS Compliant | UL 508 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Material Working, Packaging, Materials Handling, Conveying, Food, Beverage, Mining, Mineral Constructions, Oil and Gas, Crane/Hoisting, Mill and Foundry Applications |
| Action | Cam/Snap/Lateral |
| Actuator | Roller Plunger |
| Connection Type | M12 Male |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 3 A at 240 V AC/5 A at 28 V DC |
| Environmental Conditions | -40 to 220 deg F Storage Temperature |
| Number Of Poles | 1 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -40 to 220 deg F |
