Appleton

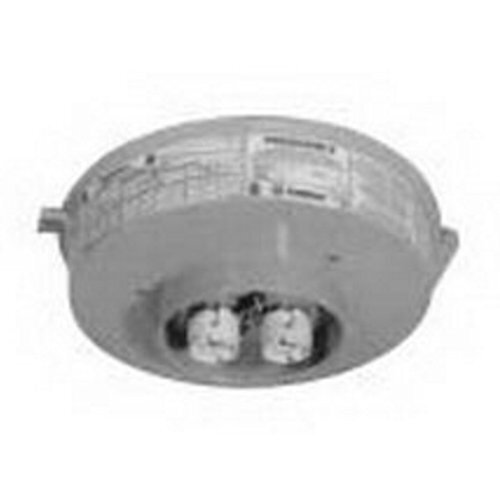

Mercaster; III Electronic Fluorescent Ballast Body; 120 - 277 Volt, 42 Watt, 1-Lamp

MFR:
Appleton Electric
MFR #:
MLBG42FBU
UPC:
781381876407
Item #:
136432

Availability

Location Available Qty
Available Available to Order
$1,511.84 each

Mercmaster III ML Series Ballast Body, Lamp Type: 42 WTT 3200 LM 82 CRI 10000 HR PL-T Fluorescent (Not Included), Lamp Wattage: 42 WTT, Voltage Rating: 120 - 277 V, 125 VDC, Number Of Lamps: 1, Material: Die-Cast Copperfree (4/10 Of 1 P

Manuals and Documentation
Catalog Number MLBG42FBU
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Glass Globe Or Polymeric Refractor
Lamp Type 42 WTT 3200 LM 82 CRI 10000 HR PL-T Fluorescent (Not Included)
Material Die-Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Guard, Stainless Steel Hardware And Latch Assembly
Special Features Compact fluorescent lamps provide superior energy efficiency and long lamp life thereby reducing relamping costs; Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection; compact fluorescent light sources possess superior lamp efficiency; Fluorescent provides long lamp life, thereby reducing relamping costs; Instant on nature of this electronically ballasted fluorescent eliminates the possibility of an extended blackout due to a momentary power dip; High output under widely varying conditions; Electronic ballast permits low operating costs with power factor greater than 99 PCT; Compact, light-weight low profile design creates ease of installation and maintenance; Body gaskets and optic gaskets are high temperature silicone o-Rings that provide superior sealing; Mounting hoods have a high hinge for added safety during installation and servicing; Enclosed and gasketed fixtures suitable for use in marine and wet locations and in a wide range of industr
Standard Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z) - CSA, Class II, Division 1 And 2, Groups E, F, G, Class III; UL 1598, 1598A, 844, 60079-0, 60079-15, E10444; CSA C22.2 No.250, C22.2 No.137, E60079-0, E60079-15, 025428
UPC 781381876407
GTIN 00781381876407
Item Type ML Series Ballast Body
Voltage Rating 120 - 277 V, 125 VDC
